Power Window Control Module: Locations

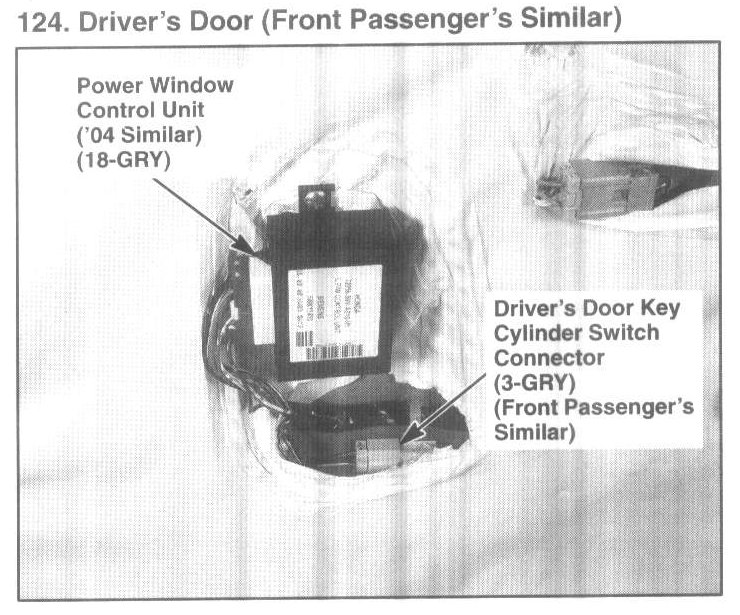

124. Driver's Door (Front Passenger's Similar):

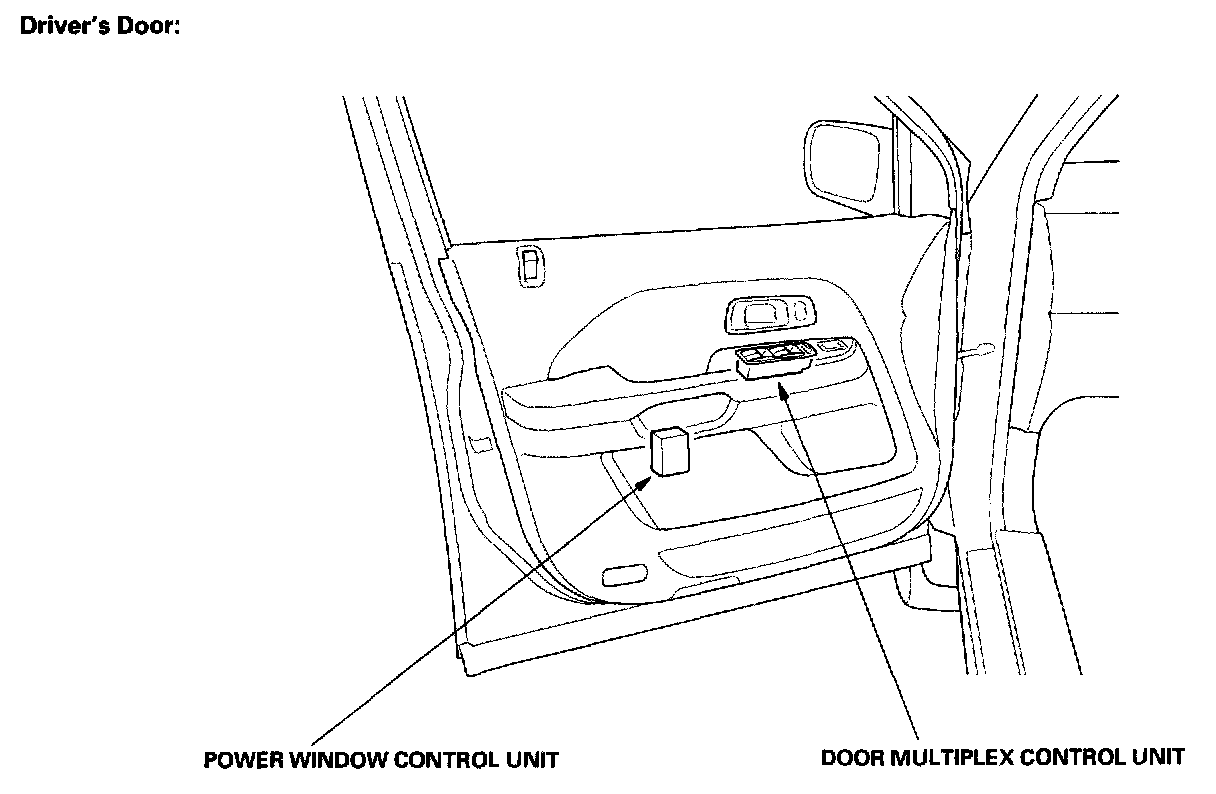

Relay And Control Unit Locations - Door And Seat:

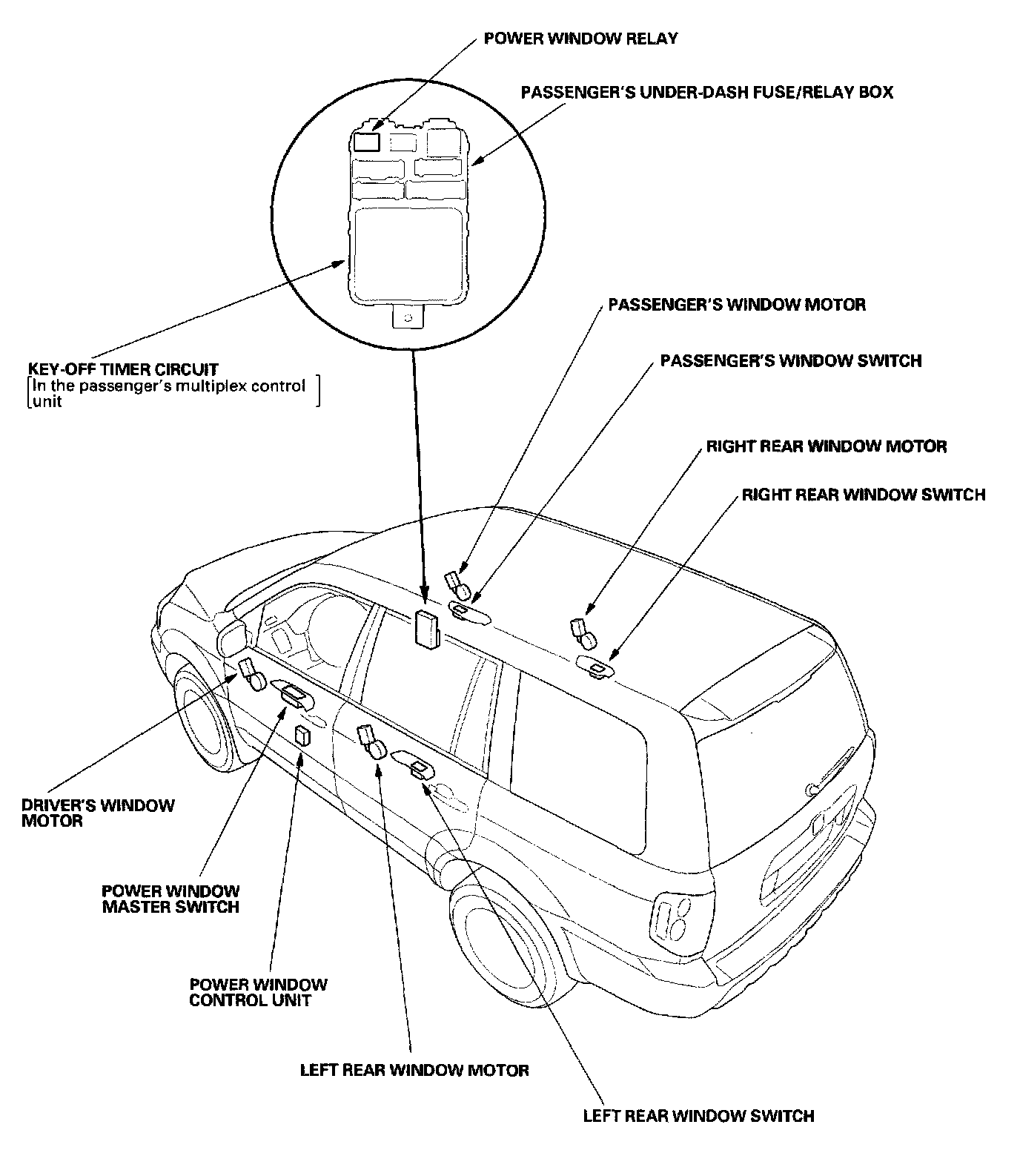

Power Windows Component Location Index:
