System Diagram

(EX-L: RES (DVD)):

(EX-L: RES (DVD)):

(EX-L: RES (DVD)):

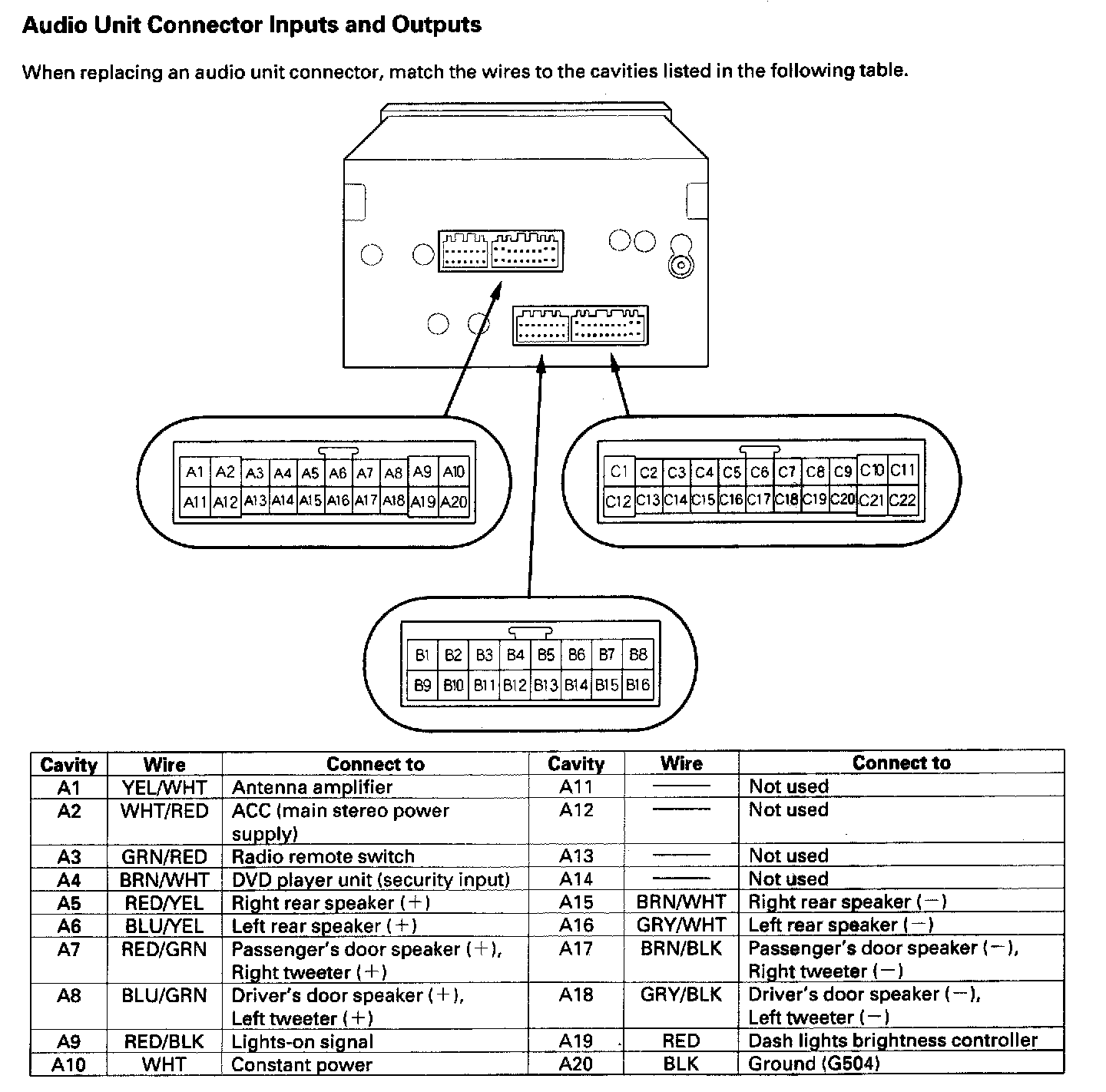

Audio Unit Connector Inputs And Outputs Part 1:

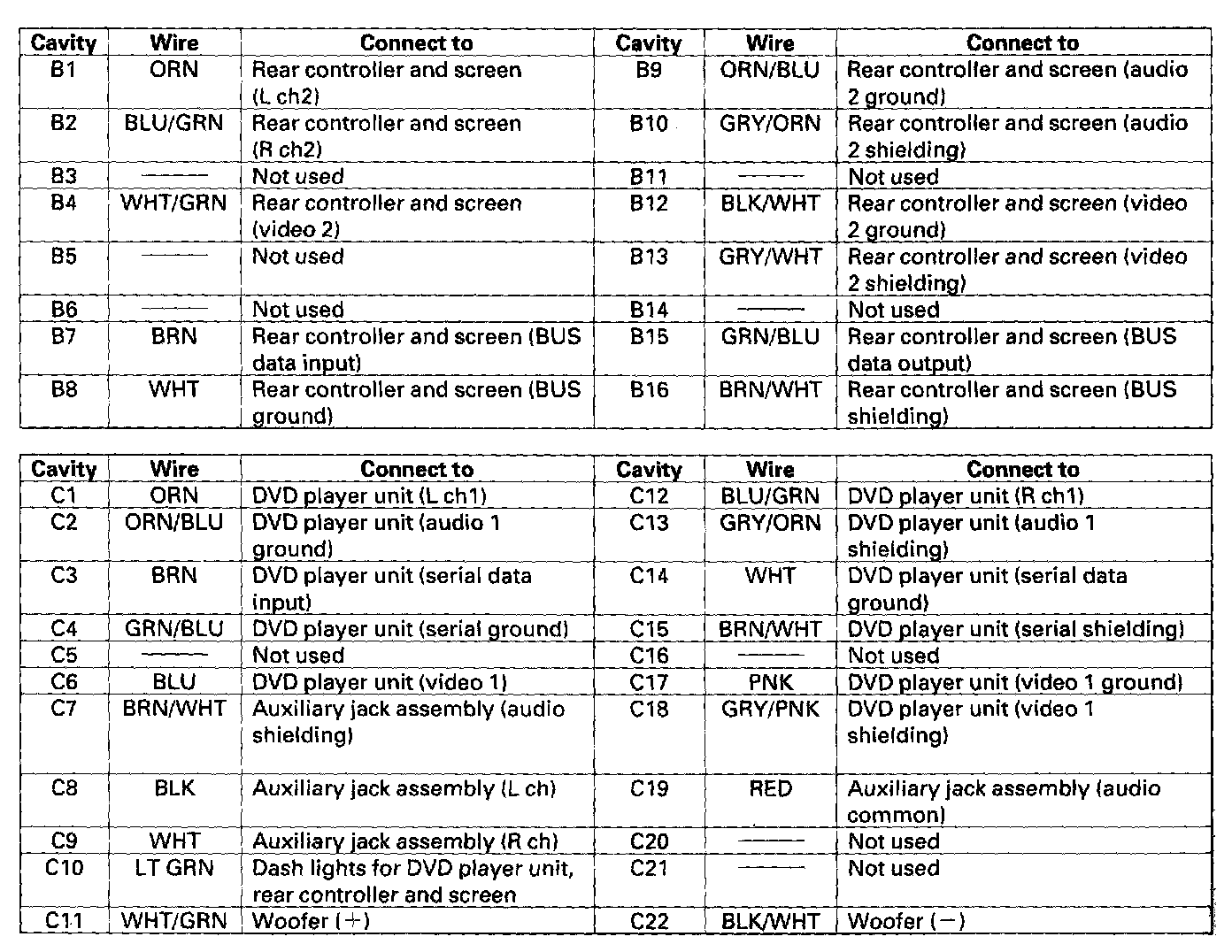

Audio Unit Connector Inputs And Outputs Part 2:

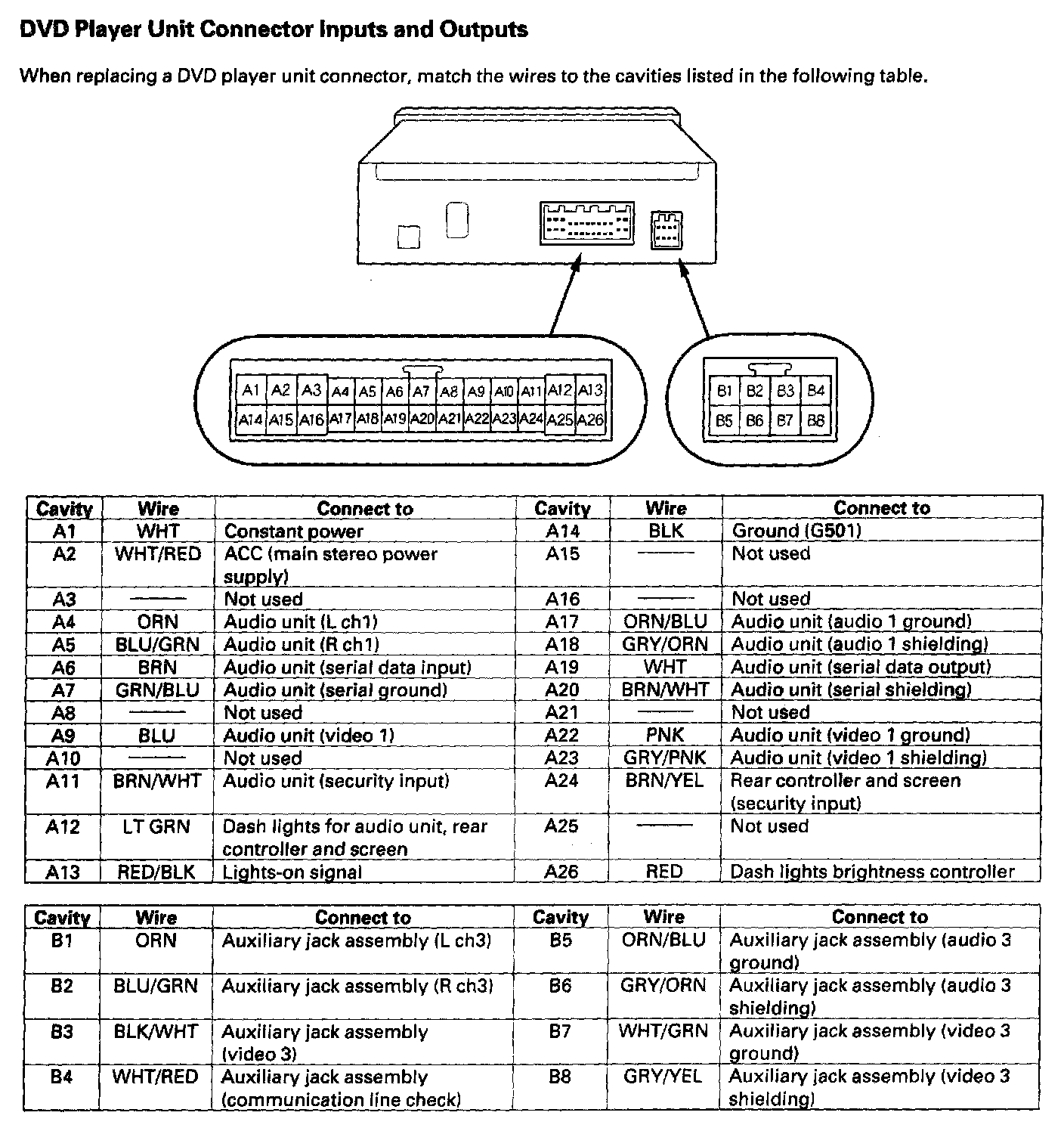

DVD Player Unit Connector Inputs And Outputs:

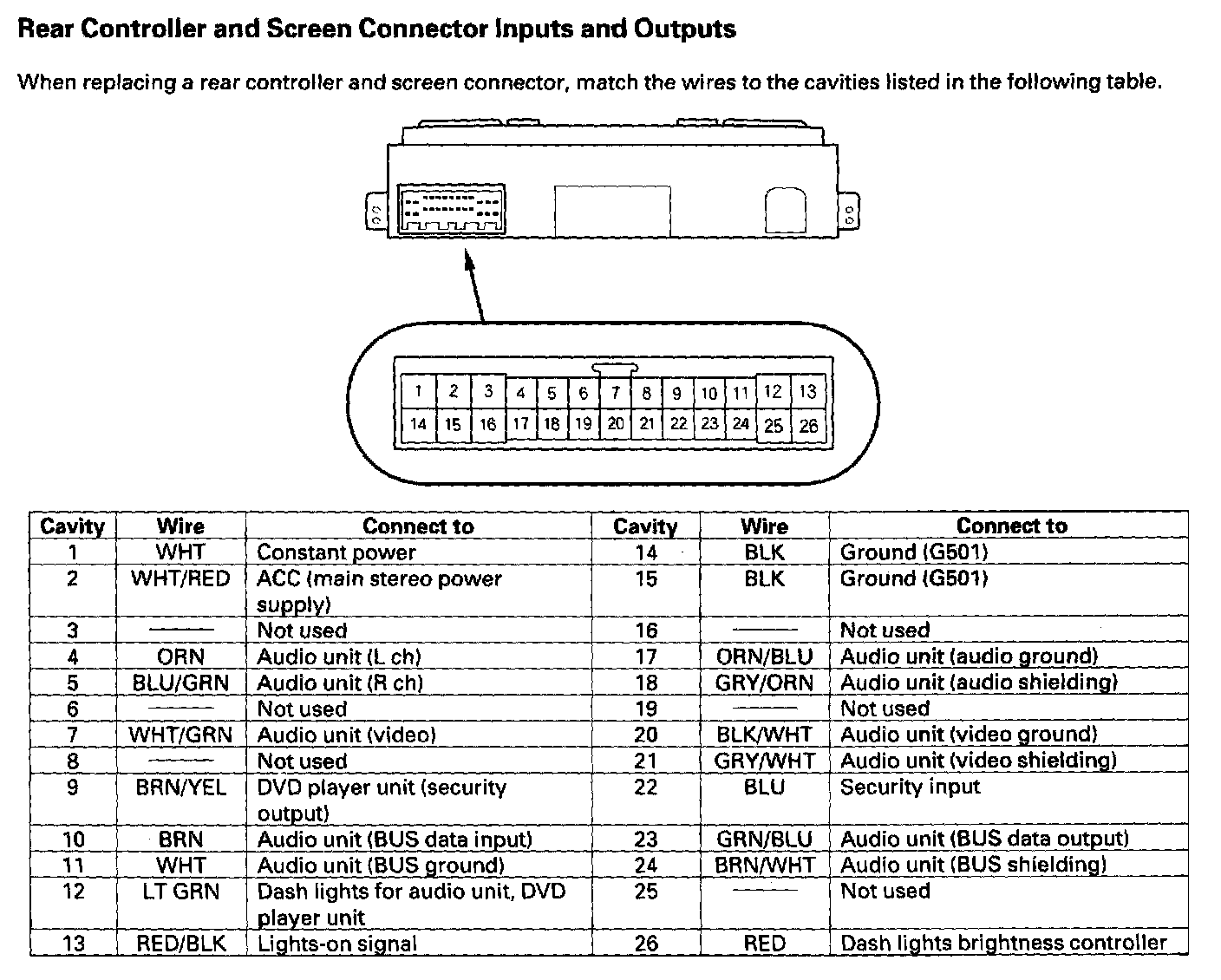

Rear Controller And Screen Connector Inputs And Outputs:

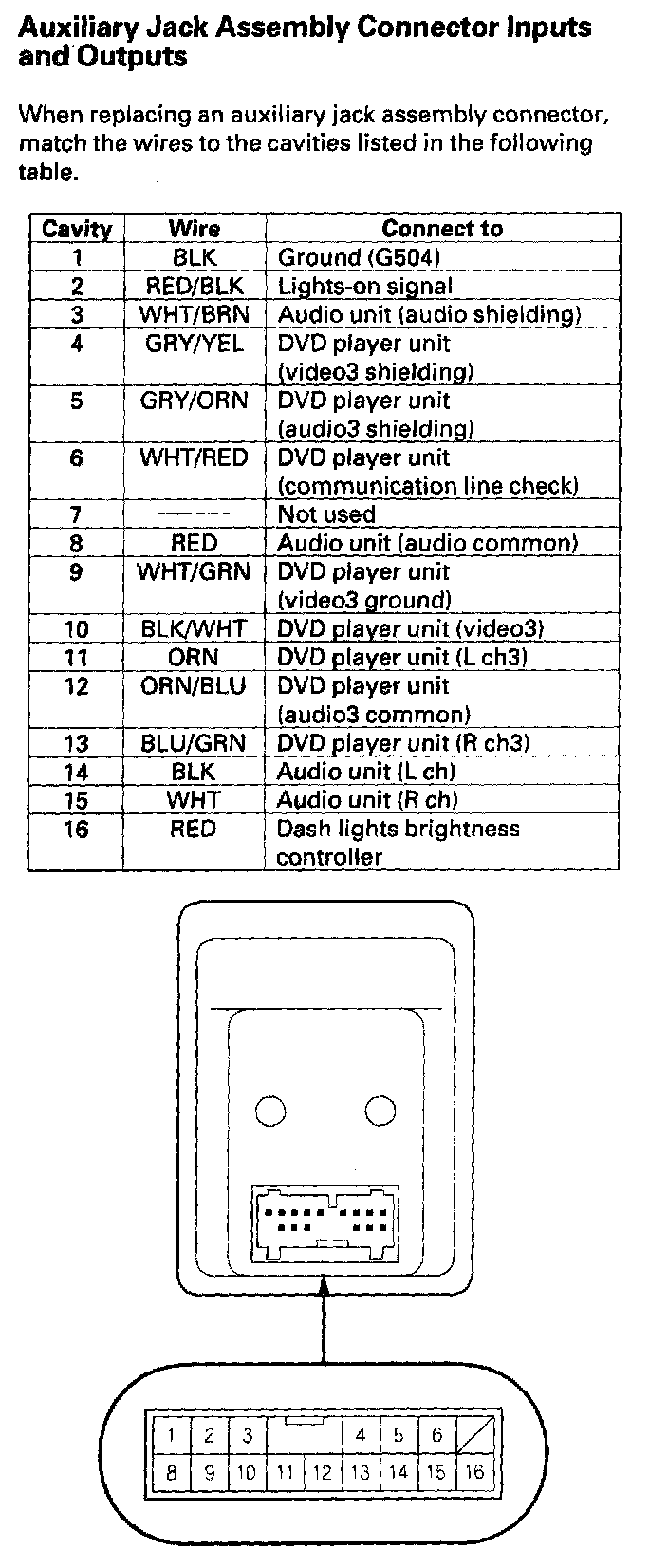

Auxiliary Jack Assembly Connector Inputs And Outputs:
