PCM Circuit Diagrams

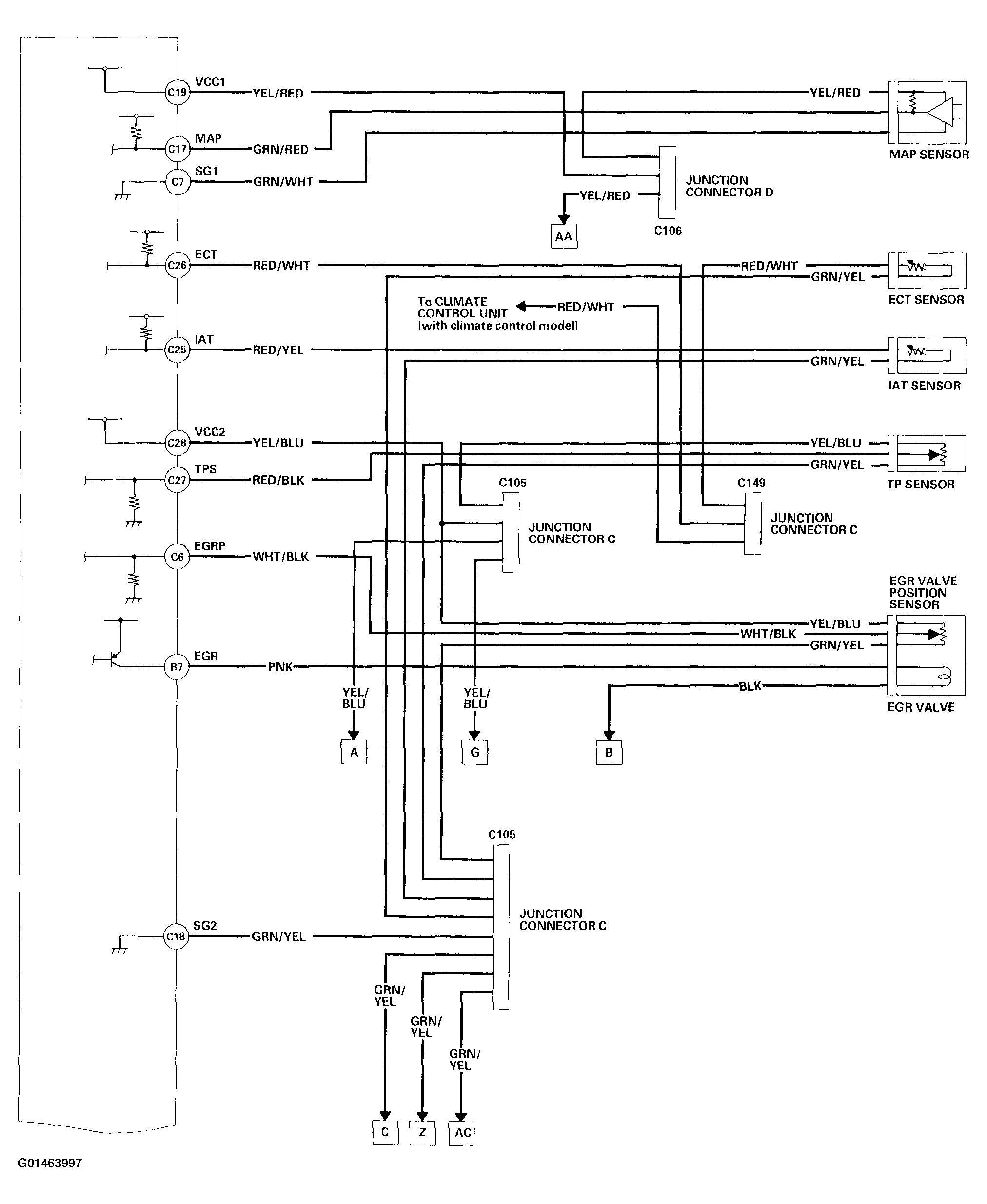

Fig 1: PCM Circuit Diagrams (1 Of 11)

G01463997

Courtesy of AMERICAN HONDA MOTOR CO., INC.

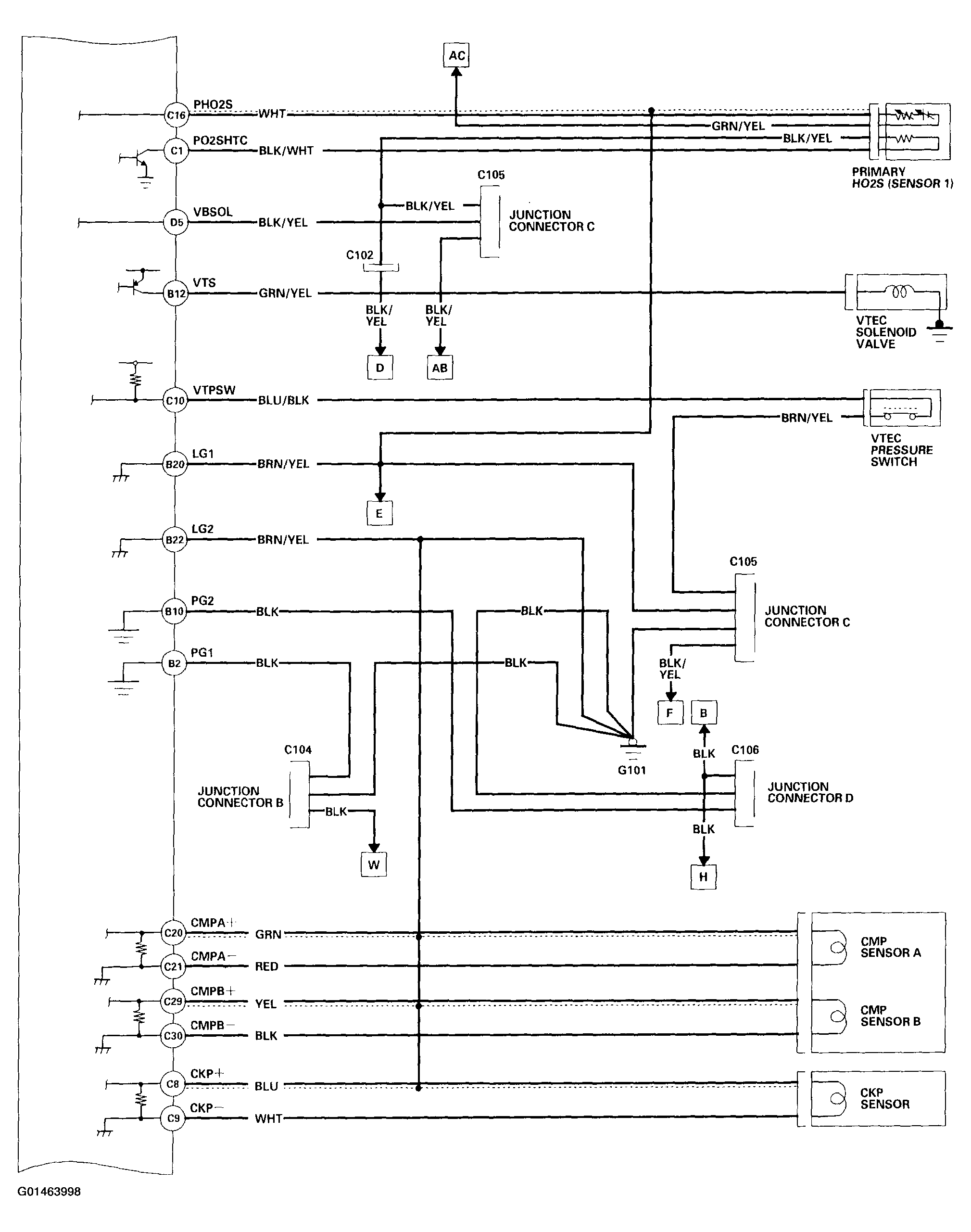

Fig 2: PCM Circuit Diagrams (2 Of 11)

G01463998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: PCM Circuit Diagrams (3 Of 11)

G01463999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

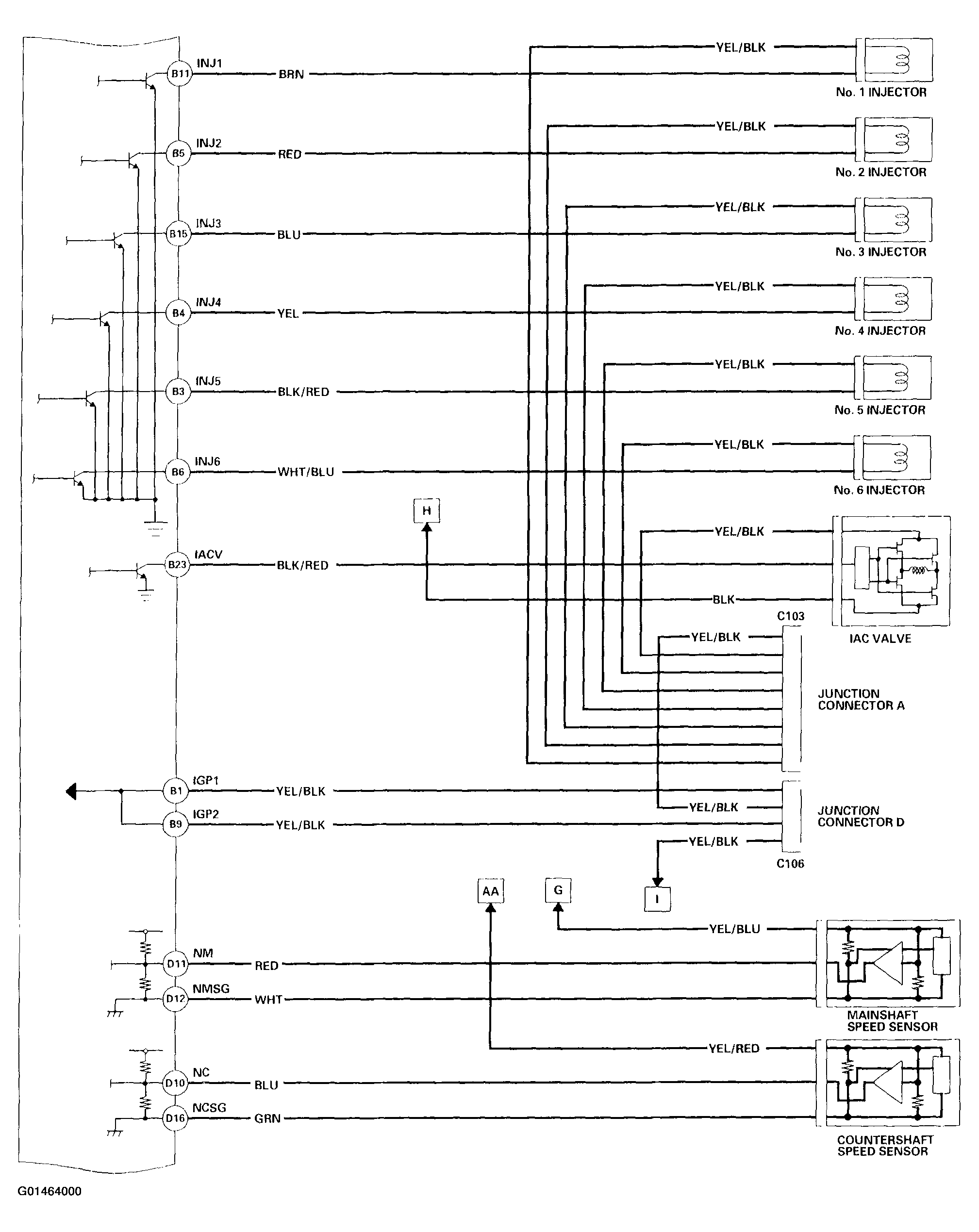

Fig 4: PCM Circuit Diagrams (4 Of 11)

G01464000

Courtesy of AMERICAN HONDA MOTOR CO., INC.

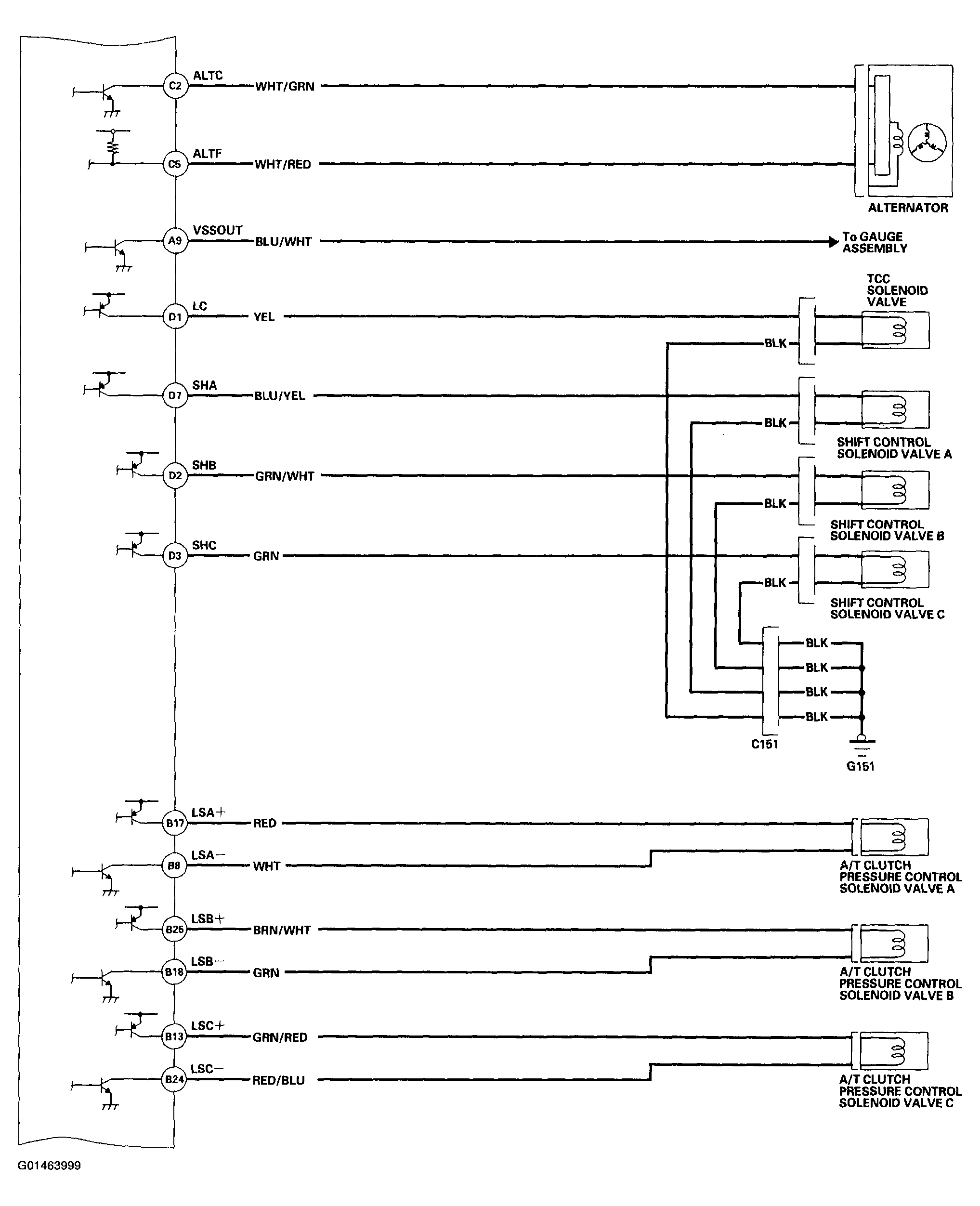

Fig 5: PCM Circuit Diagrams (5 Of 11)

G01464001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

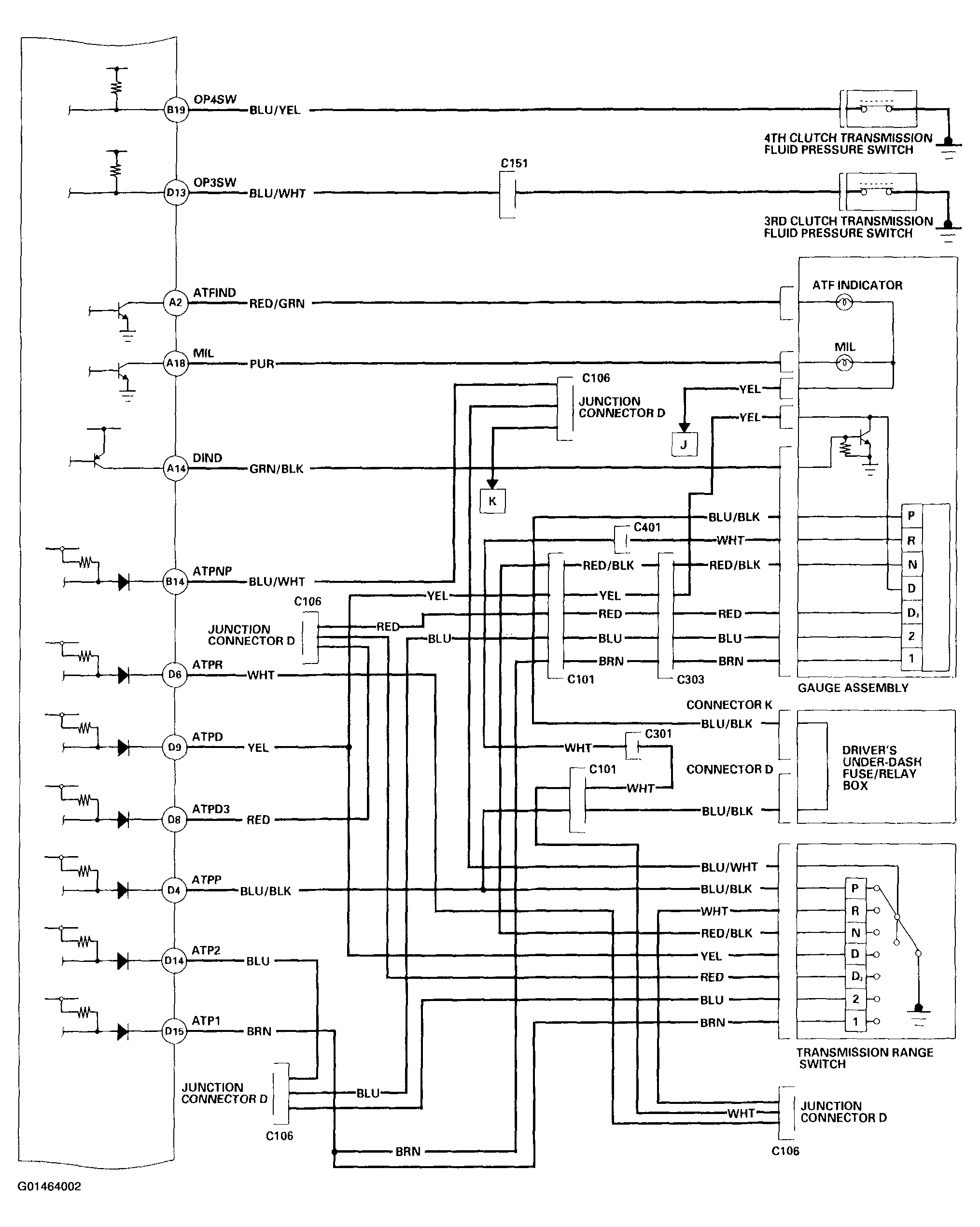

Fig 6: PCM Circuit Diagrams (6 Of 11)

G01464002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

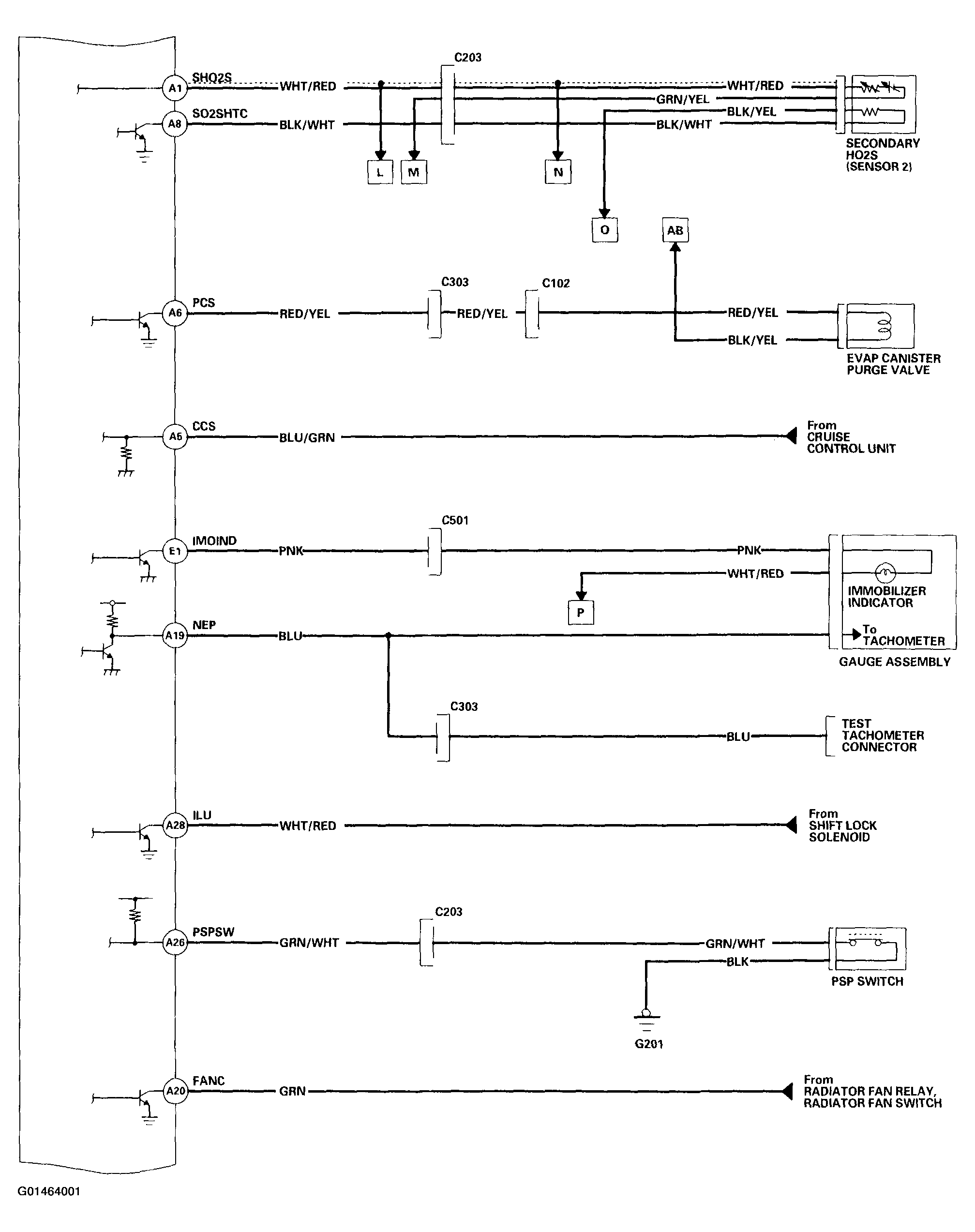

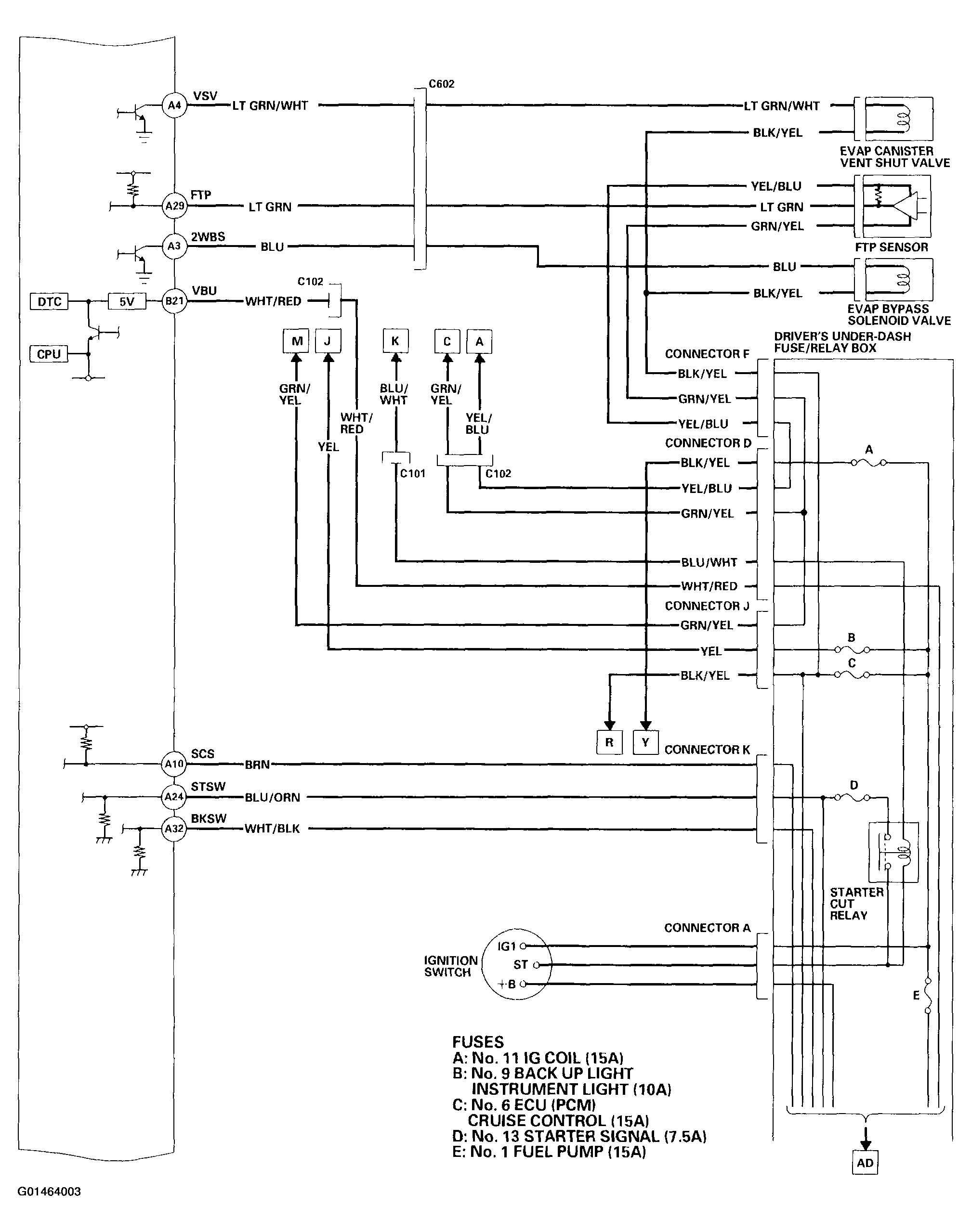

Fig 7: PCM Circuit Diagrams (7 Of 11)

G01464003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

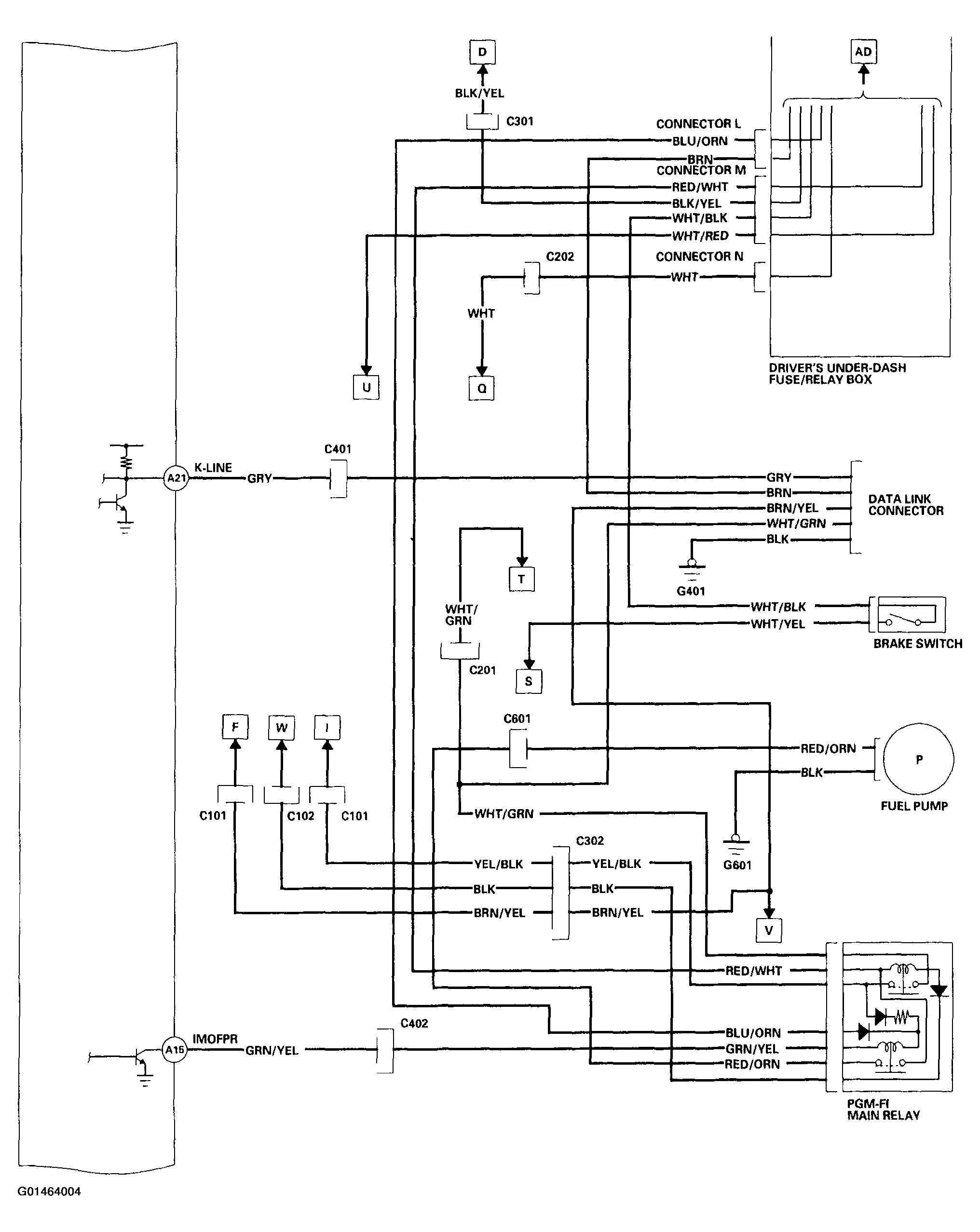

Fig 8: PCM Circuit Diagrams (8 Of 11)

G01464004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

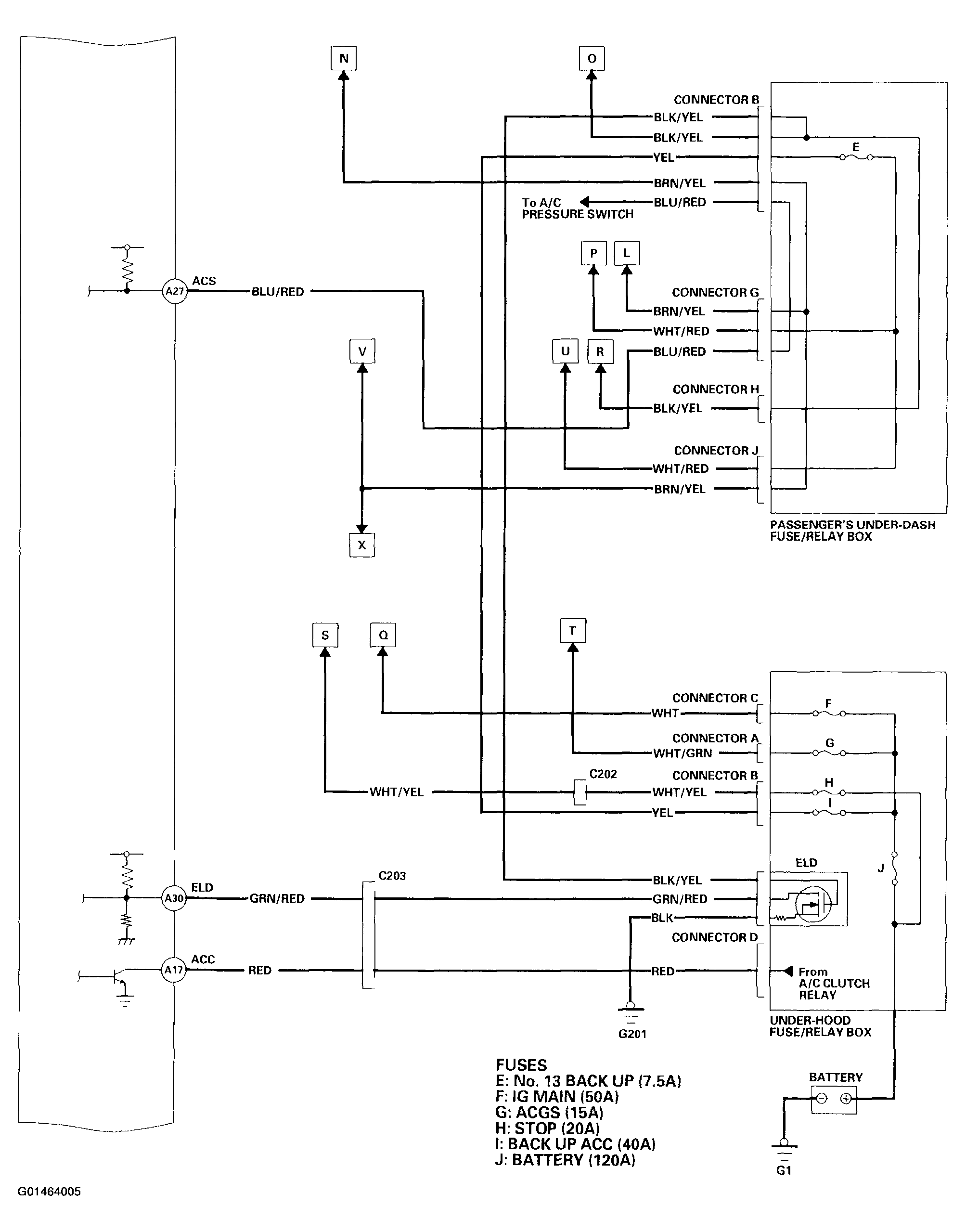

Fig 9: PCM Circuit Diagrams (9 Of 11)

G01464005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

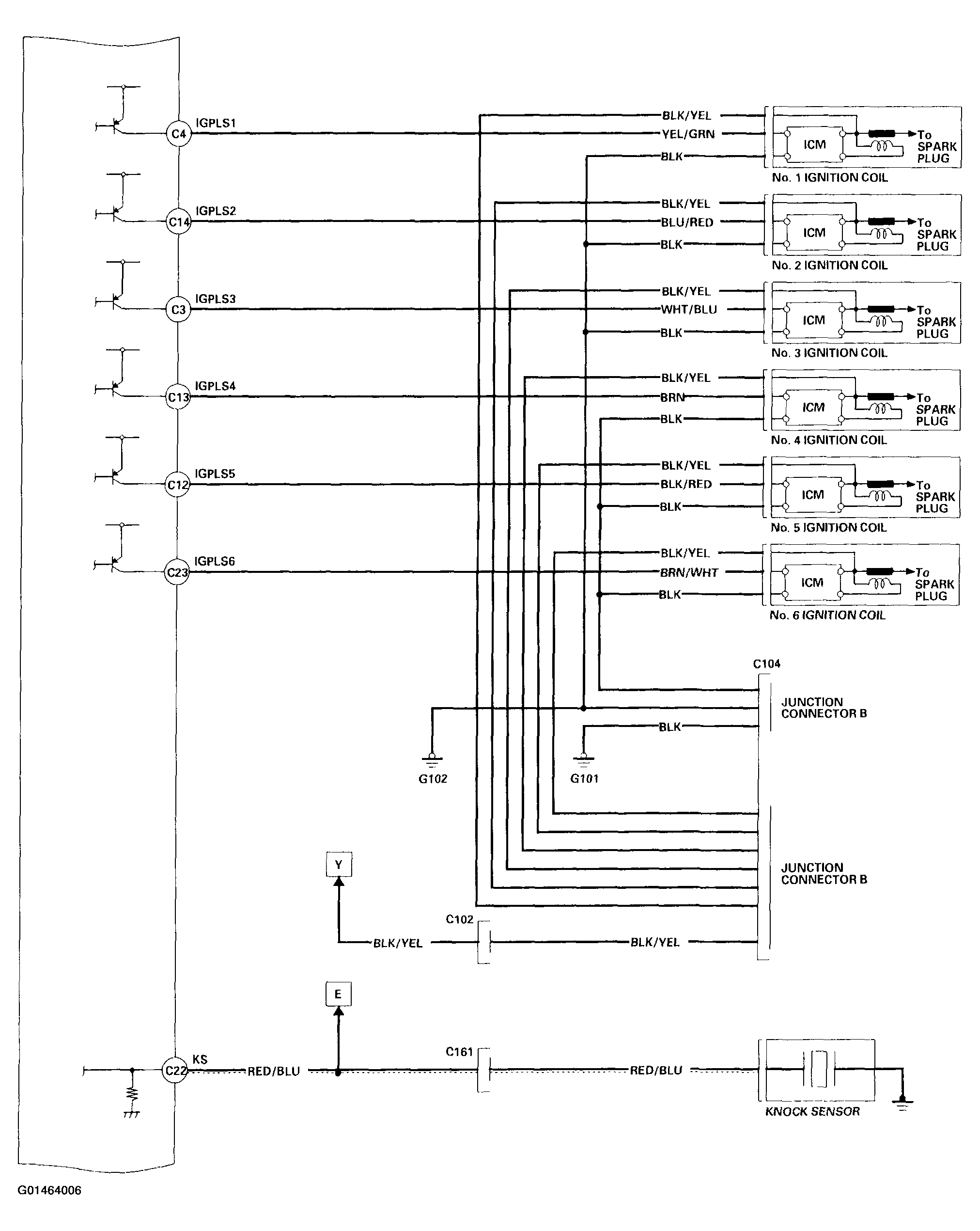

Fig 10: PCM Circuit Diagrams (10 Of 11)

G01464006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

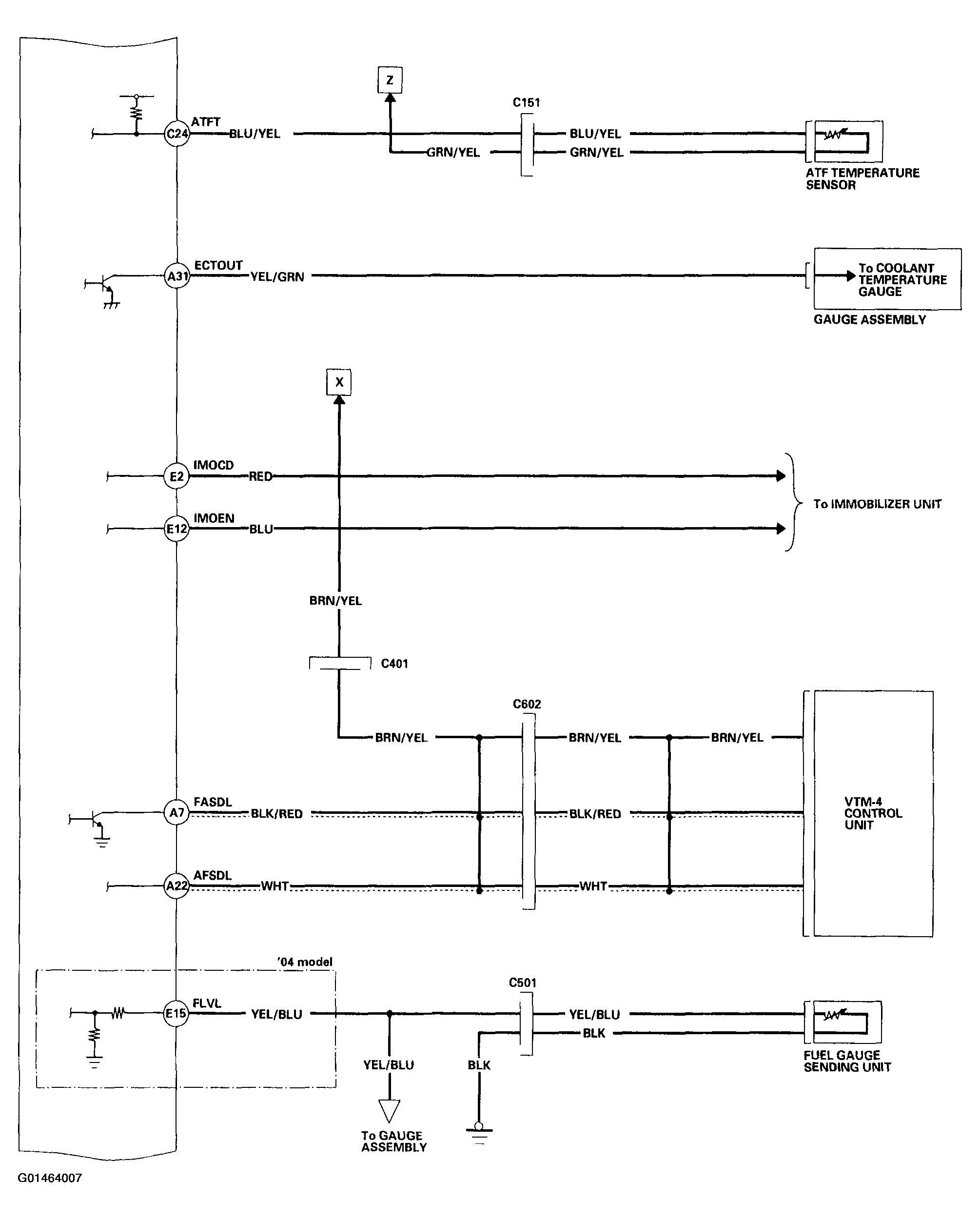

Fig 11: PCM Circuit Diagrams (11 Of 11)

G01464007

Courtesy of AMERICAN HONDA MOTOR CO., INC.
