Alternator & Regulator Circuit Test
For alternator and regulator circuit test, see
Fig 1
.

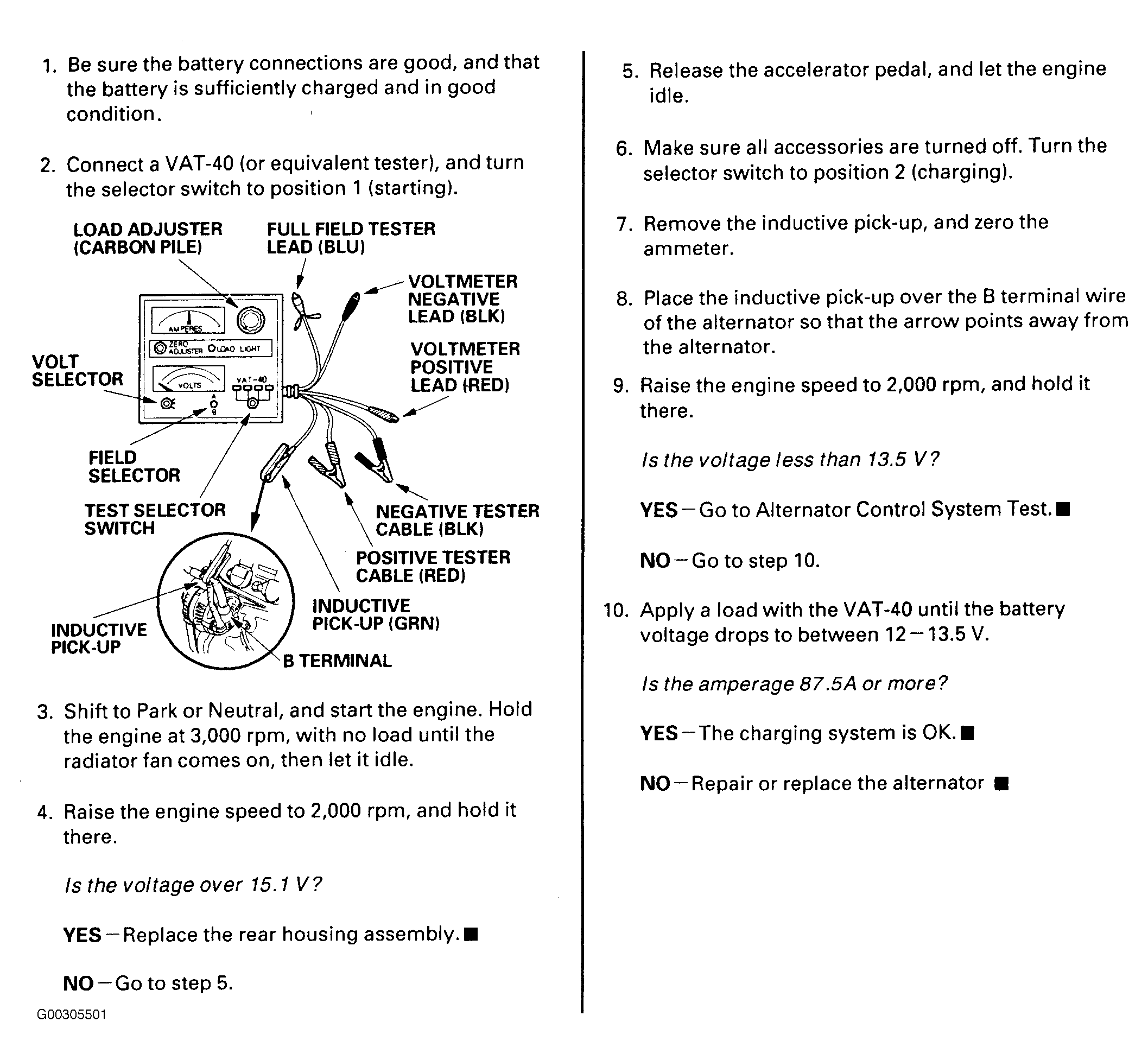

Fig 1: Alternator And Regulator Circuit Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
