Rear Door Glass Outer Weatherstrip Replacement
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the door and molding.

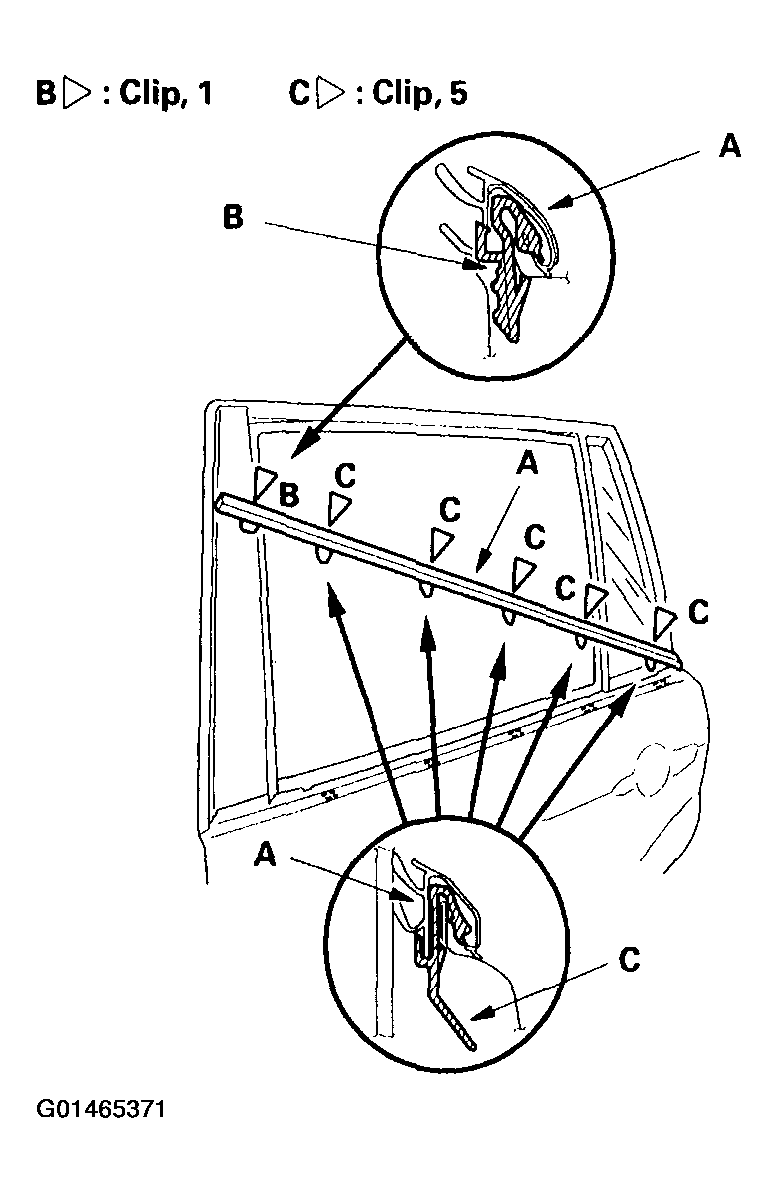

- Starting at the front, pry the door glass outer weatherstrip (A) up to detach the clip (B).
- Detach the clips (C), then remove the weatherstrip.
- Install the outer weatherstrip in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
- Make sure the end of the outer weatherstrip is attached to the quarter glass seal securely.
