Home >> Honda >> 2004 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

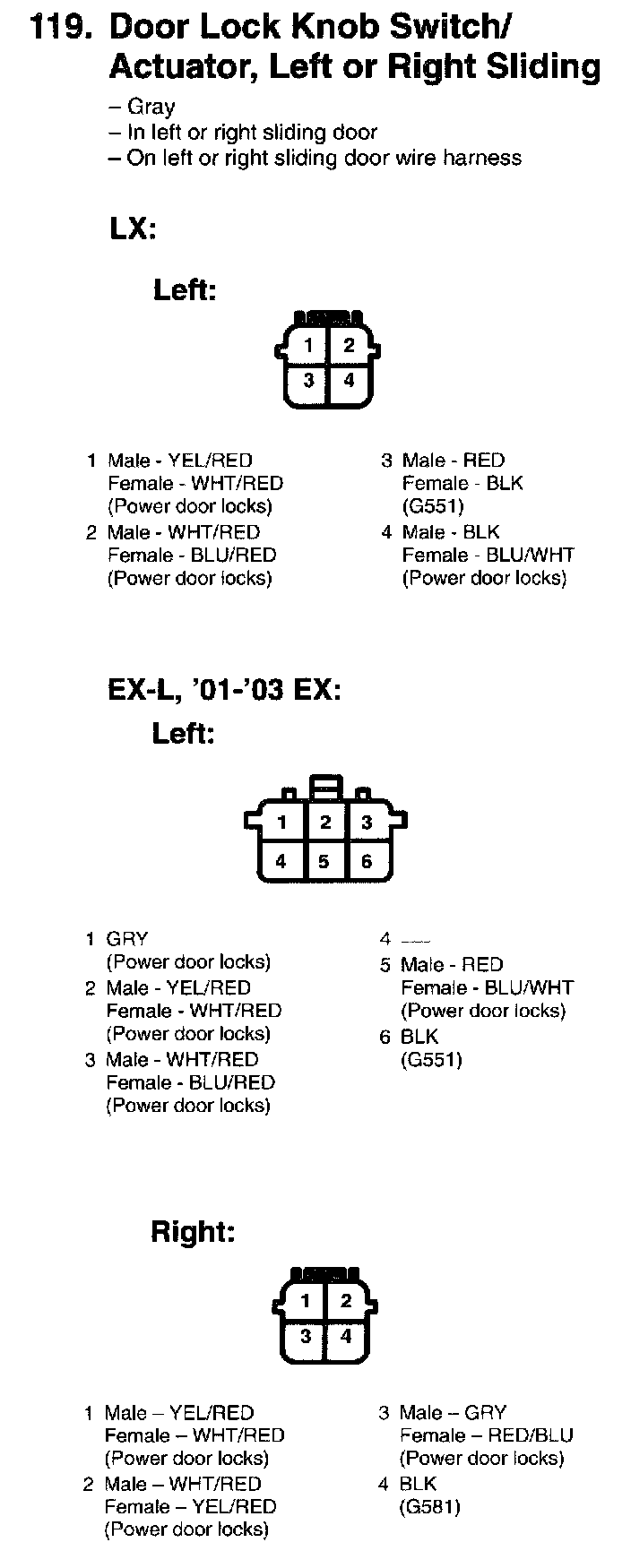

Power Door Lock Switch
















(EX-L, 01-03 EX):




(EX-L And EX):
