C410 (CVT) Connector End View

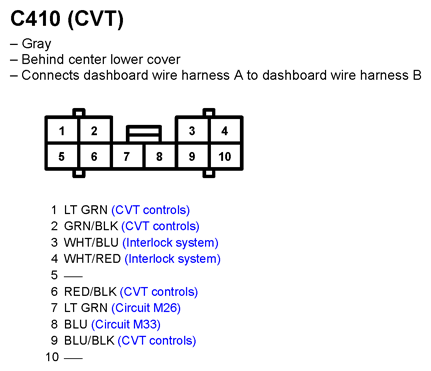

Fig 1: C410 (CVT) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
