Door Lock Knob Switch Test

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 3P connector (A) from the driver's door lock actuator (B).

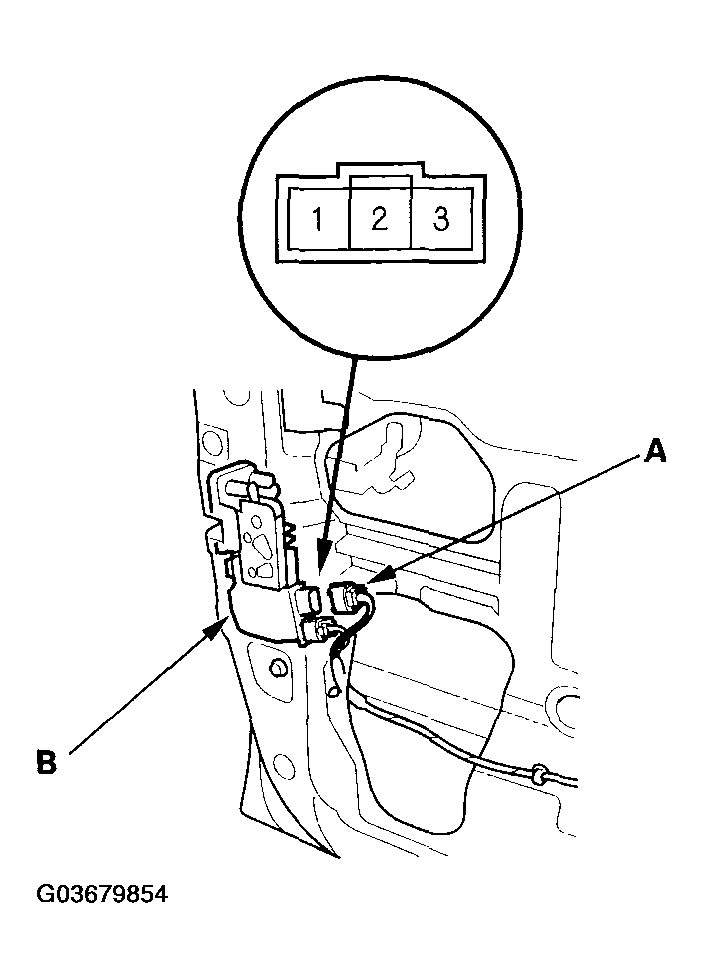

    Fig 1: Disconnecting 3P Connector From Driver's Door Lock Actuator And Connector Location
    G03679854Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.

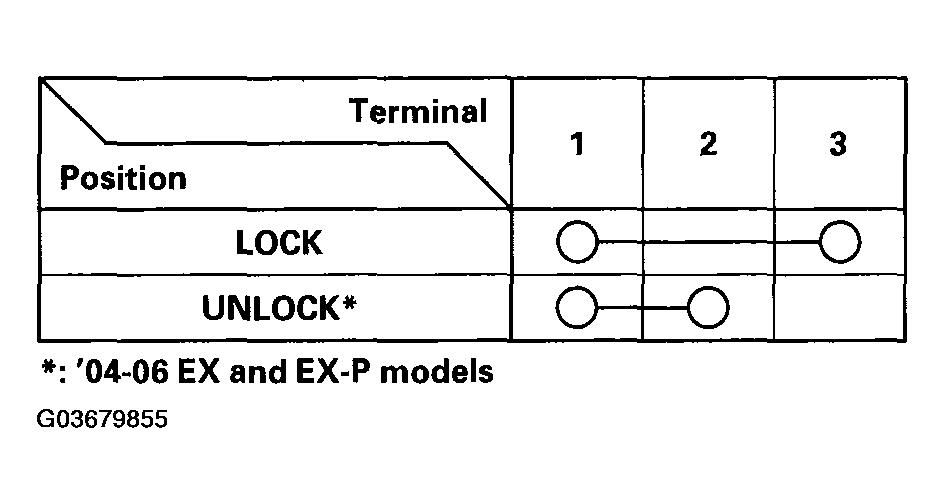

    Fig 2: Switch Terminals Position Description Table
    G03679855Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the driver's door lock actuator.
