Frame Brace Replacement

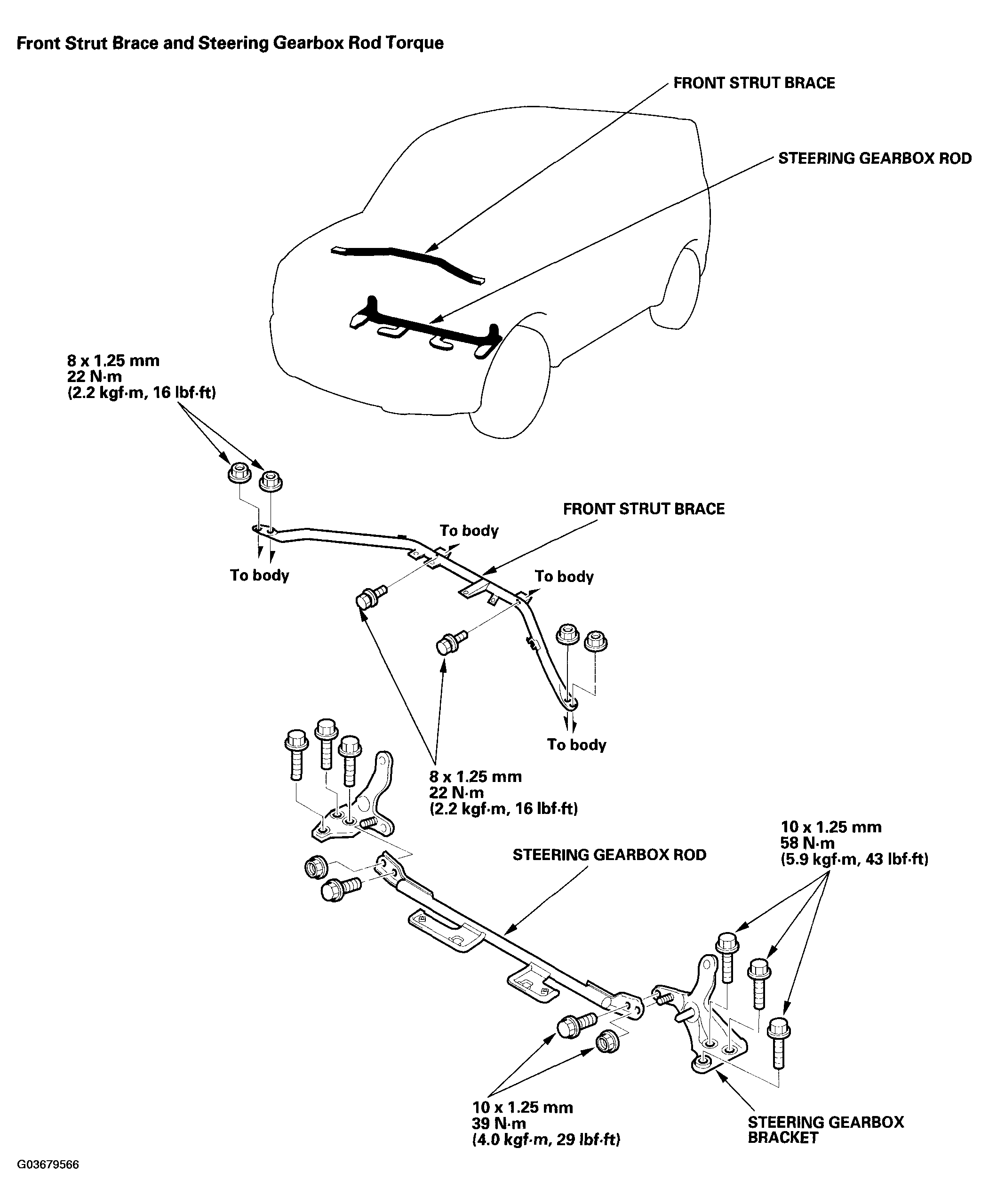

Fig 1: Replacing Frame Brace & Torque Specifications

G03679566

Courtesy of AMERICAN HONDA MOTOR CO., INC.
