Power Window Control Module: Locations

Doors - Component Location Index (Front Door):

Power Window Control Module: Locations

Doors - Component Location Index (Front Door):

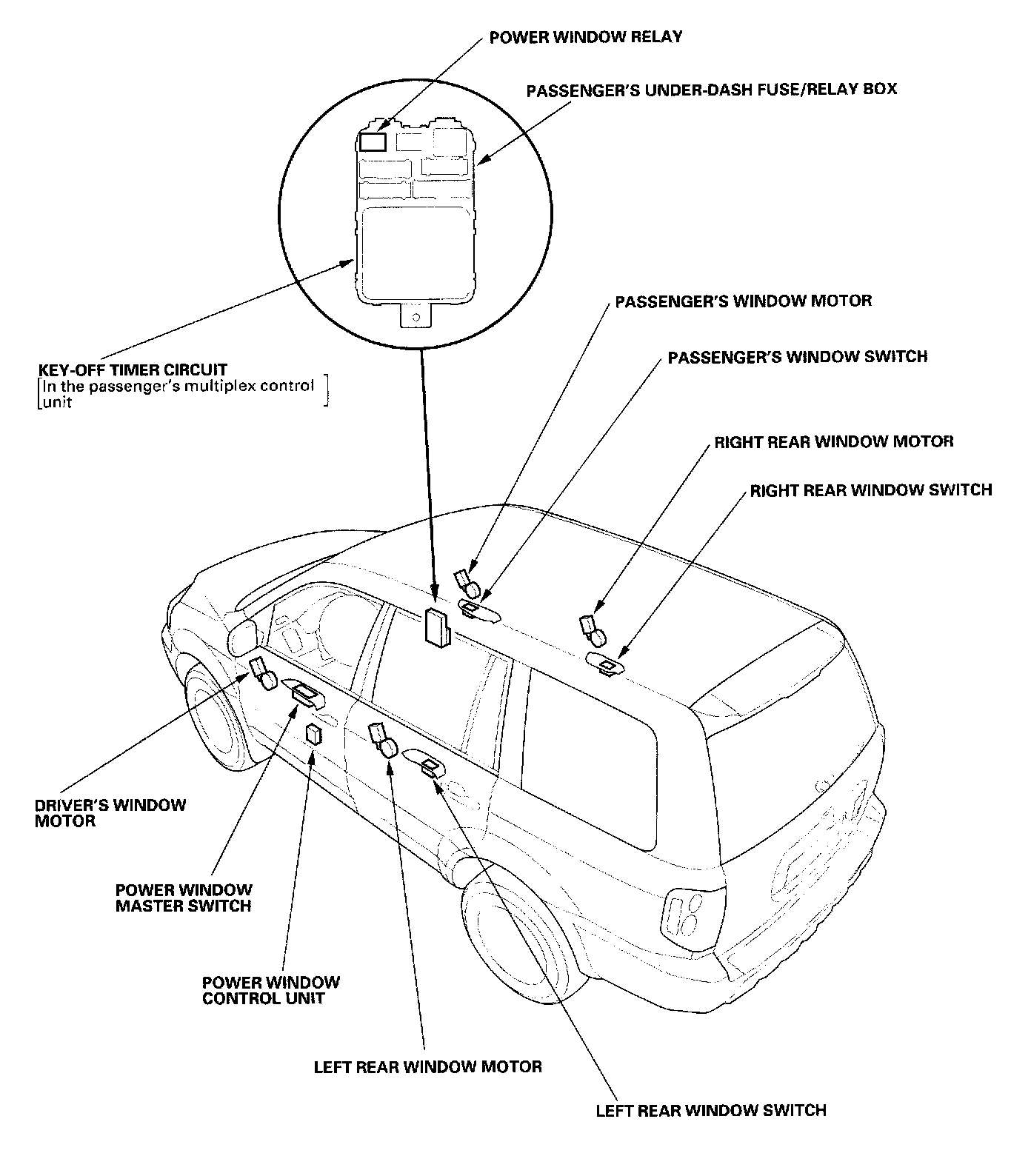

Power Windows Component Location Index:

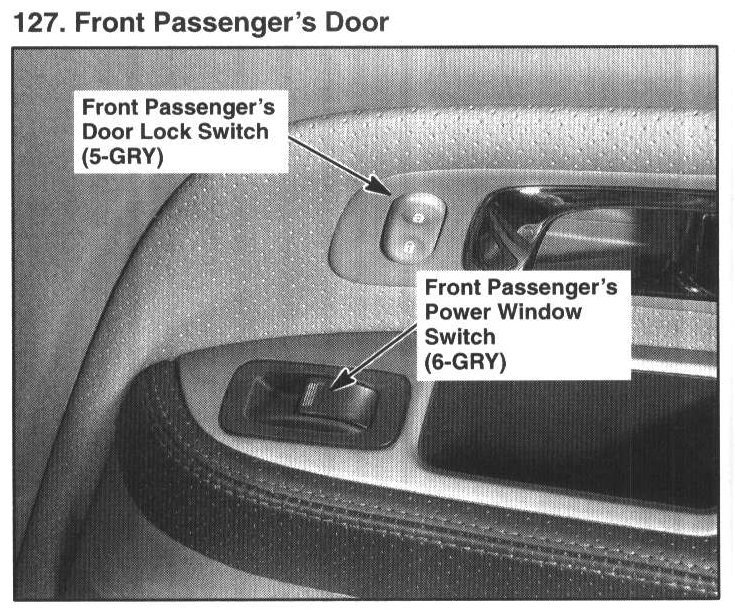

127. Front Passenger's Door:

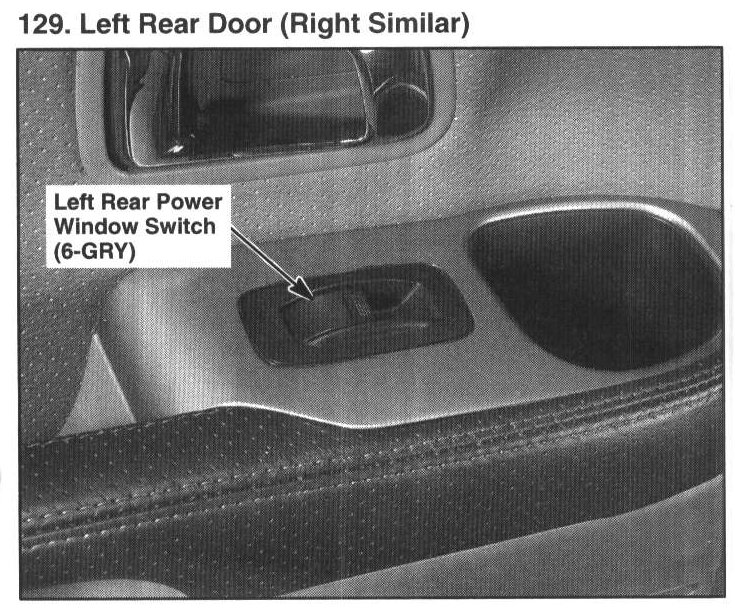

129. Left Rear Door (Right Similar):

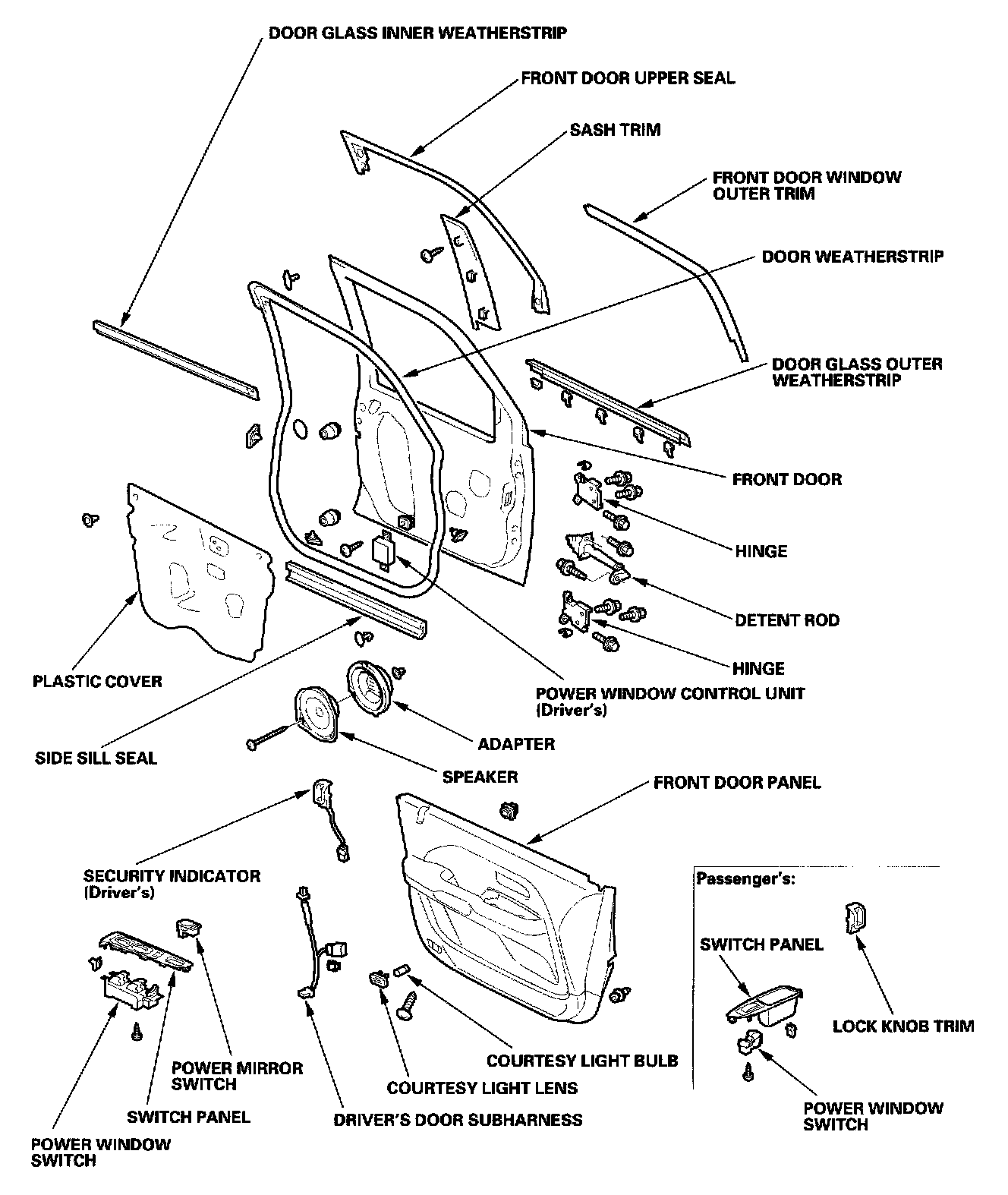

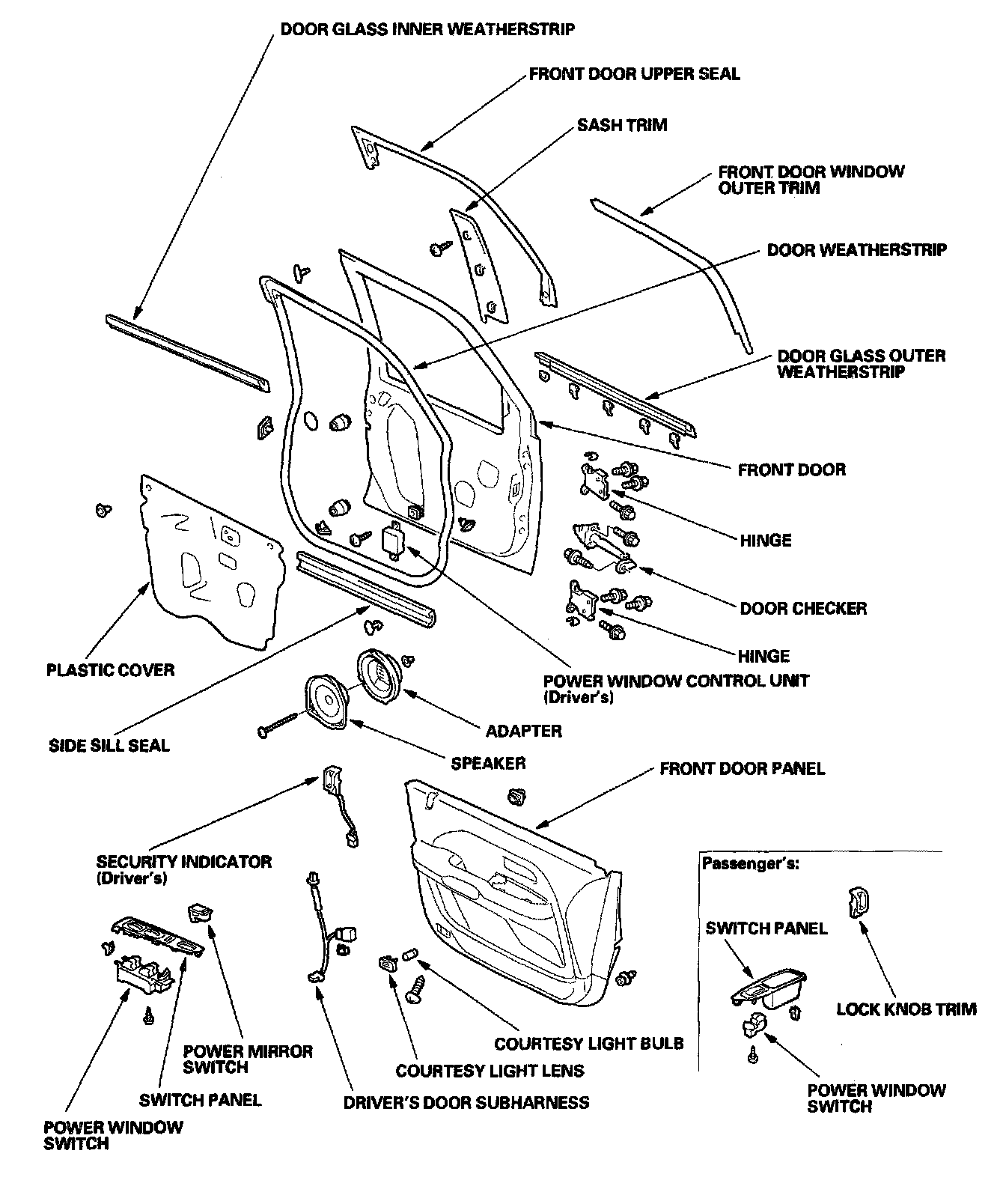

Front Door Component Location Index:

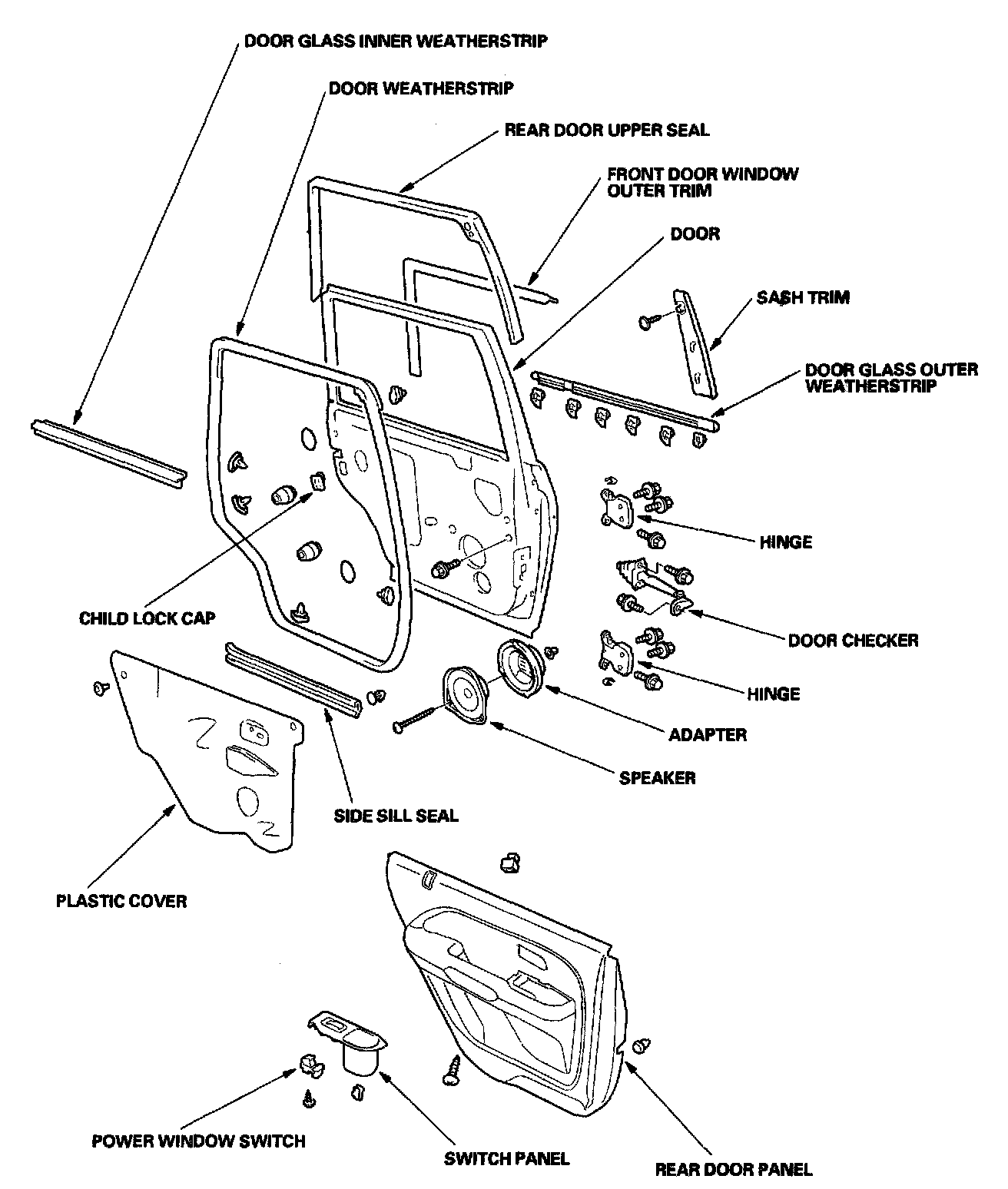

Rear Door Component Location Index:
