Pinout Values and Diagnostic Parameters

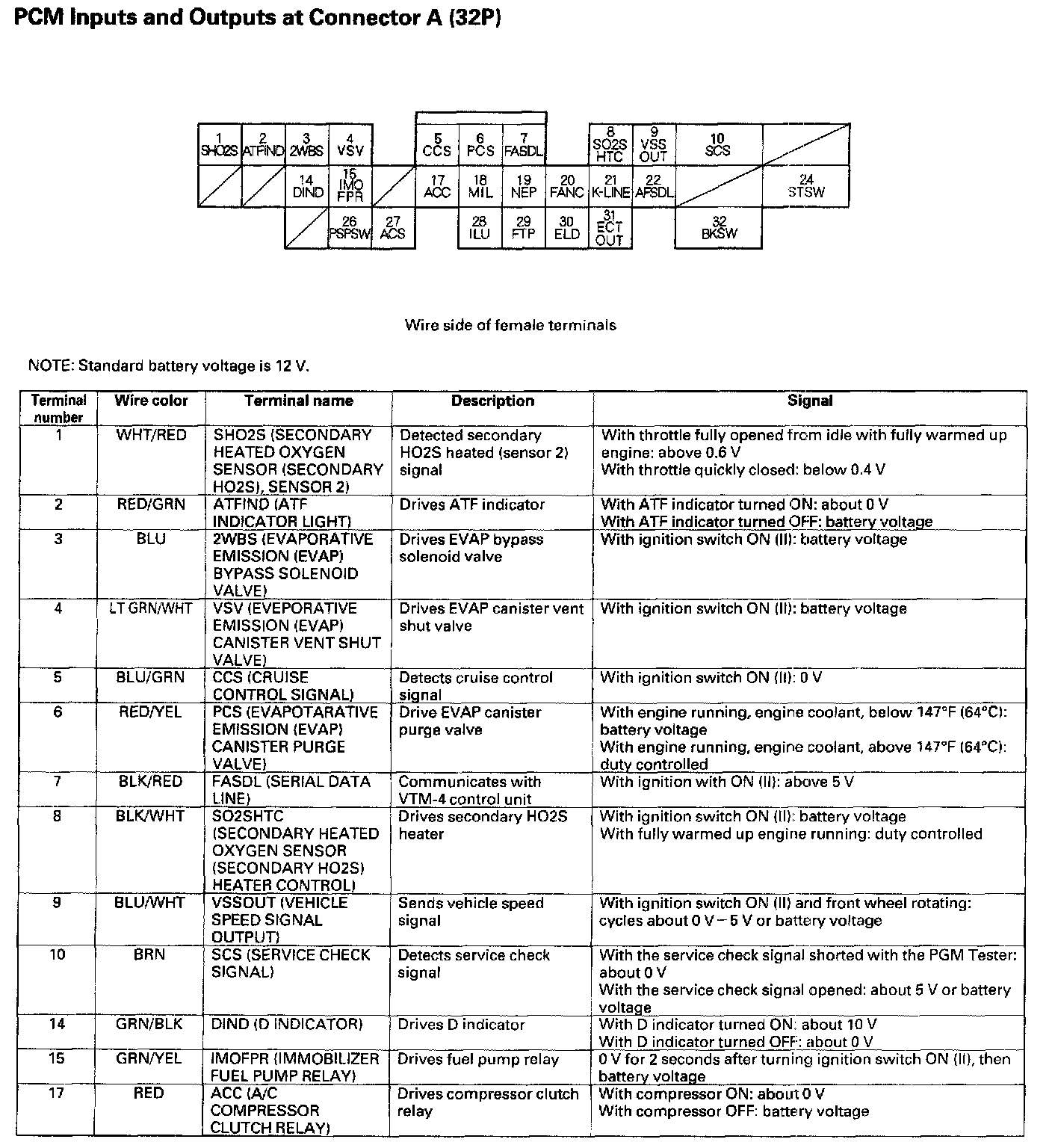

PCM Inputs And Outputs At Connector A (32P) Part 1:

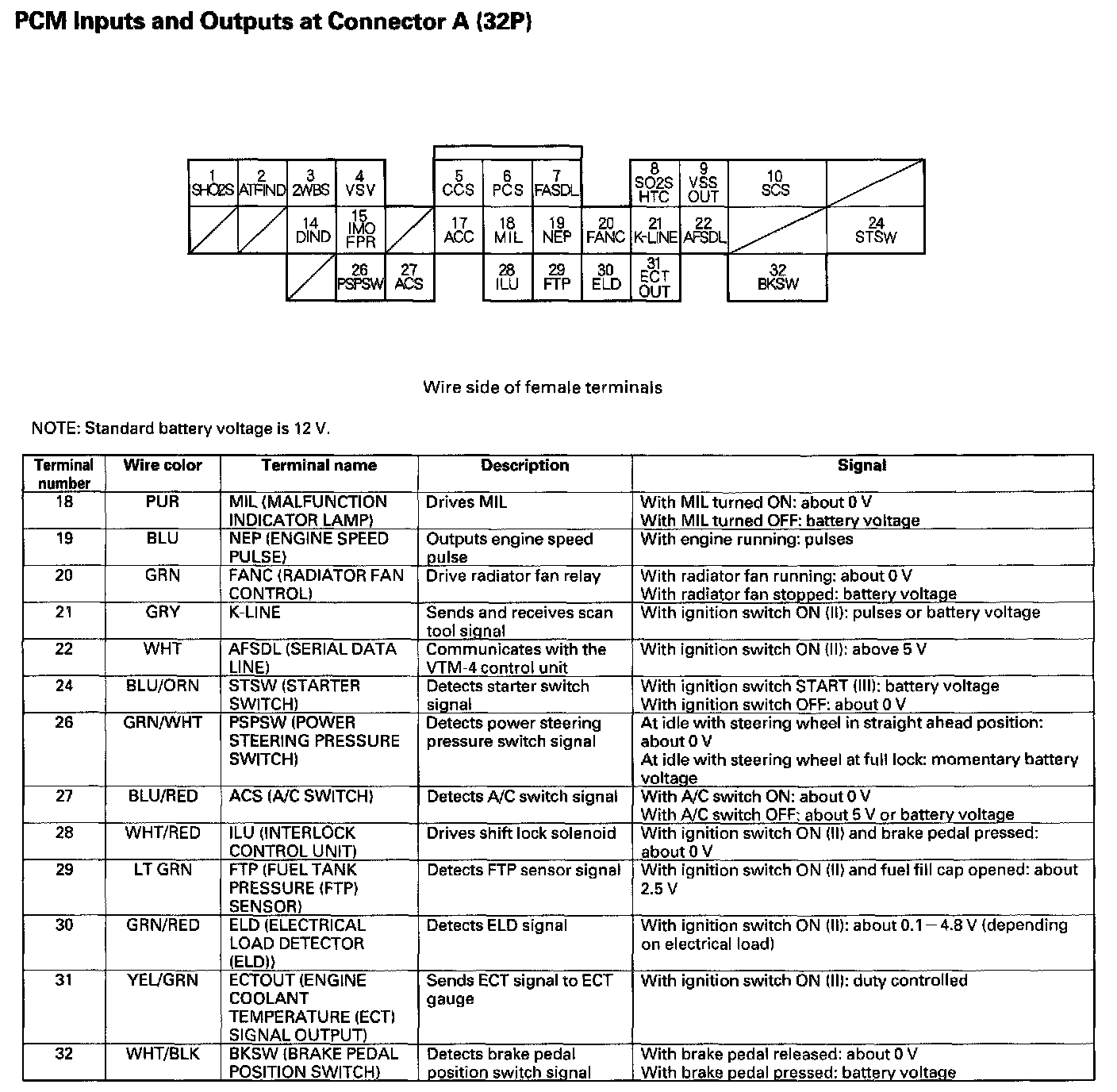

PCM Inputs And Outputs At Connector A (32P) Part 2:

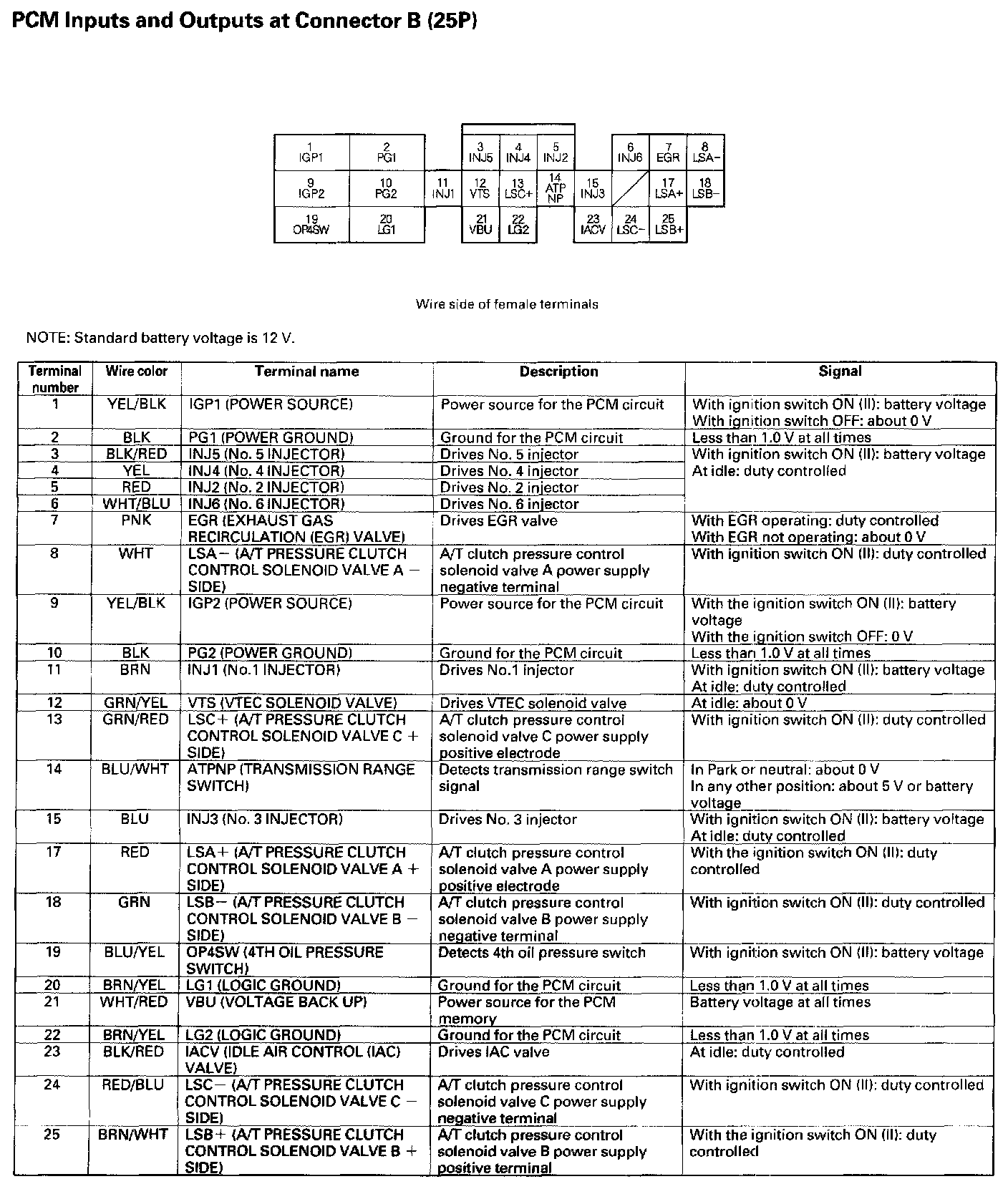

PCM Inputs And Outputs At Connector B (25P):

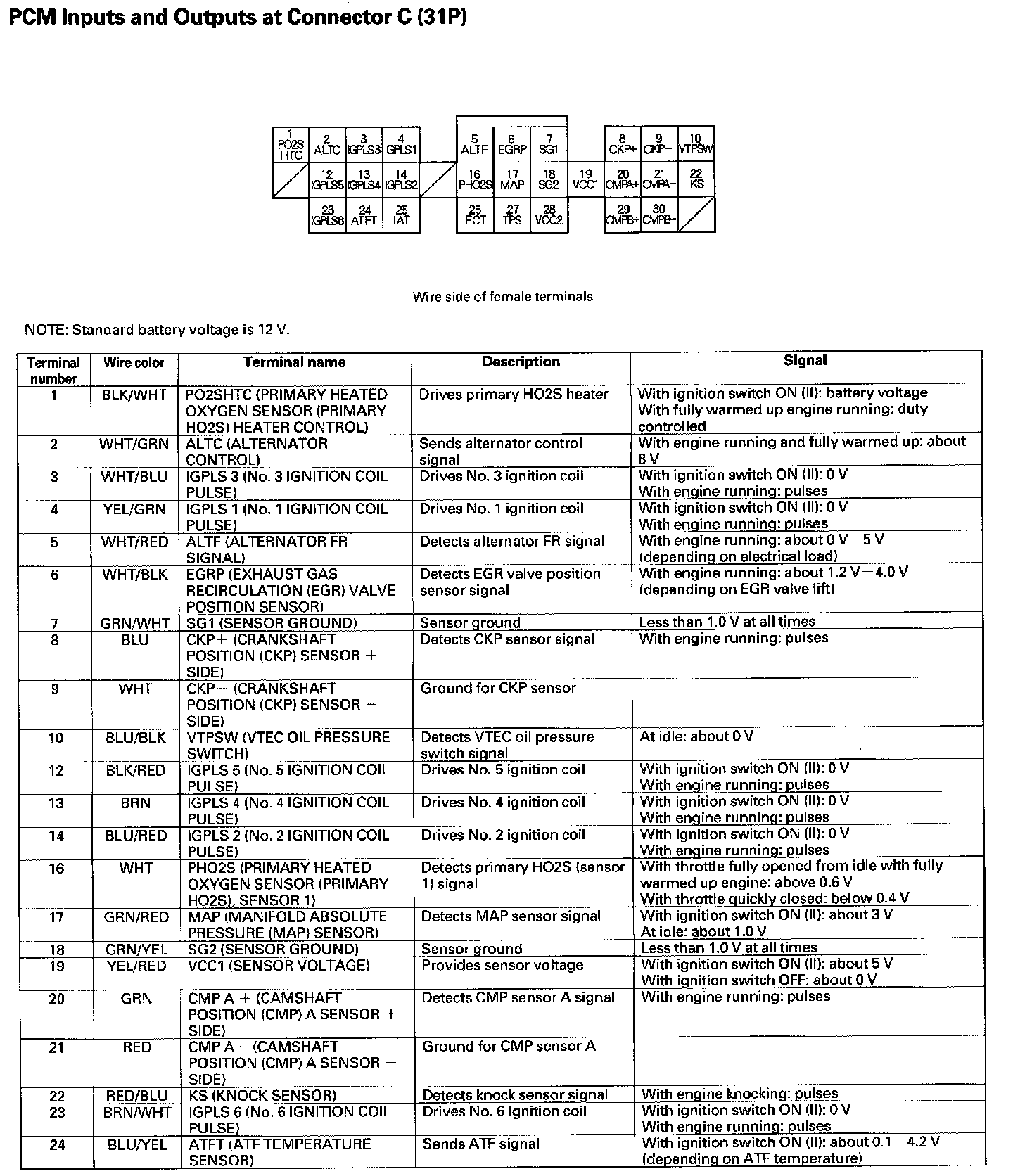

PCM Inputs And Outputs At Connector C (31P) Part 1:

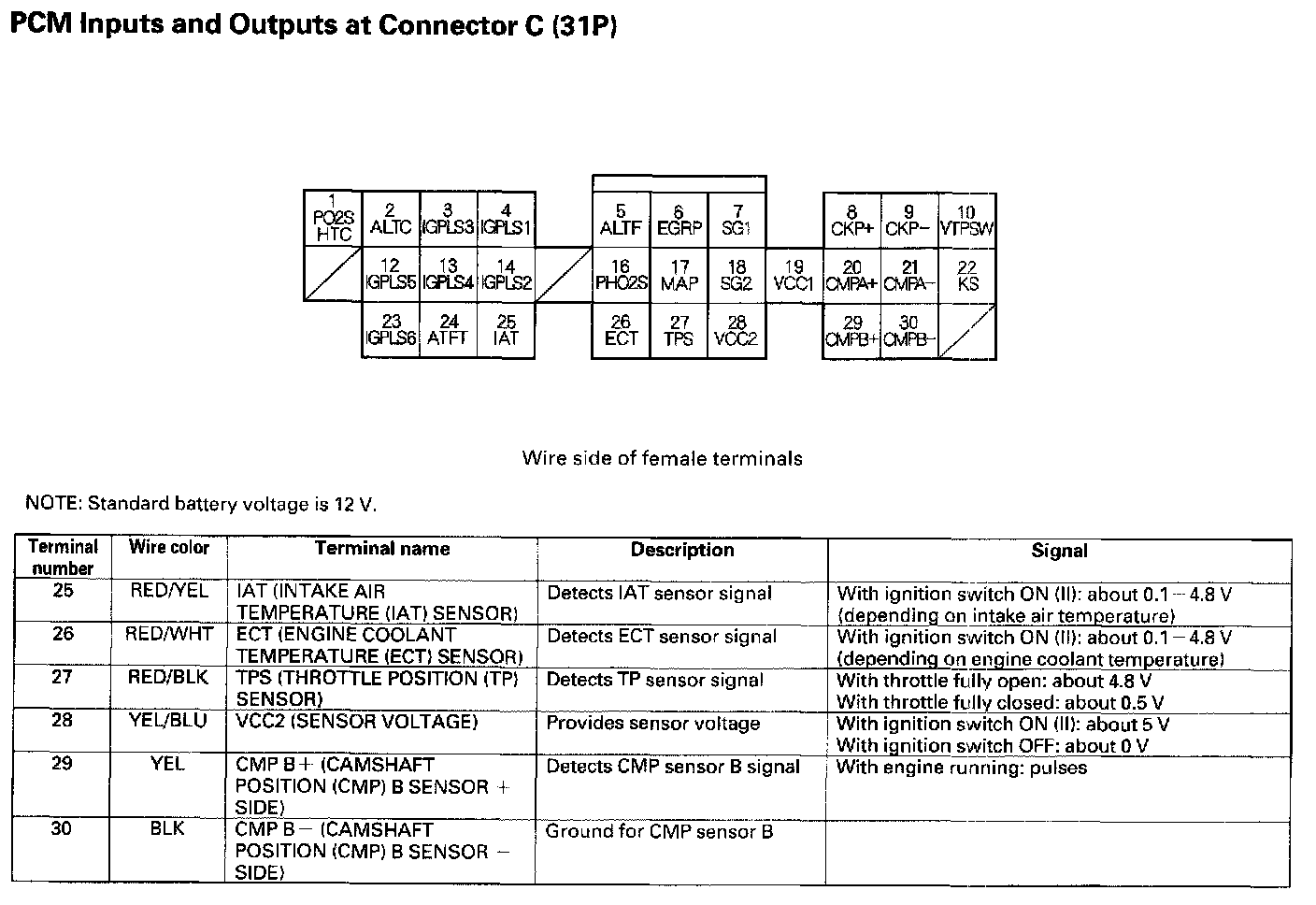

PCM Inputs And Outputs At Connector C (31P) Part 2:

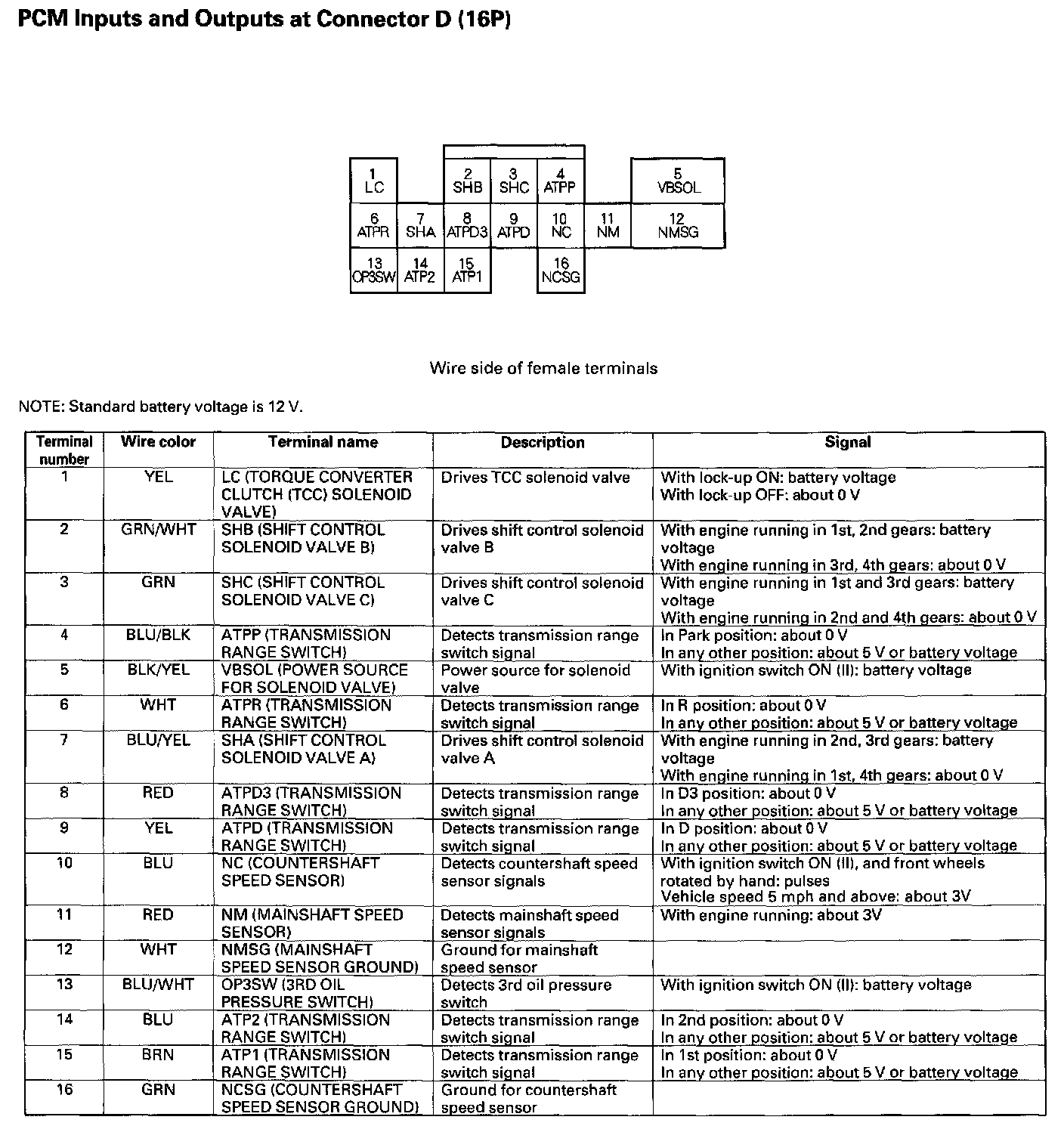

PCM Inputs And Outputs At Connector D (16P):

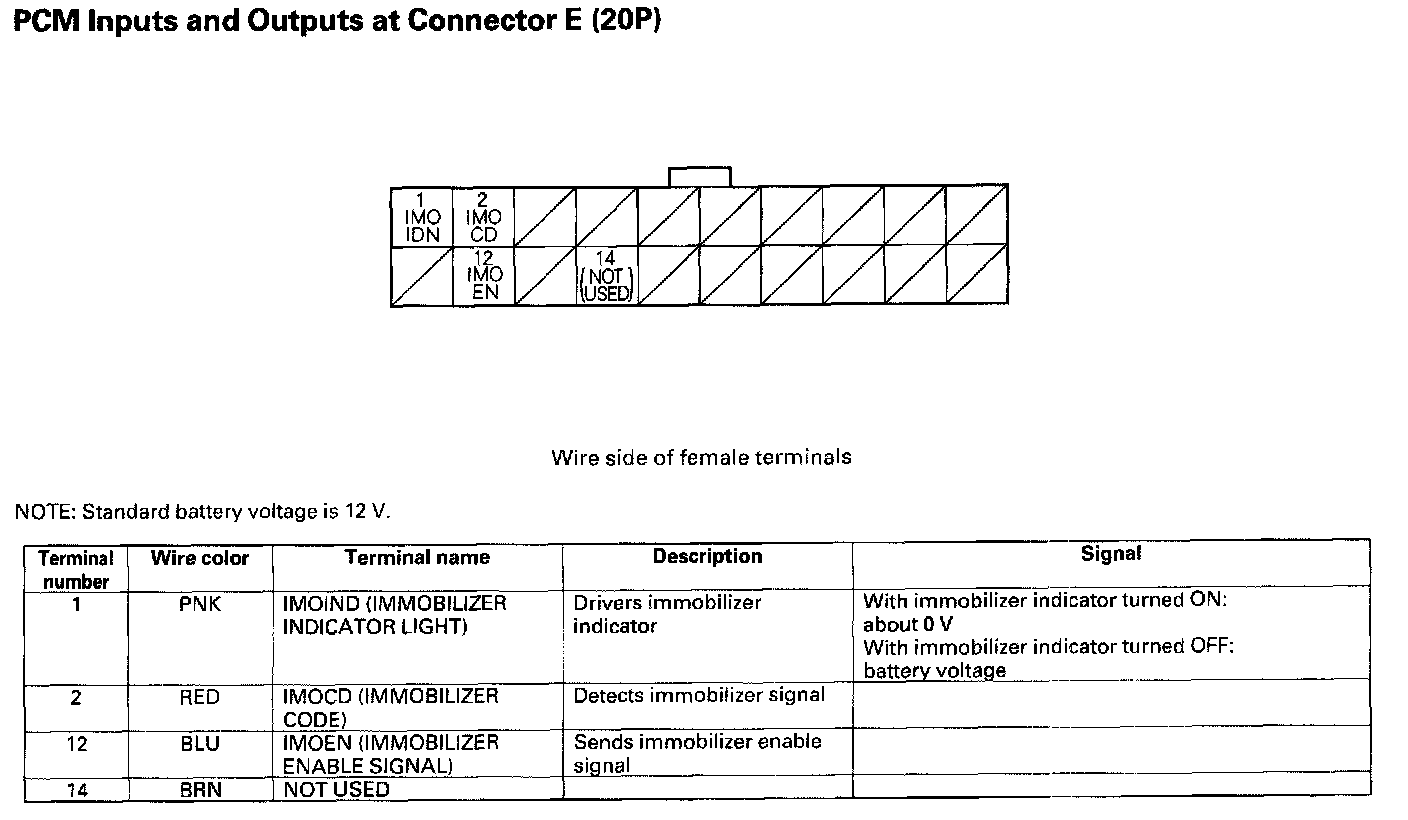

PCM Inputs And Outputs At Connector E (20P):
