Data Link Connector: Locations

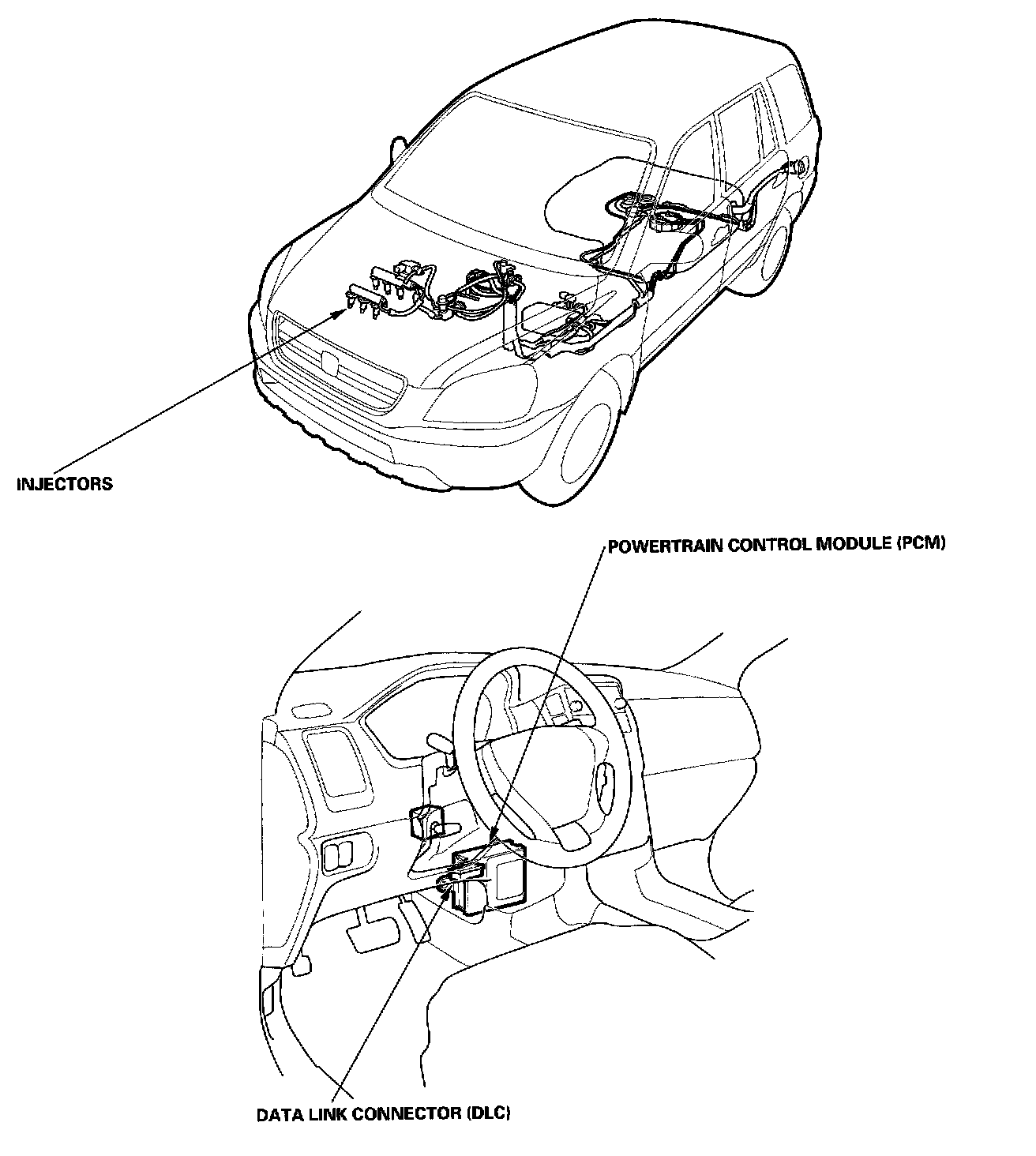

PGM-FI System - Component Location Index Part 2:

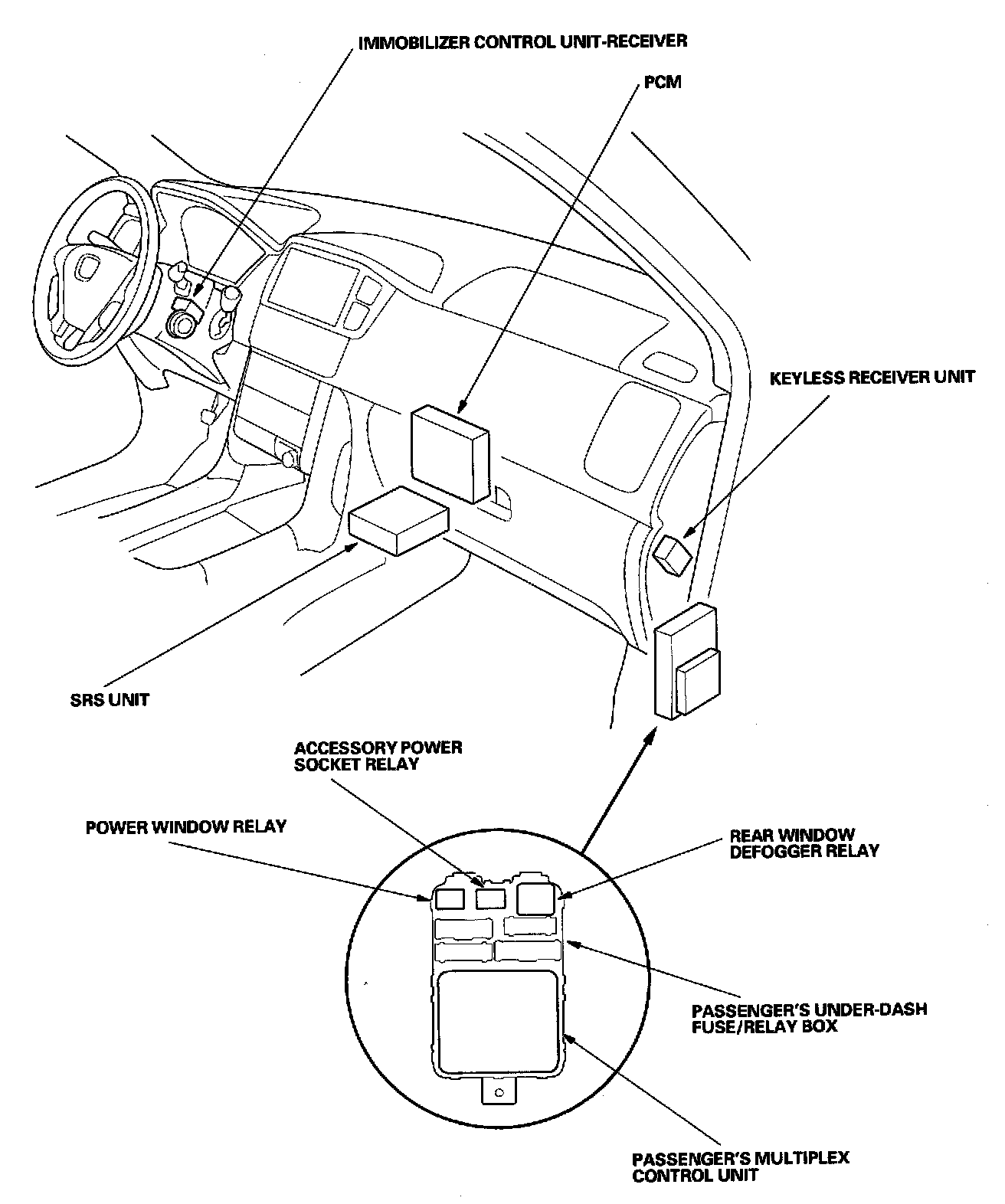

Relay And Control Unit Locations - Dashboard:

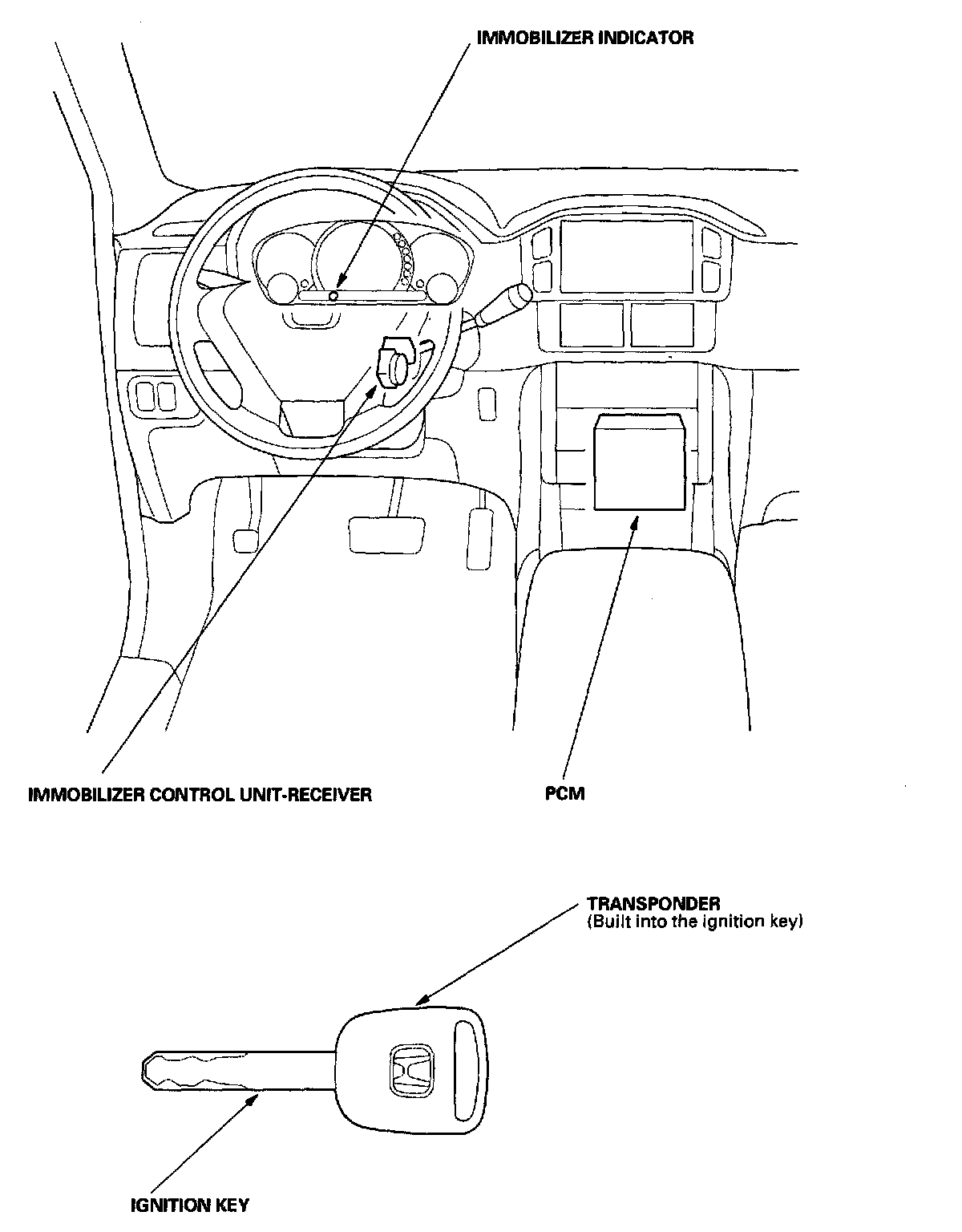

Immobilizer System Component Location Index:

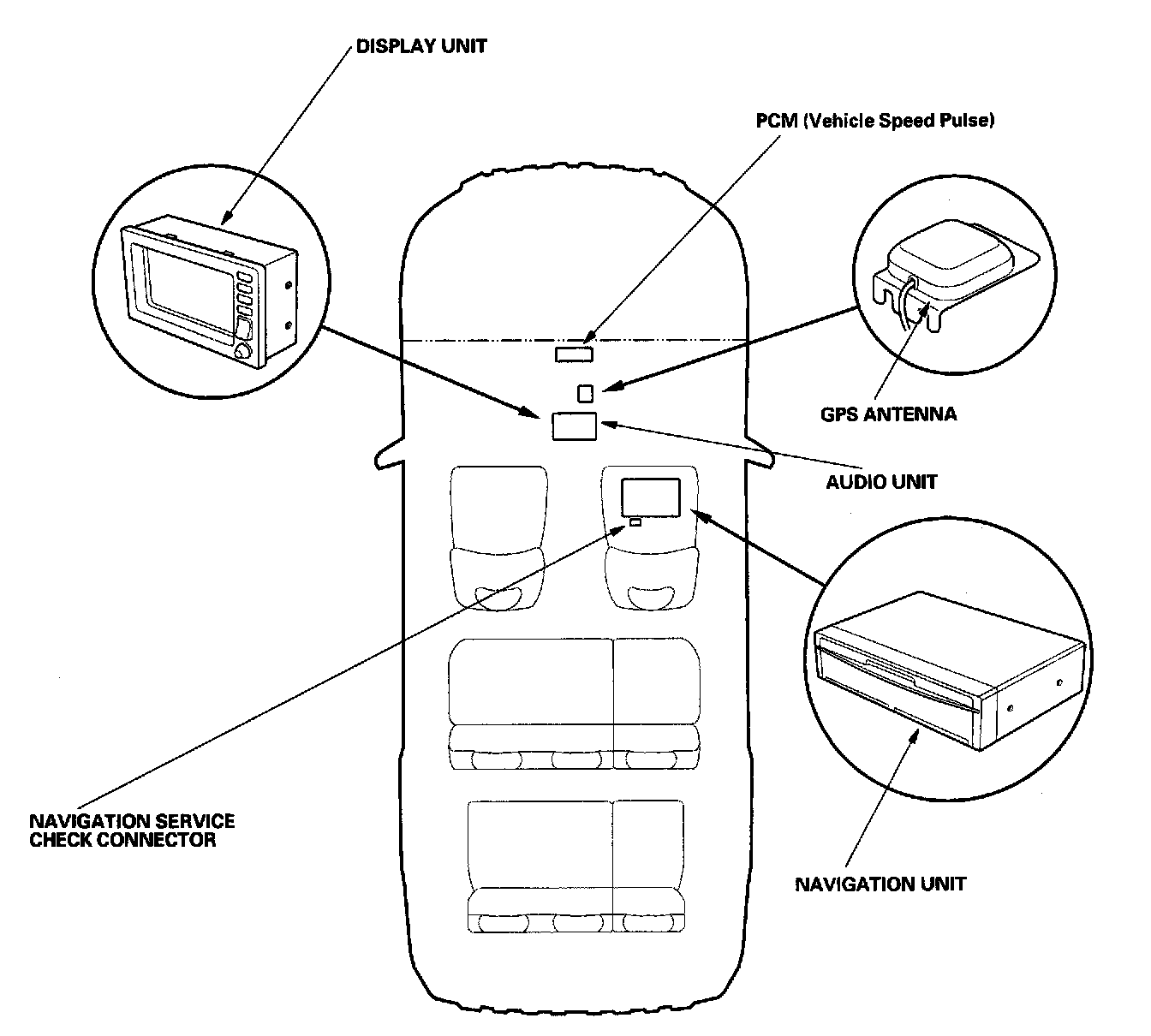

Navigation System Component Location Index:

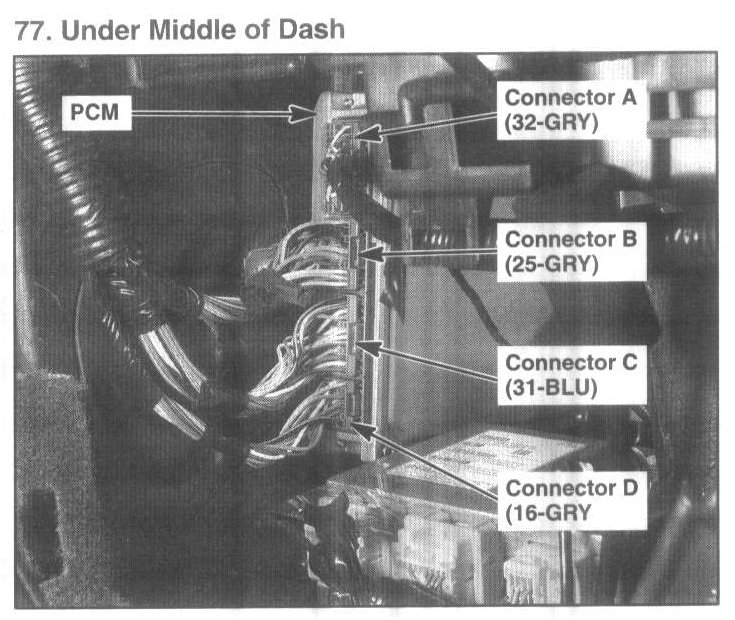

77. Under Middle of Dash:

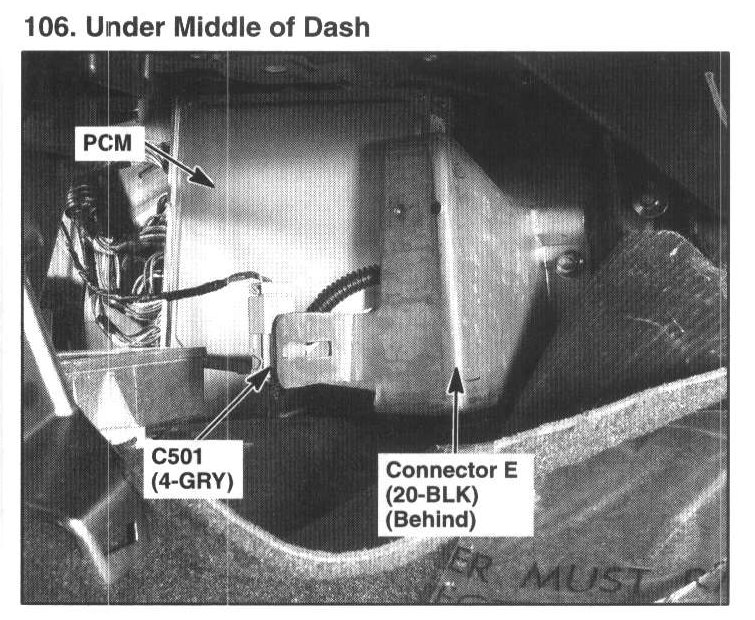

106. Under Middle of Dash:
