Engine Compartment

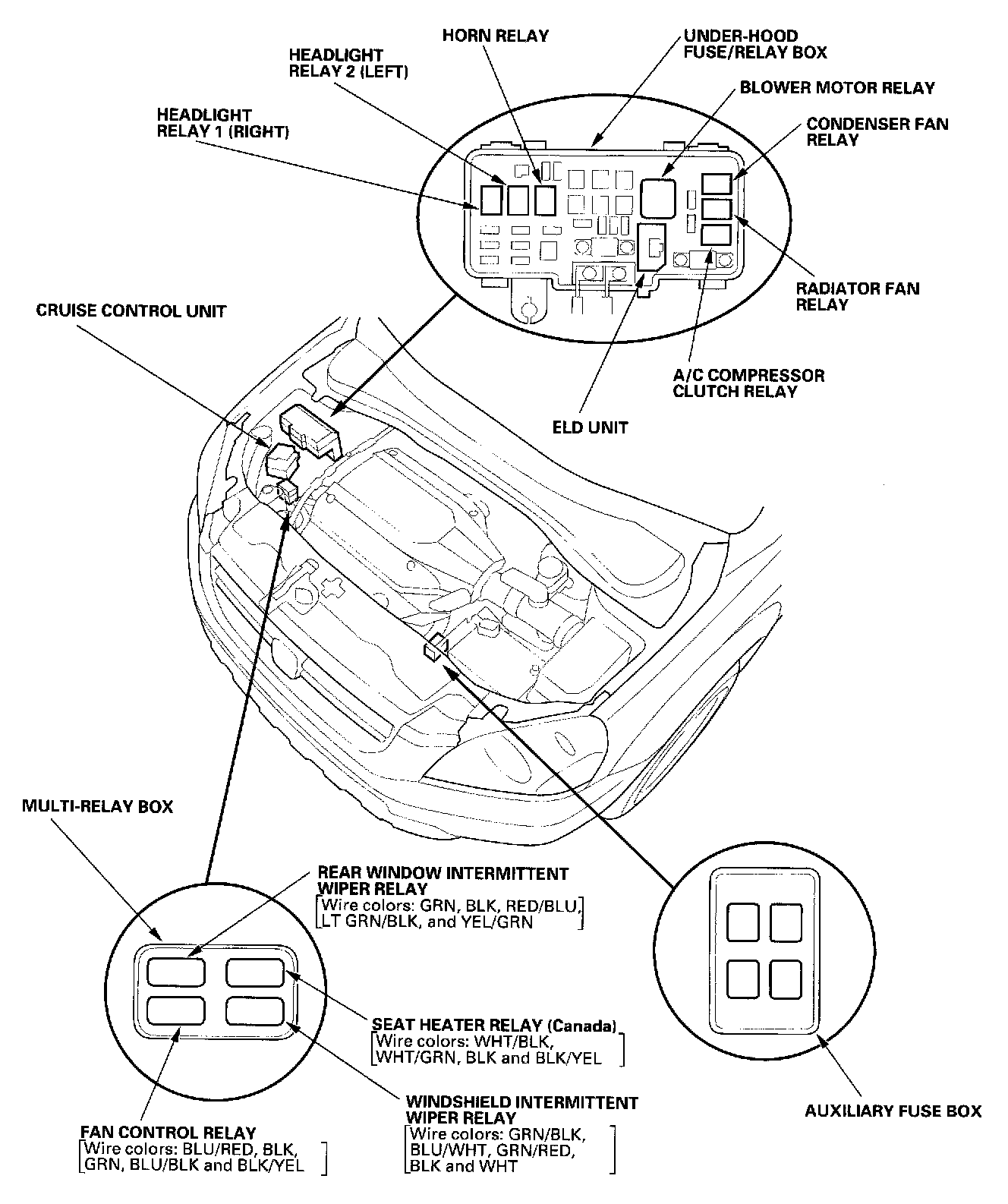

Relay And Control Unit Locations - Engine Compartment:

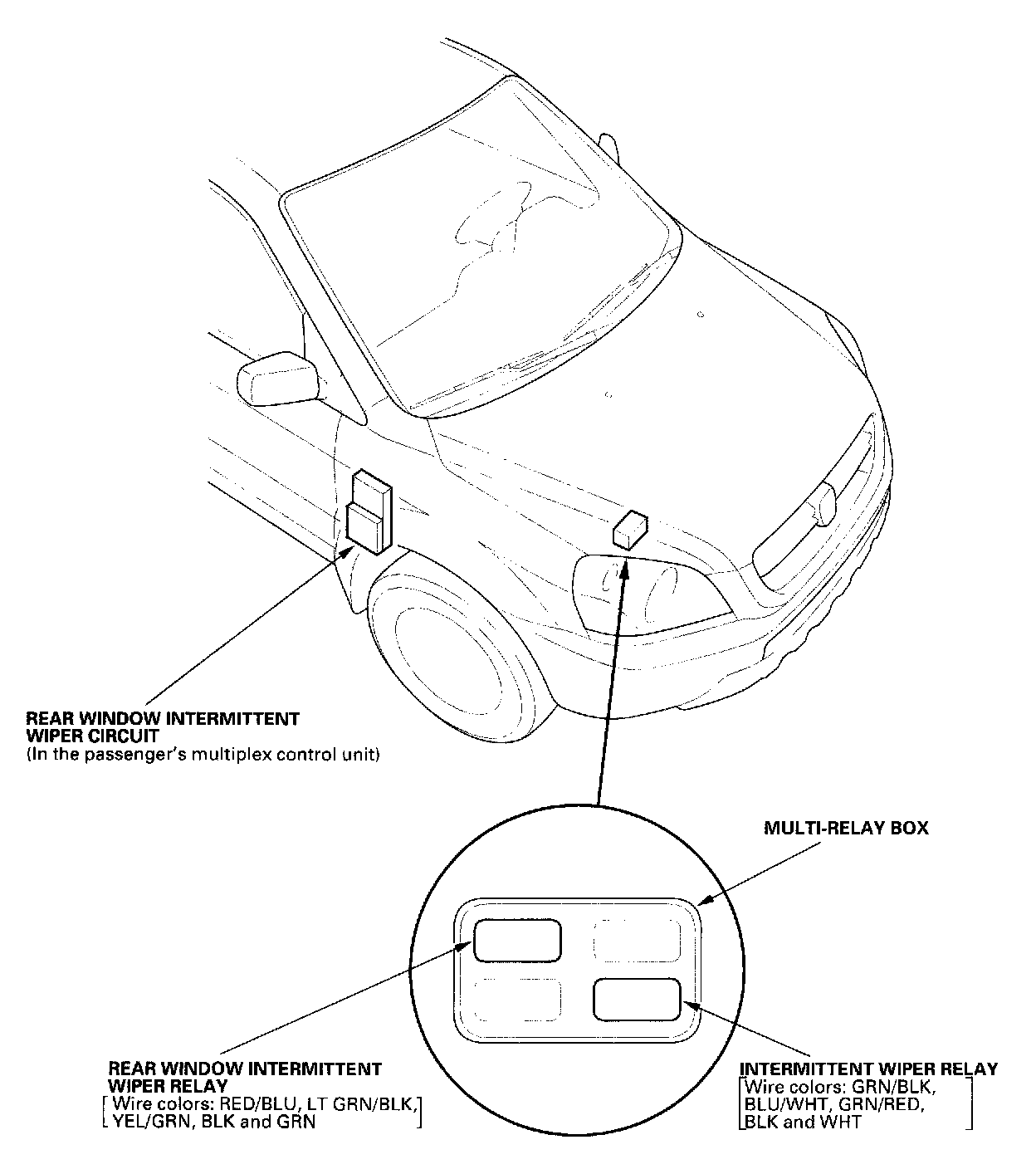

Wipers/Washers Component Location Index:

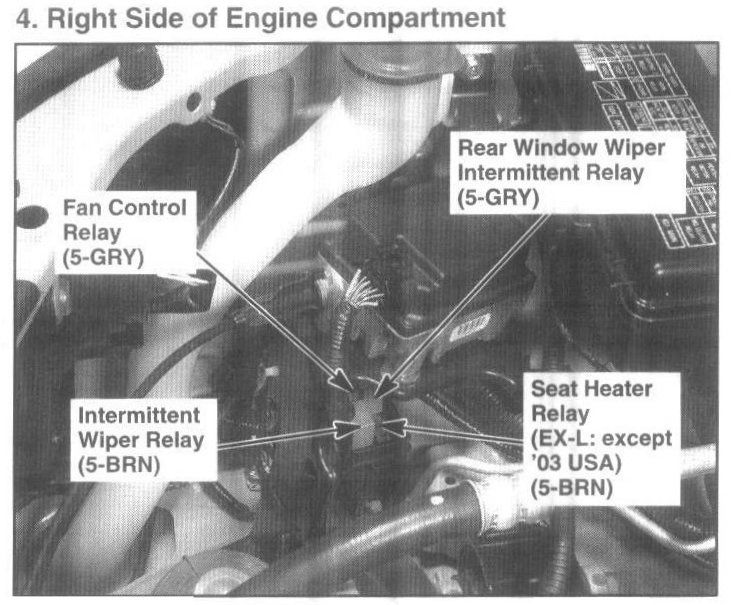

4. Right Side of Engine Compartment:
