Home >> Honda >> 2003 >> Pilot V6-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Display >> Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Navigation Display: Locations

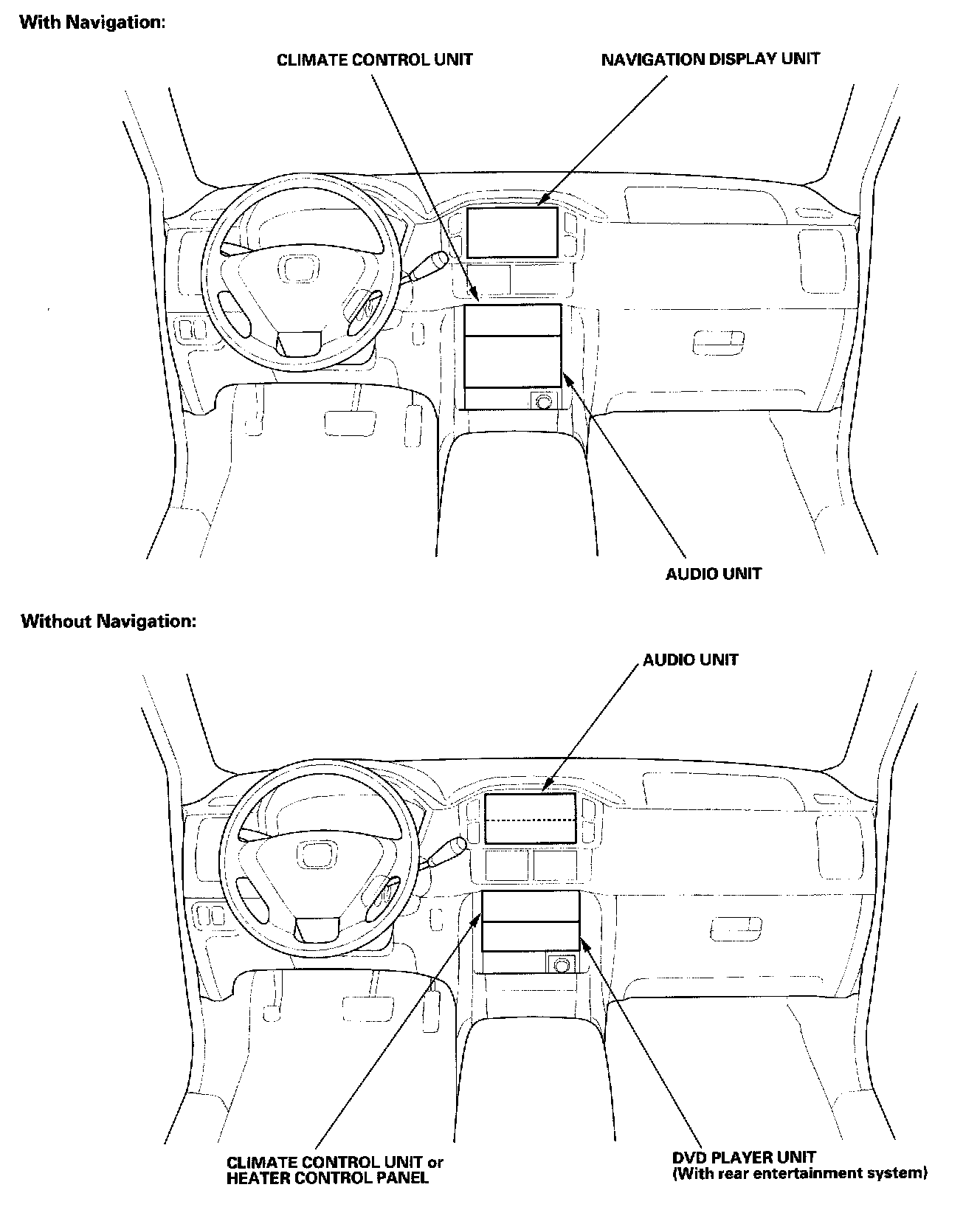

Relay And Control Unit Locations - Dashboard:

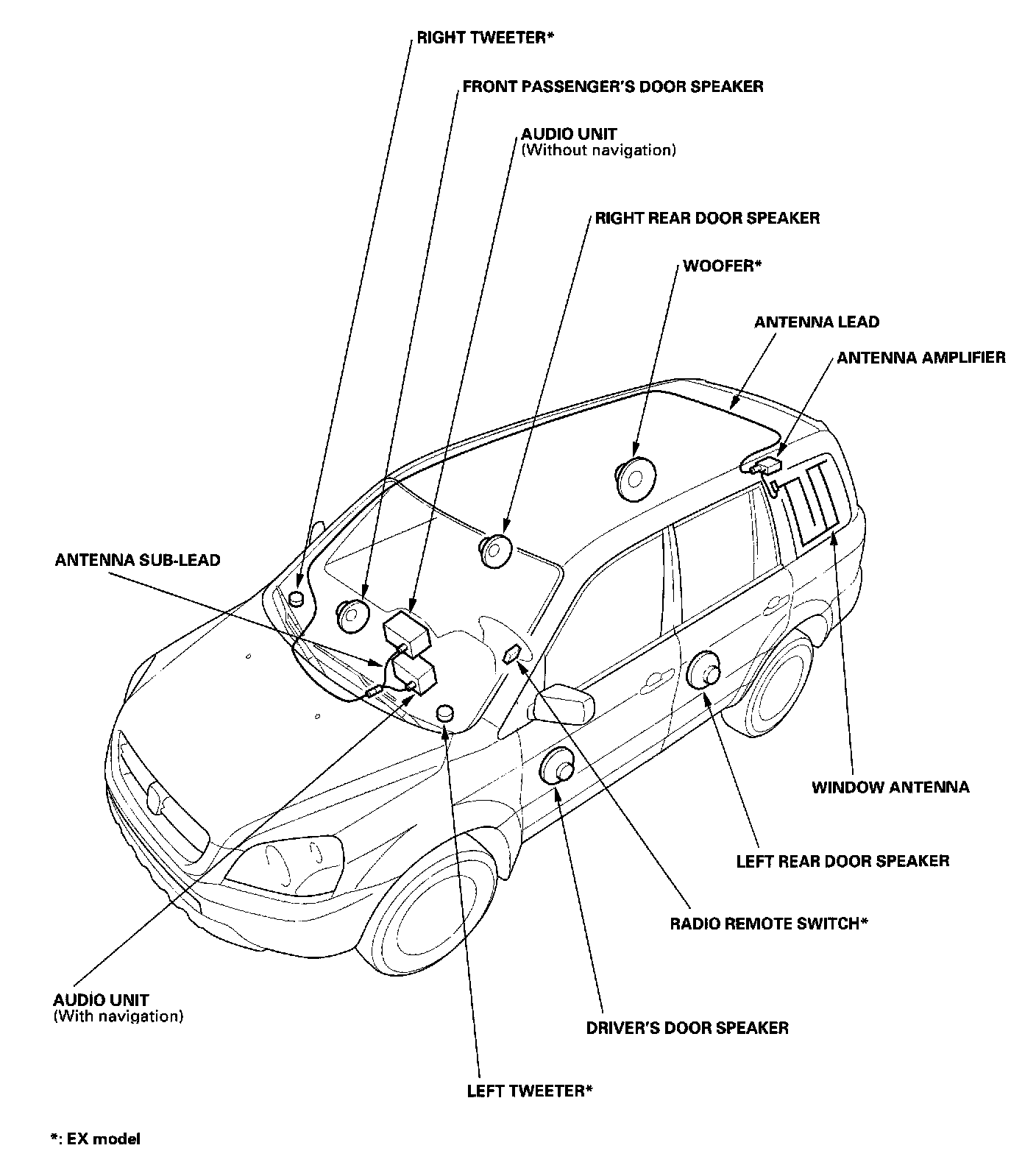

Stereo Sound System Component Location Index:



44. Inside Steering Wheel:
