C504 (EX, EX-L) Connector End View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
C504 (EX, EX-L) Connector End View

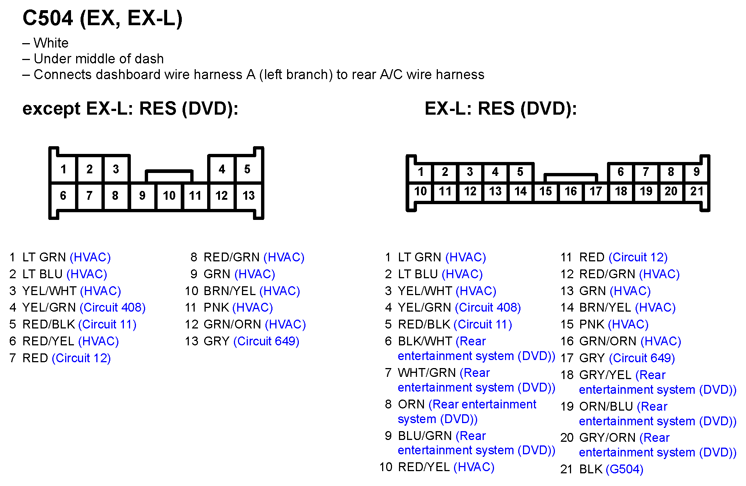

Fig 1: C504 (EX, EX-L) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
