Under-Dash Fuse/Relay Box, Passenger's Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Under-Dash Fuse/Relay Box, Passenger's Connector End View

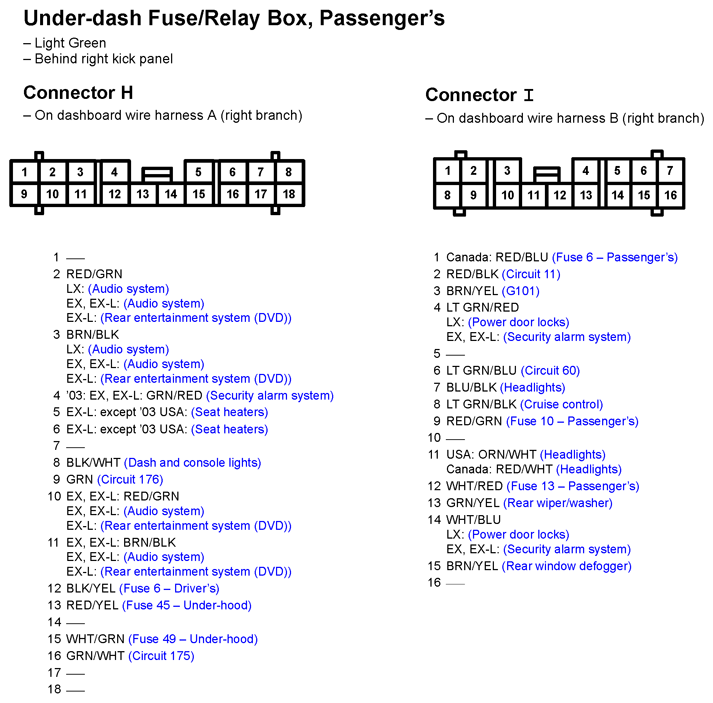

Fig 1: Under-Dash Fuse/Relay Box, Passenger's Connector End View (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

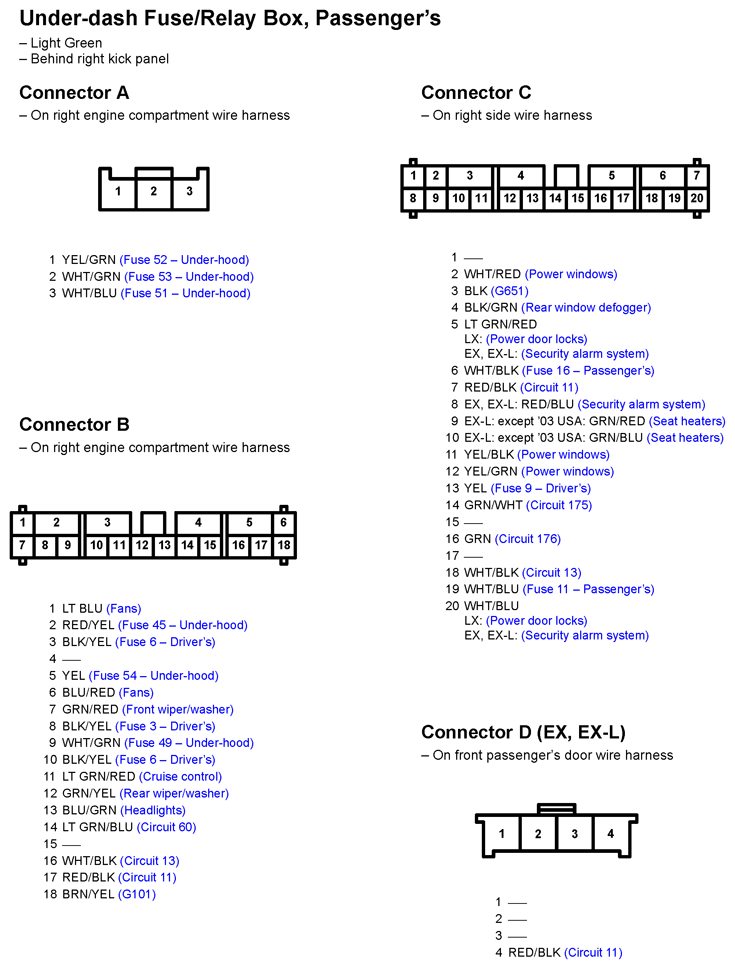

Fig 2: Under-Dash Fuse/Relay Box, Passenger's Connector End View (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

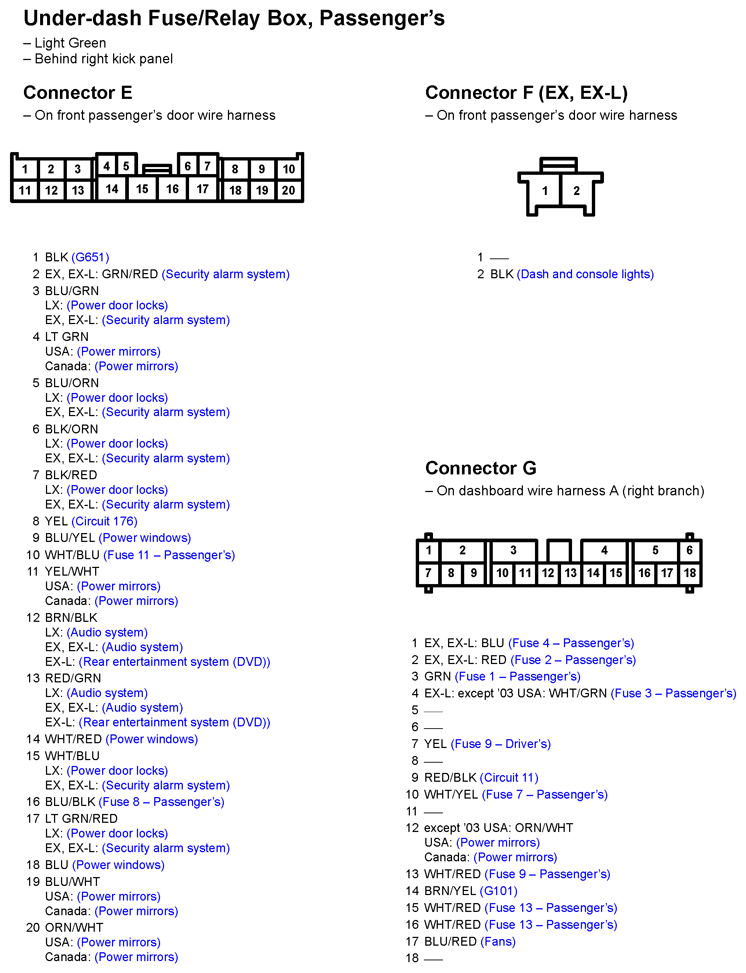

Fig 3: Under-Dash Fuse/Relay Box, Passenger's Connector End View (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

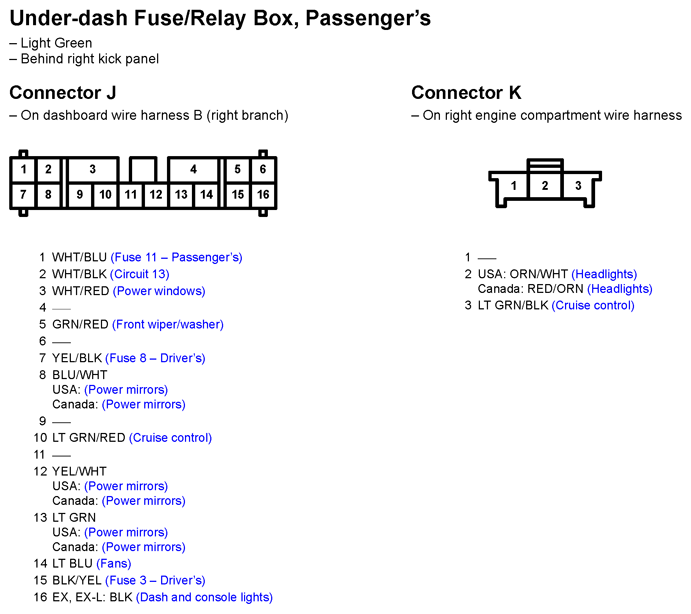

Fig 4: Under-Dash Fuse/Relay Box, Passenger's Connector End View (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
