Rear Window

  1. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 4P connector (A) from the rear window wiper motor (B).

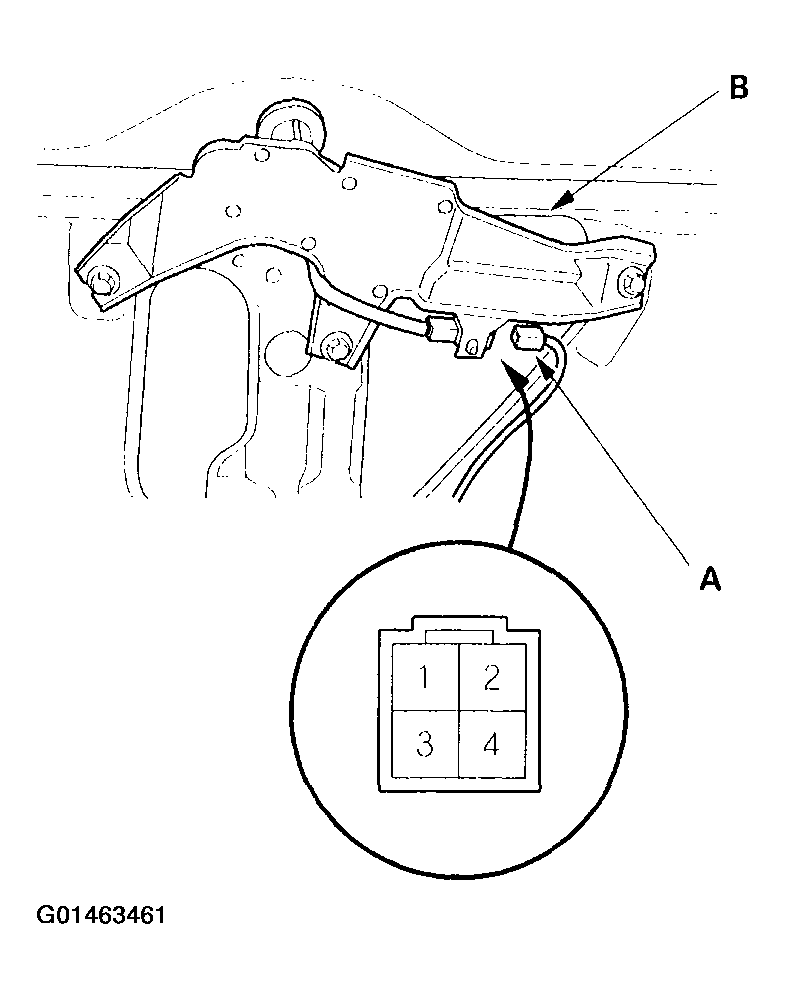

    Fig 1: Identifying Rear Window Wiper Motor 5P Connector Terminals
    G01463461Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor by connecting battery power to the wiper motor 4P connector No. 1 terminal and grounding the No. 3 terminal. The motor should run.
  4. Connect an analog voltmeter between the No. 4 (+) and No. 2 (-) terminals, and run the motor. The voltmeter should indicate 0 V and 4 V or more alternately.
  5. If the voltmeter does not indicate as specified, replace the wiper motor.
