Wiper Motor Replacement: Windshield

Remove the nuts (A) and the windshield wiper arms (B).

Fig 1: Removing The Windshield Wiper Arms
Courtesy of AMERICAN HONDA MOTOR CO., INC.

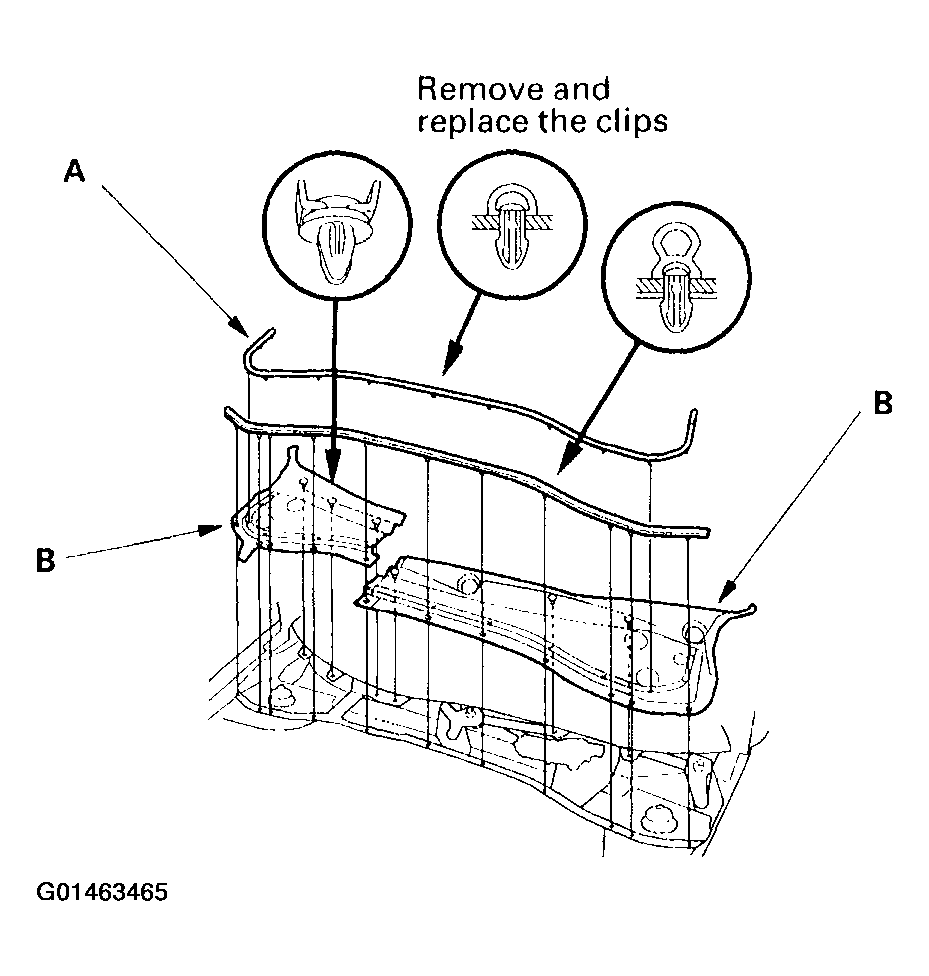

Remove the hood seal (A) and cowl covers (B).

Fig 2: Removing The Hood Seal & Cowl Covers
Courtesy of AMERICAN HONDA MOTOR CO., INC.

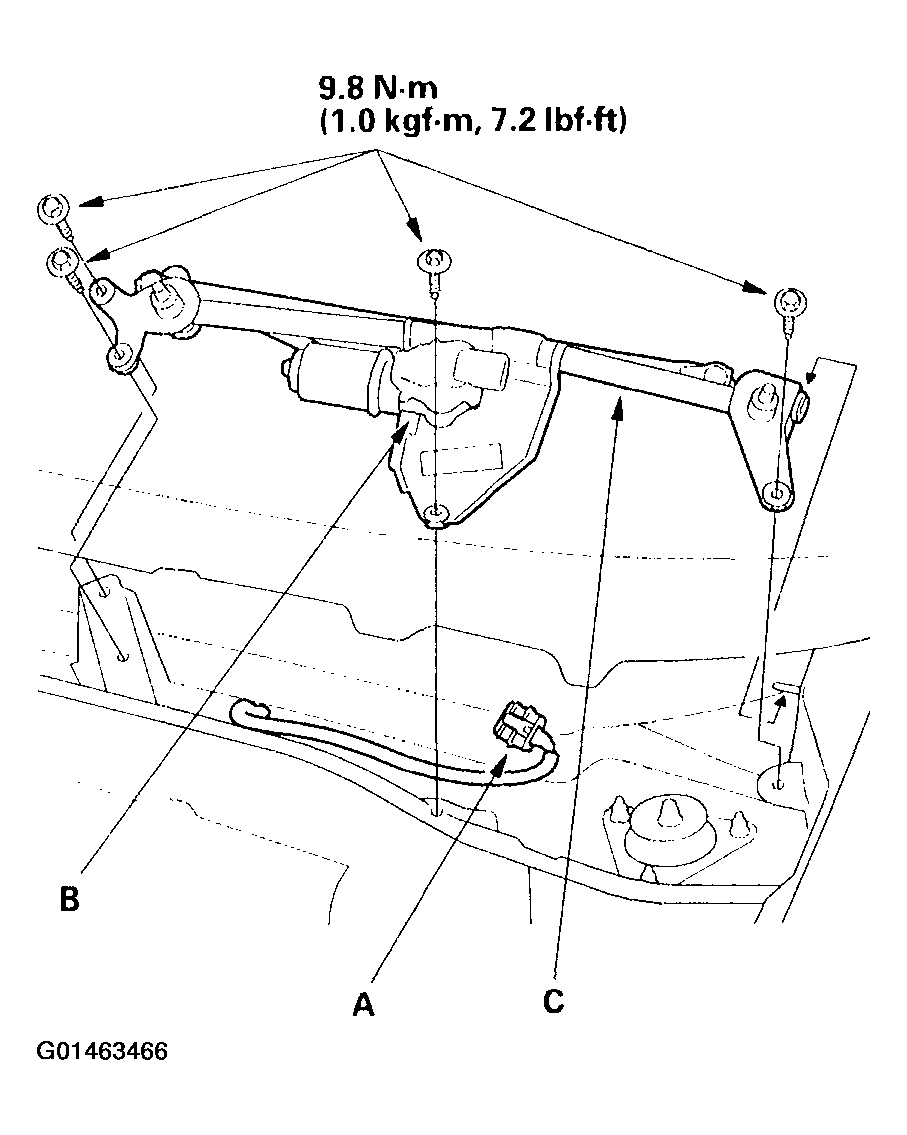

Disconnect the 5P connector (A) from the windshield wiper motor (B).

Fig 3: Disconnecting The 5P Connector From The Windshield Wiper Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the mounting bolts and the wiper linkage assembly (C).

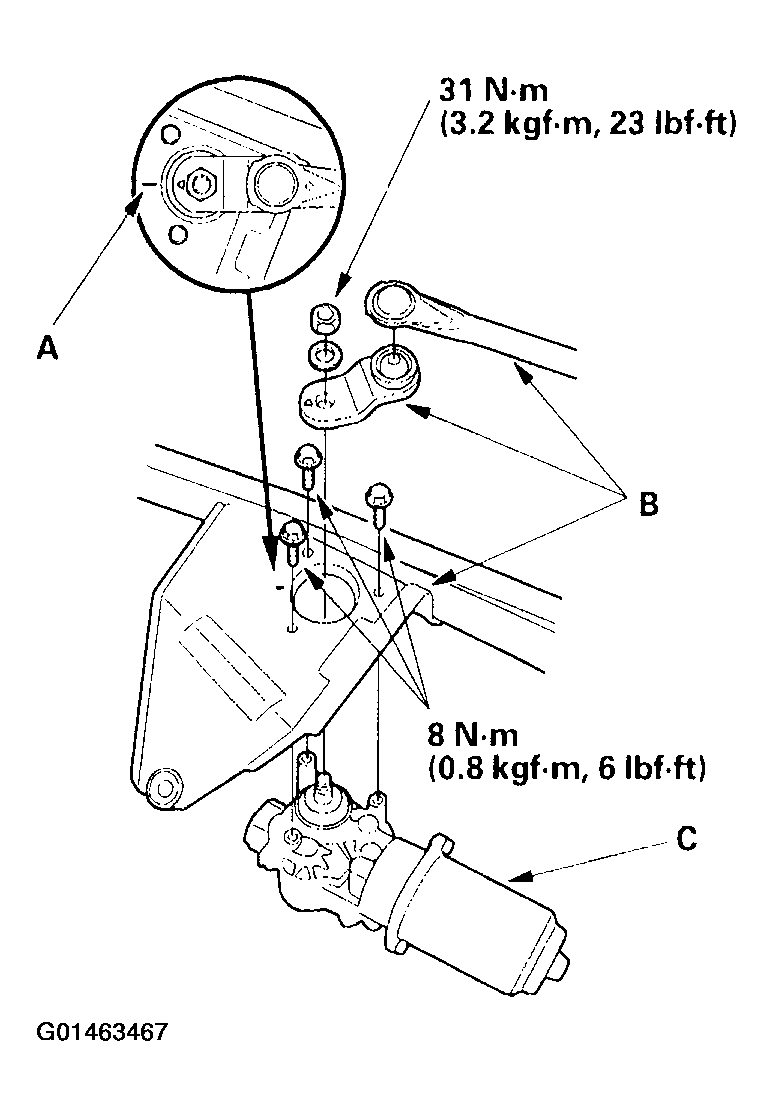

Scribe a line (A) across the link and windshield wiper linkage to show the original adjustment. Separate the windshield wiper linkage (B) from the wiper motor (C).

Fig 4: Separating The Windshield Wiper Linkage From The Wiper Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and note these items:
- Apply multipurpose grease to the moving parts.
- Before reinstalling the wiper arms, turn the wiper switch ON, then OFF to return the wiper shafts to the park position.
- If necessary, replace any damaged clips.
- Make sure the wiper motor operates properly.
