Television / Monitor

289. Flip Down Screen (Honda Accessory):

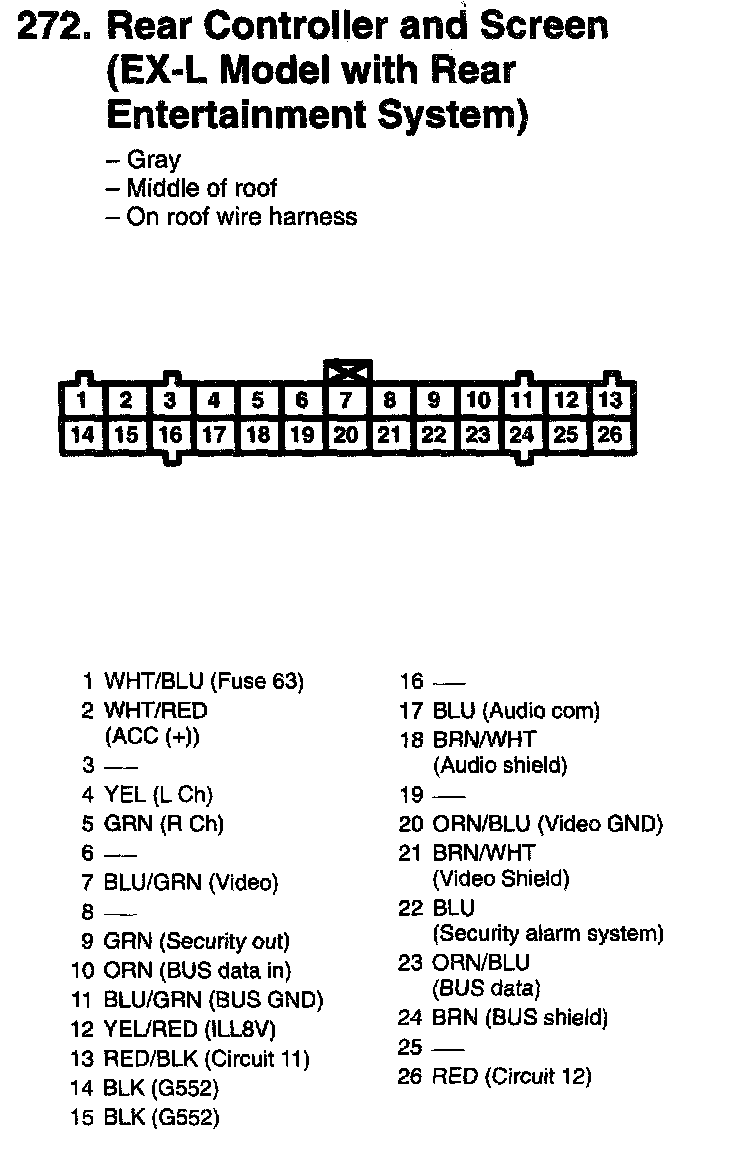

272. Rear Controller And Screen (EX-L Model With Rear Entertainment System):
