Continuously Variable Automatic Transmission (CVT)
>>
CVT
>>
System Description
>>
Electronic Control System
>>
TCM Electrical Connection
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
TCM Electrical Connection

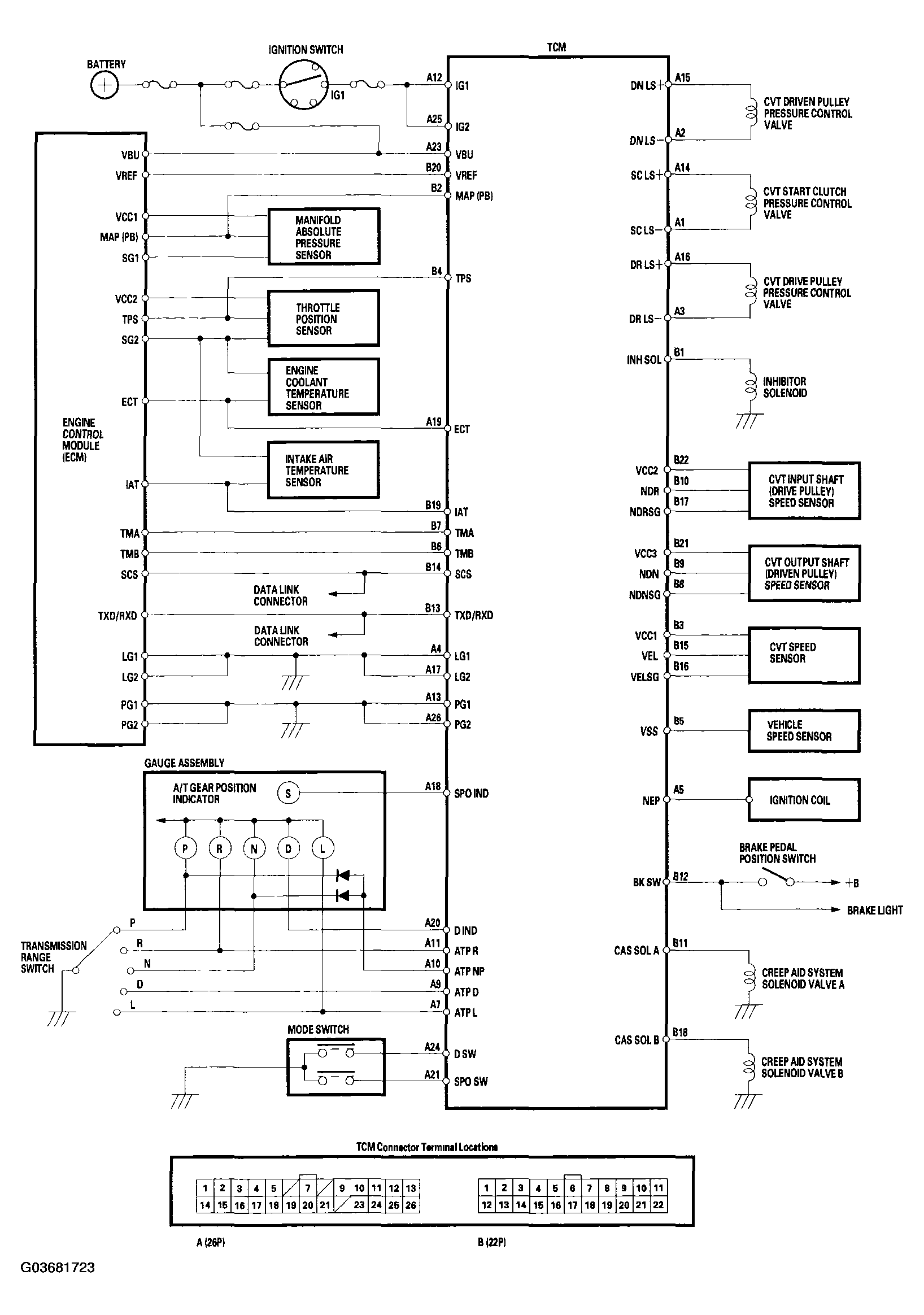

Fig 1: TCM Electrical Connection Diagram
