Mode Switch Replacement

  1. Remove the screws securing the mode switch, then remove the switch.

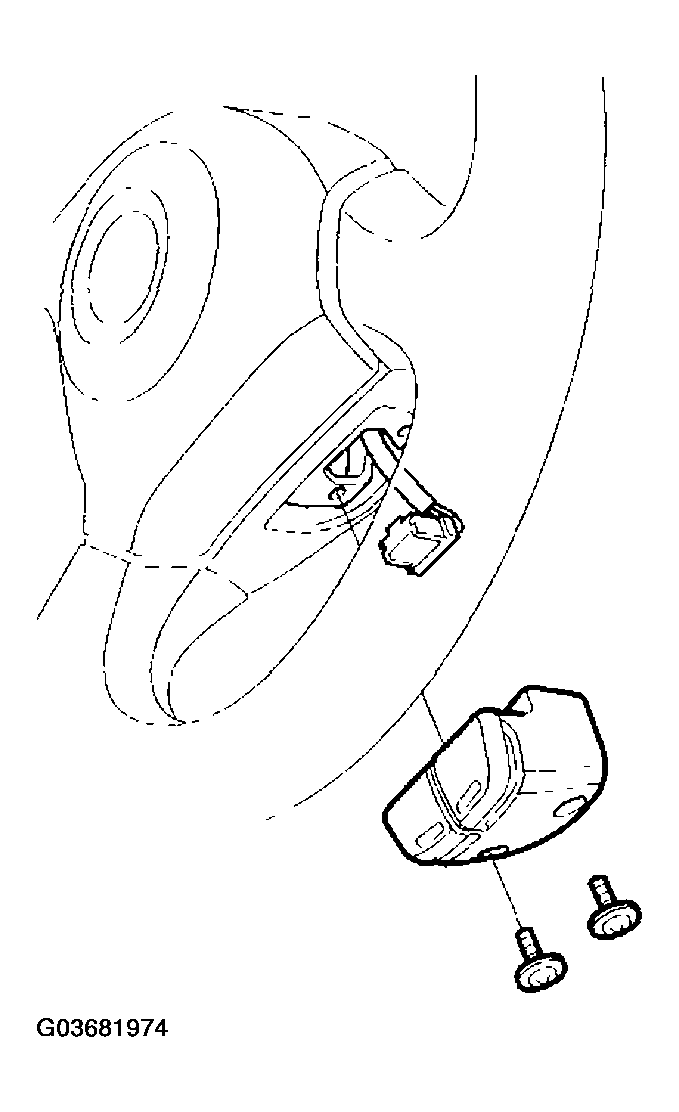

    Fig 1: Removing Mode Switch
    G03681974Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the connector from the switch.
  3. Install the new mode switch.
