Cruise Control System (Hatchback)
>>
Component Location Index
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Location Index

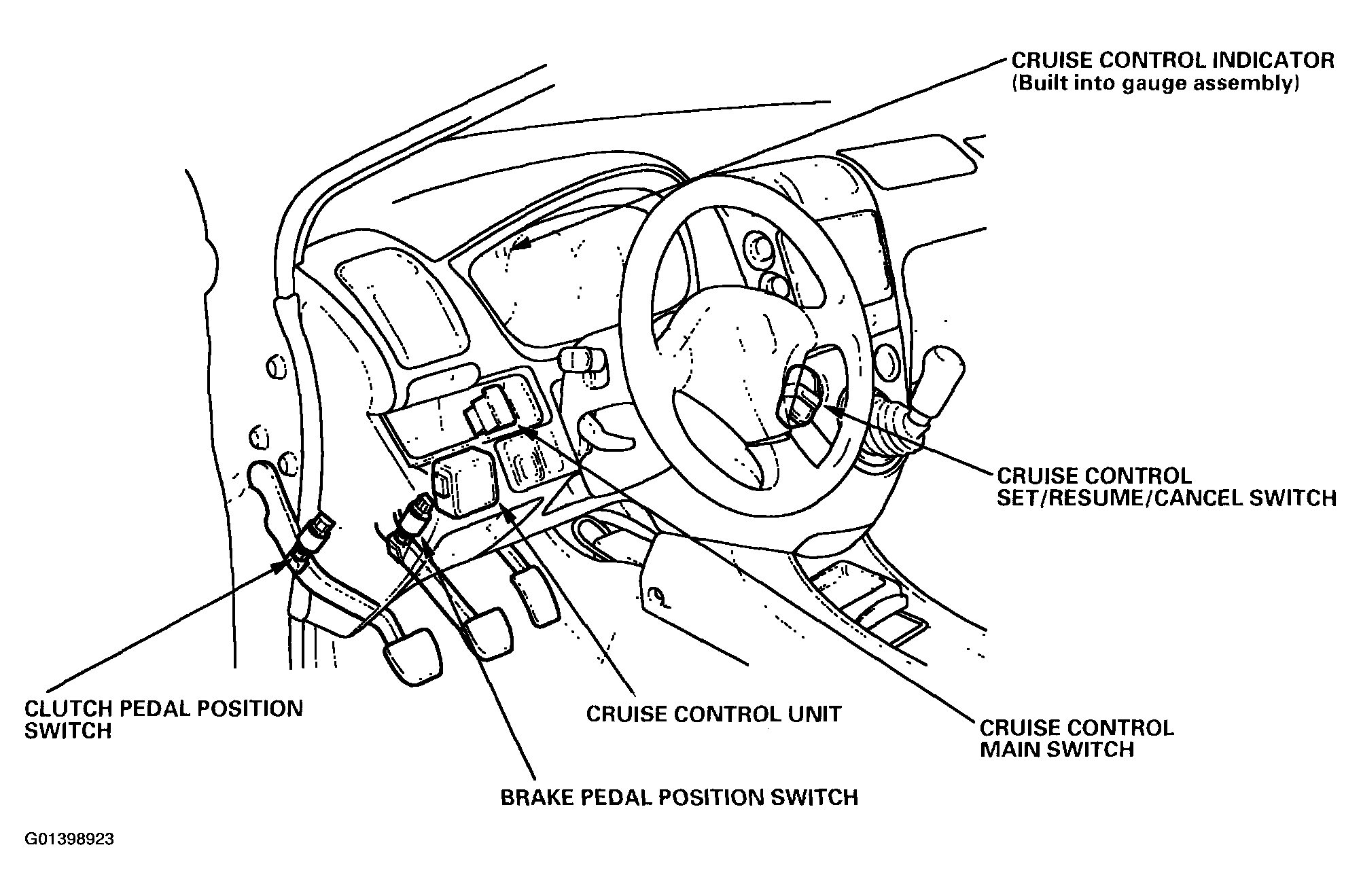

Fig 1: Locating Cruise Control System Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

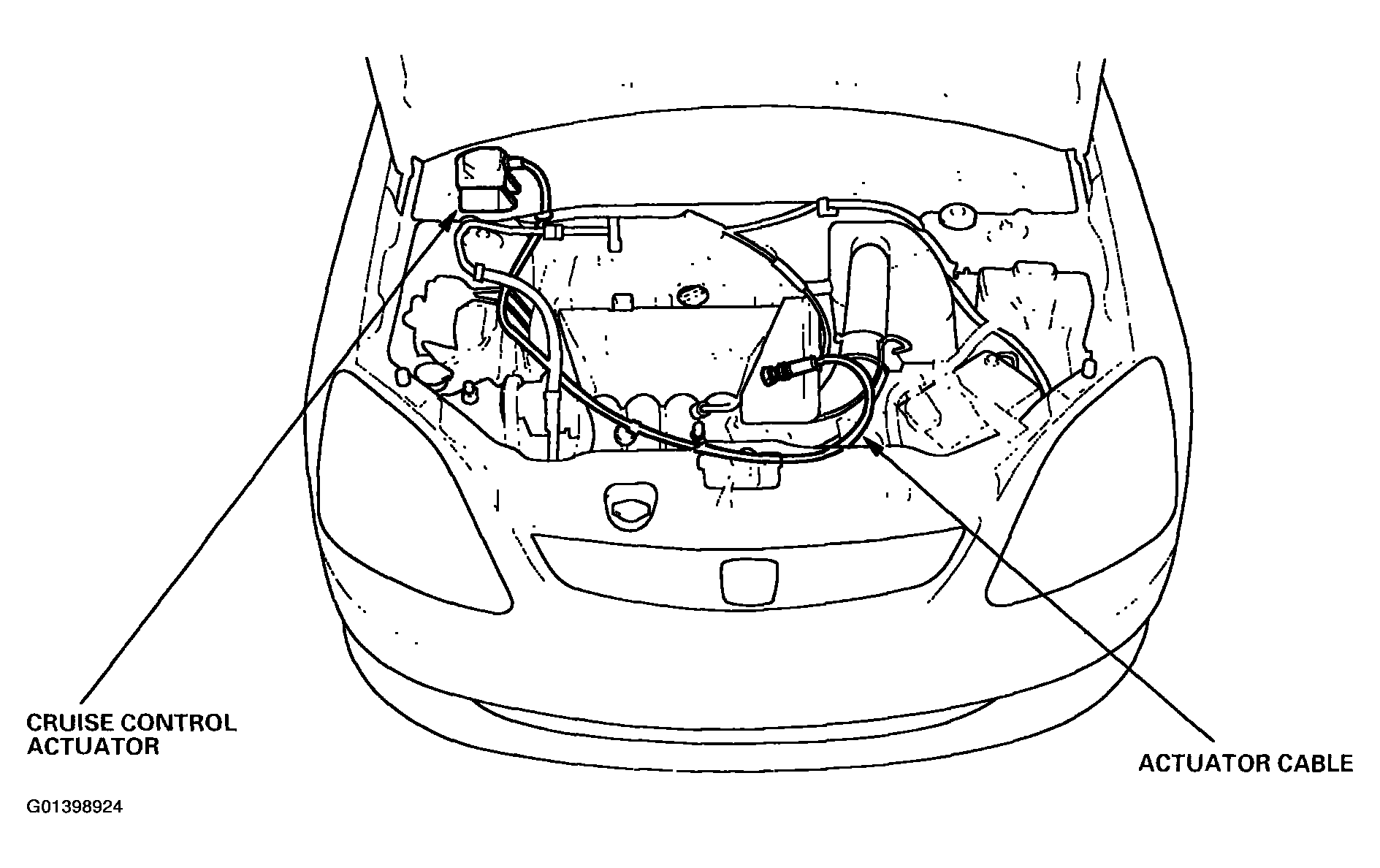

Fig 2: Locating Cruise Control System Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
