Exhaust Manifold

Exhaust Manifold

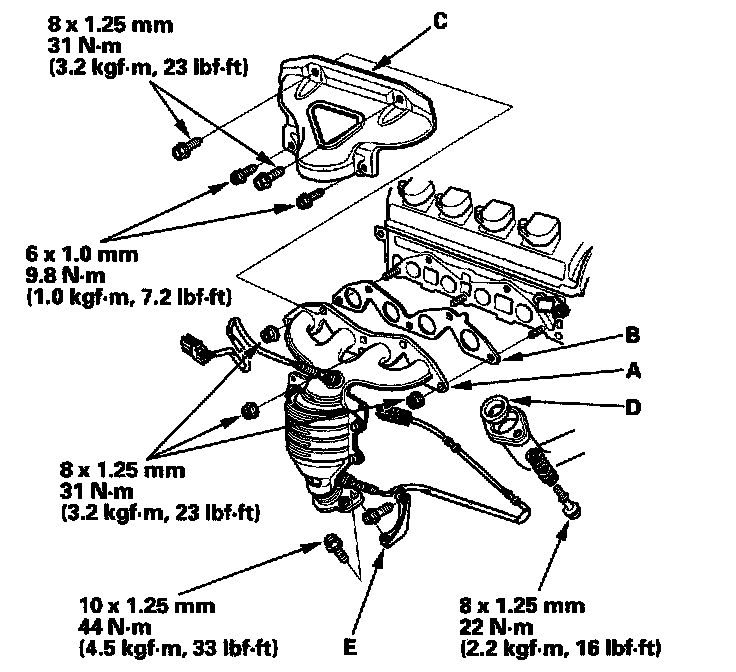

Install the exhaust manifold (A) with a new gasket (B). Loosely install the new nuts, then install the cover (C) and loosely install the new bolts.
Tighten the bolts/nuts in a crisscross pattern in two or three steps.
