Torque Specifications

CVT

Drive Plate

Tighten the six bolts in a crisscross pattern.

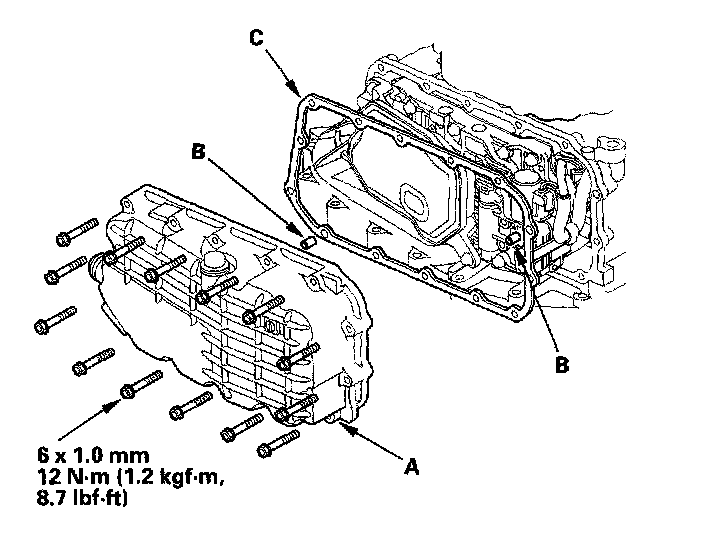

ATF Pan

ATF pan/bolts

Overhaul Specifications
Please refer to Automatic Transmission/Transaxle, Service and Repair, Procedures, Continuously Variable Transmission, Overhaul (Transmission) and Overhaul (Differential).
