Fuse Block

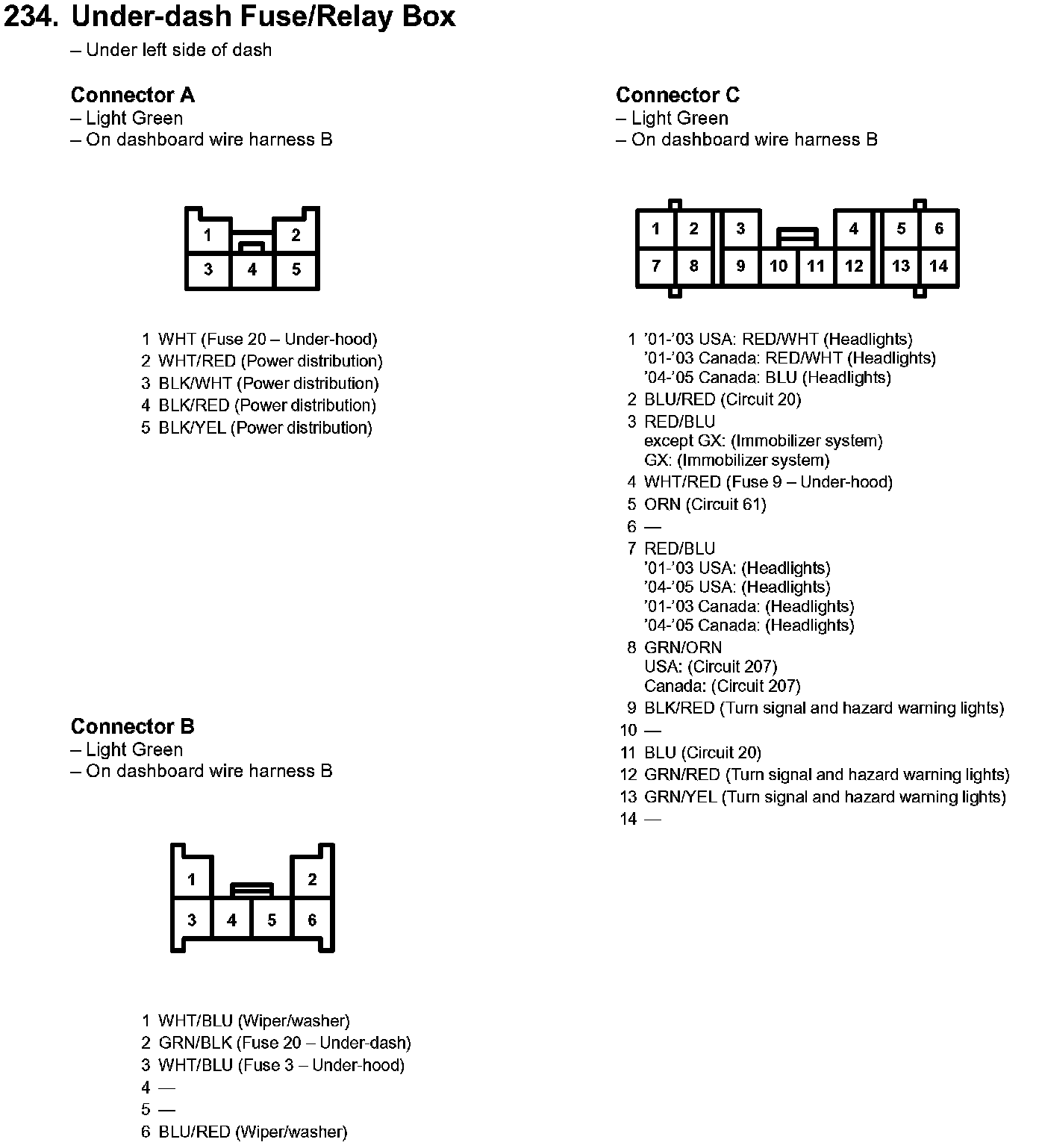

234. Under-dash Fuse/Relay Box Part 1:

234. Under-dash Fuse/Relay Box Part 2:

234. Under-dash Fuse/Relay Box Part 3:

Fuse Block

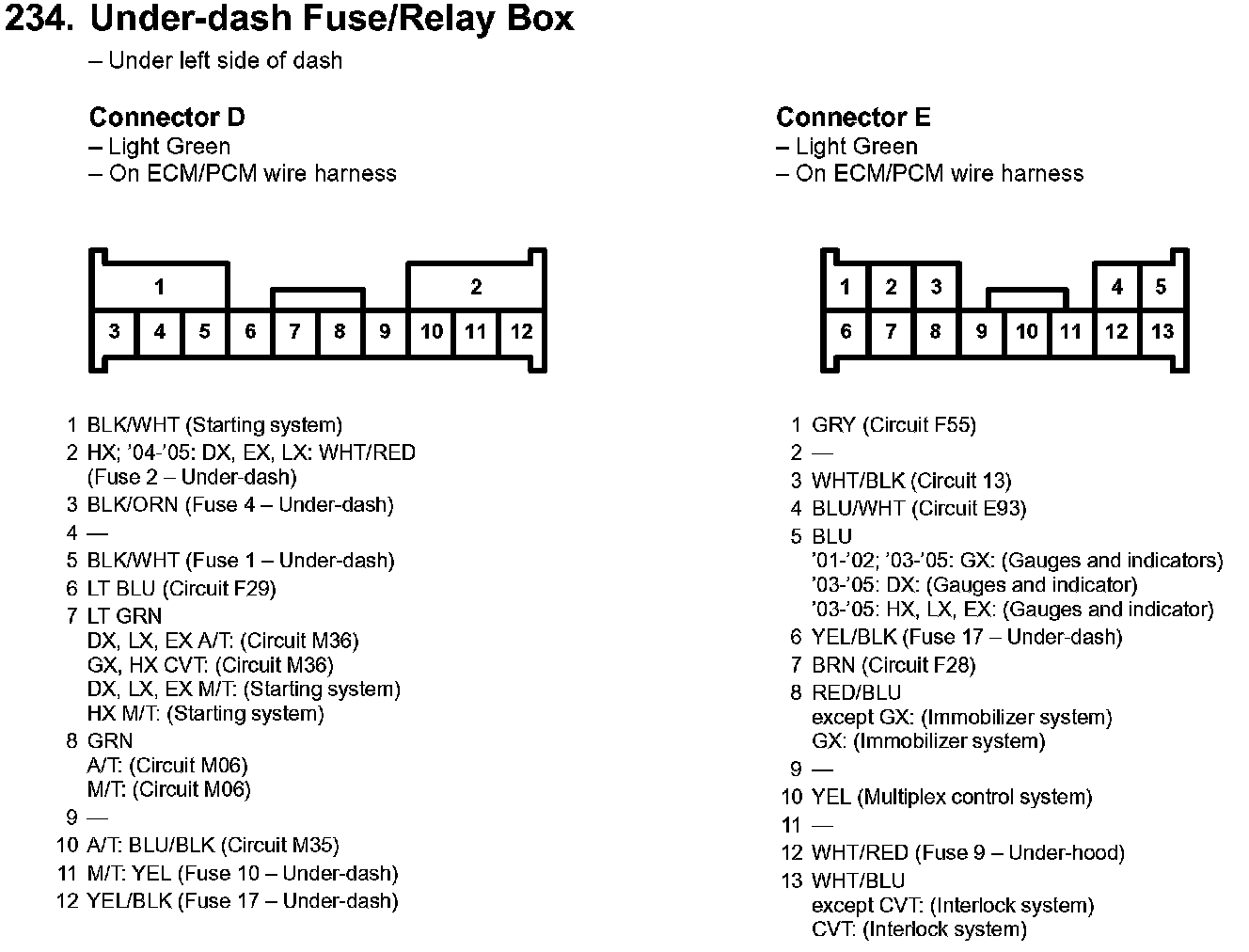

234. Under-dash Fuse/Relay Box Part 1:

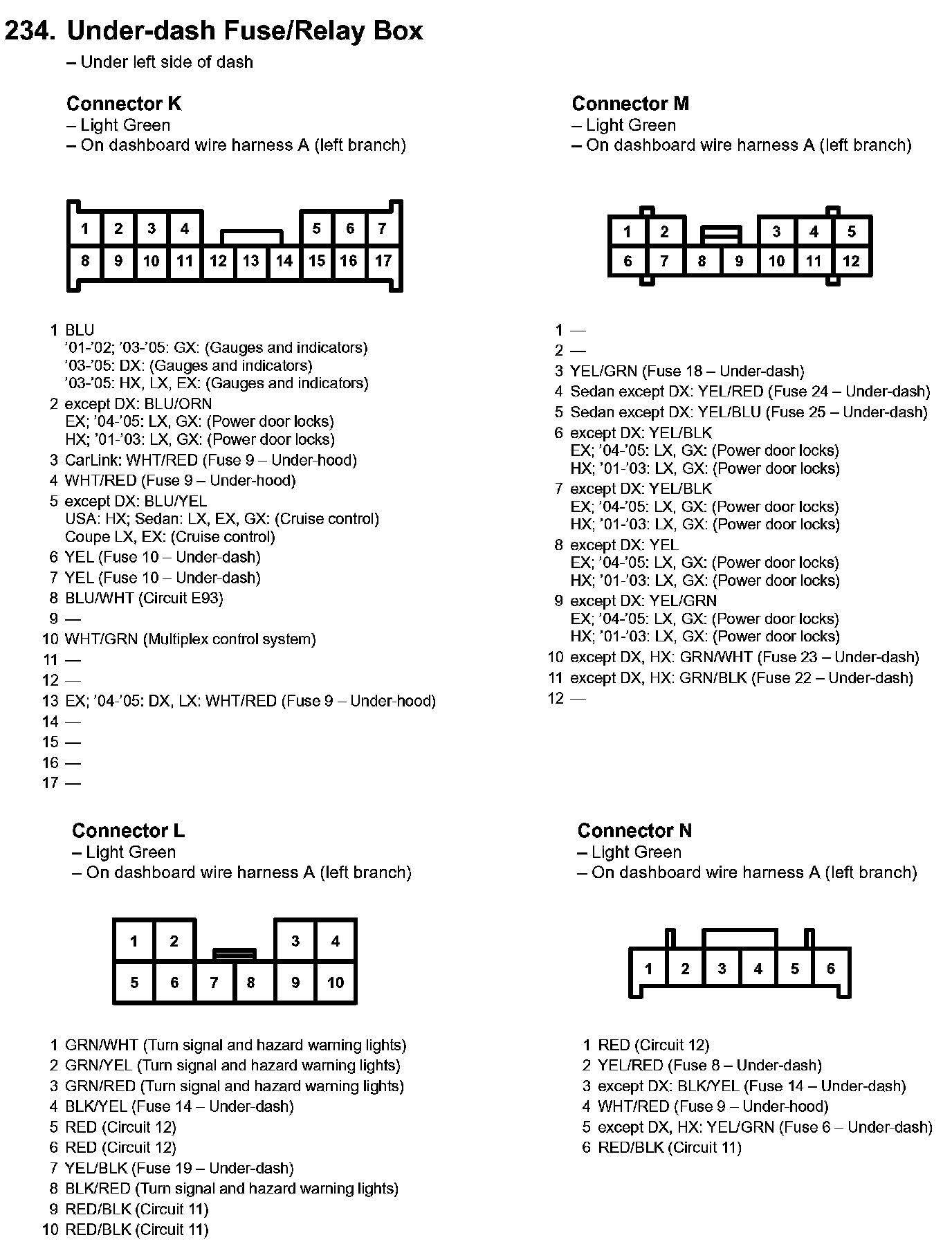

234. Under-dash Fuse/Relay Box Part 2:

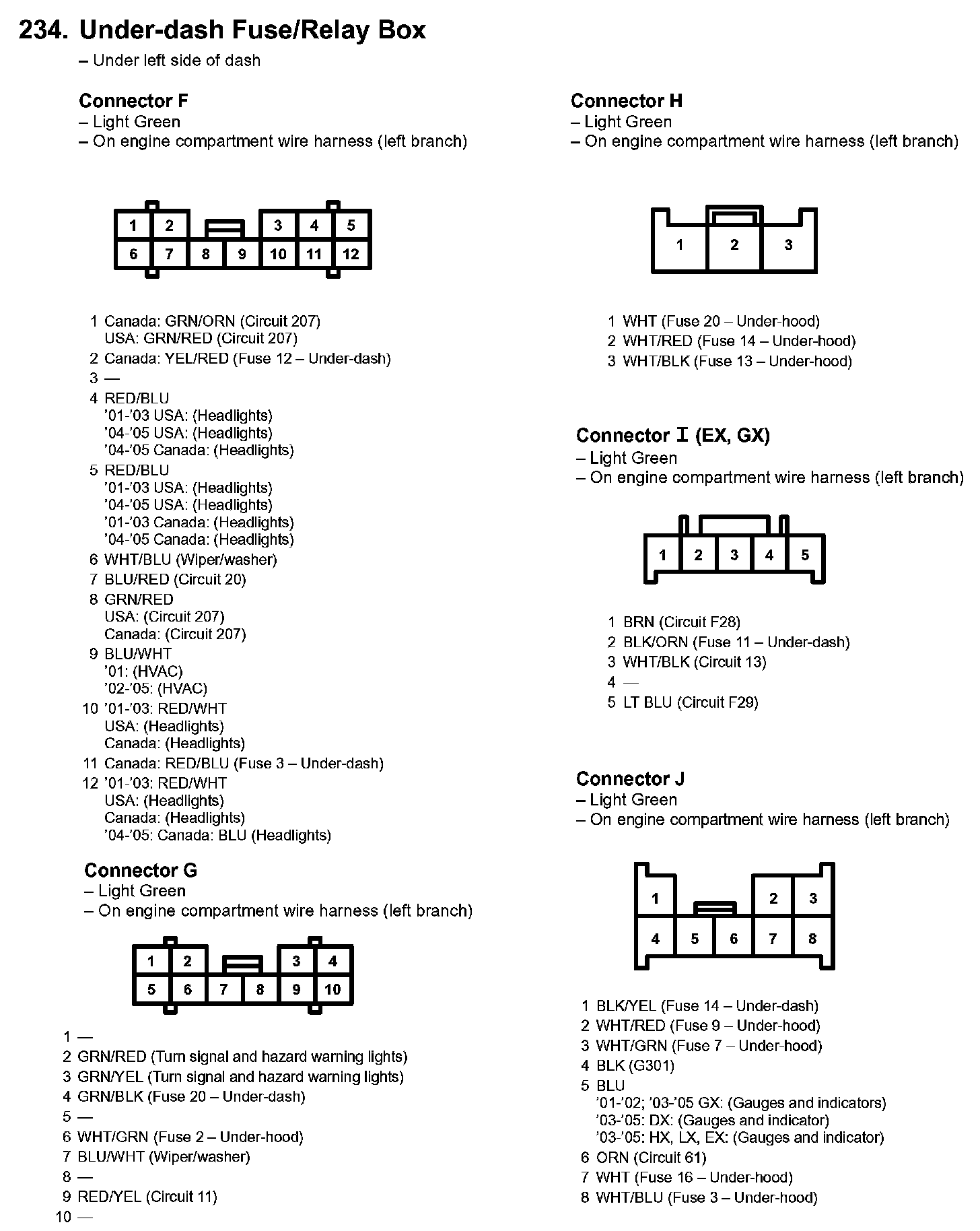

234. Under-dash Fuse/Relay Box Part 3:

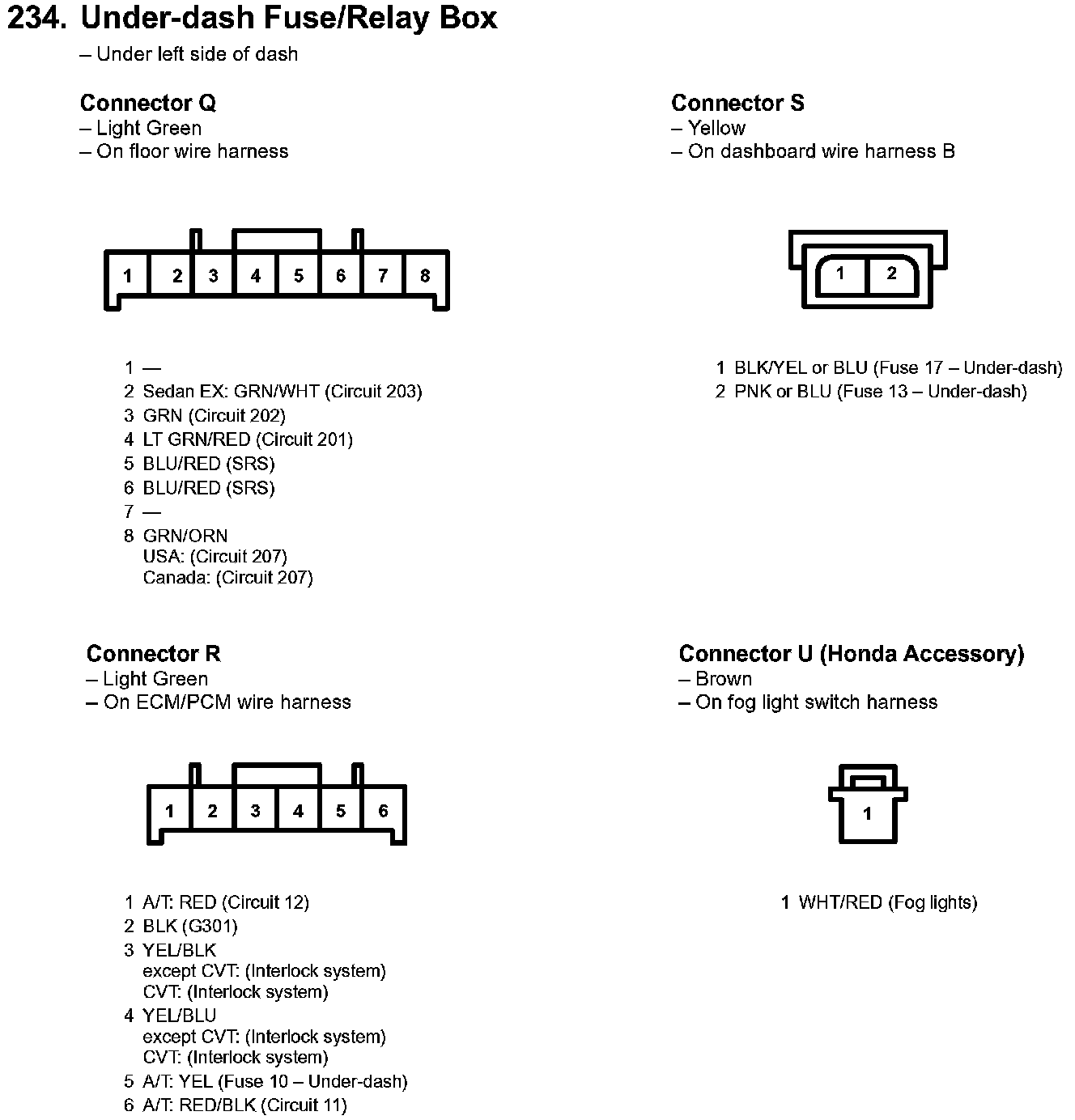

234. Under-dash Fuse/Relay Box Part 4:

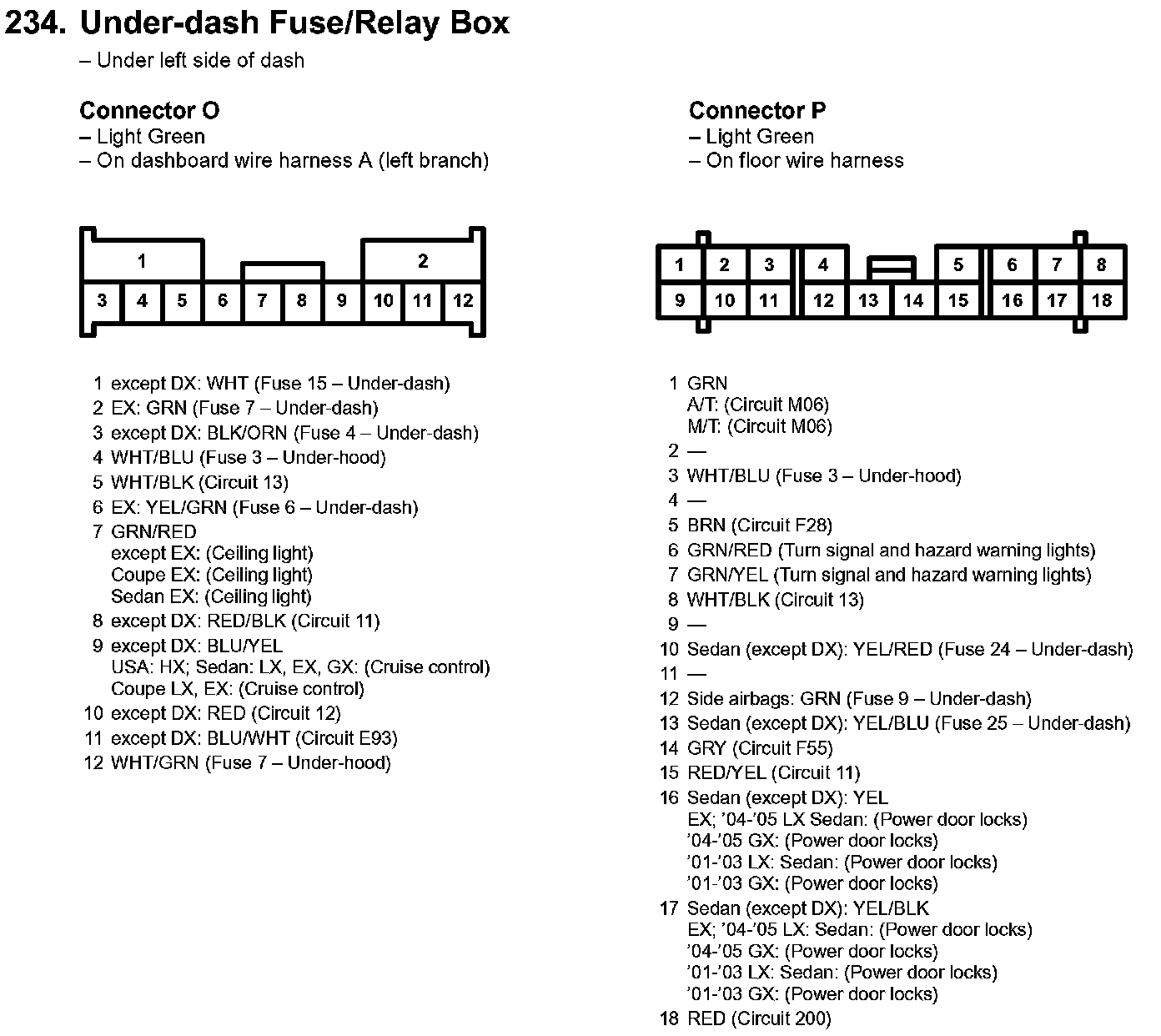

234. Under-dash Fuse/Relay Box Part 5:

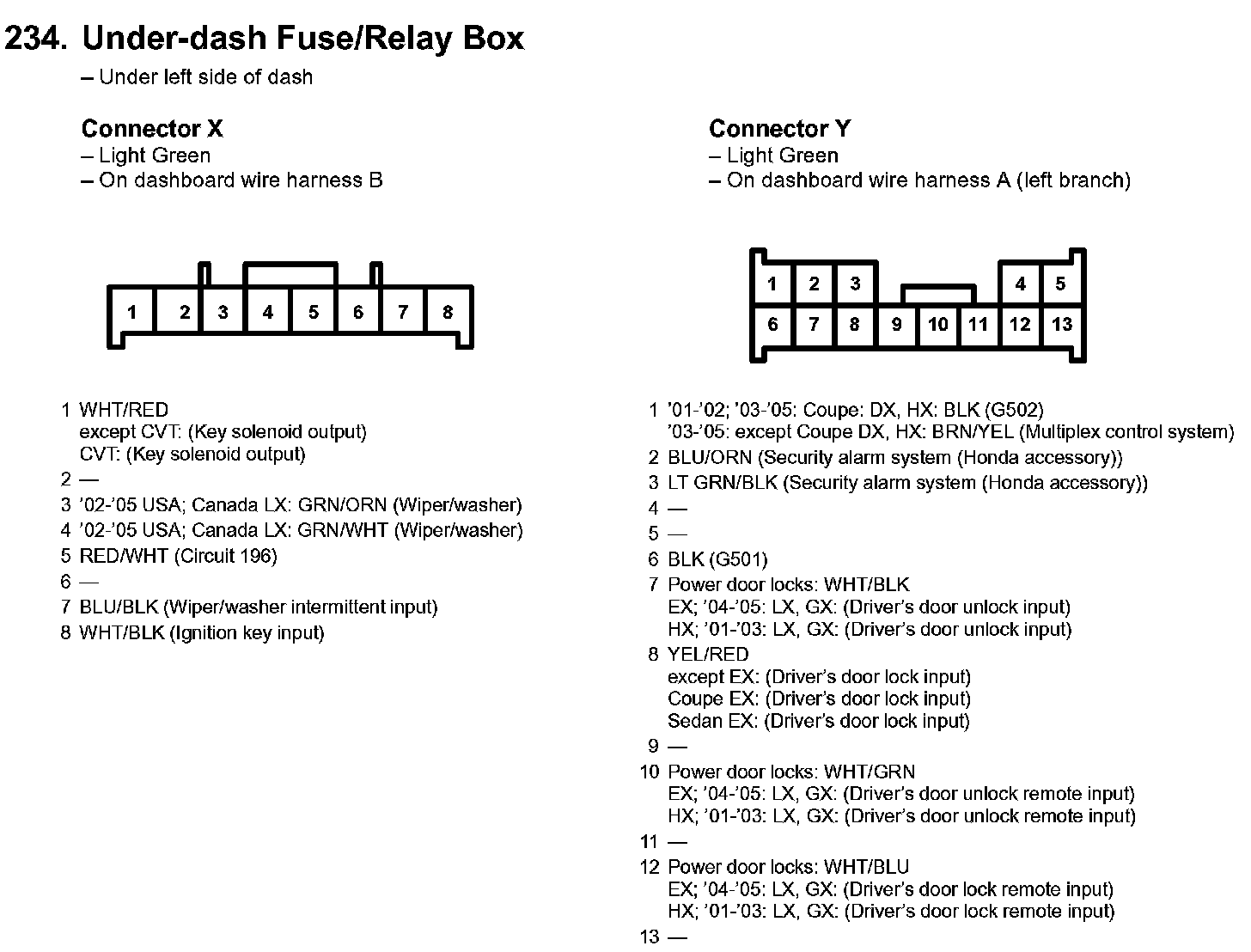

234. Under-dash Fuse/Relay Box Part 6:

234. Under-dash Fuse/Relay Box Part 7:

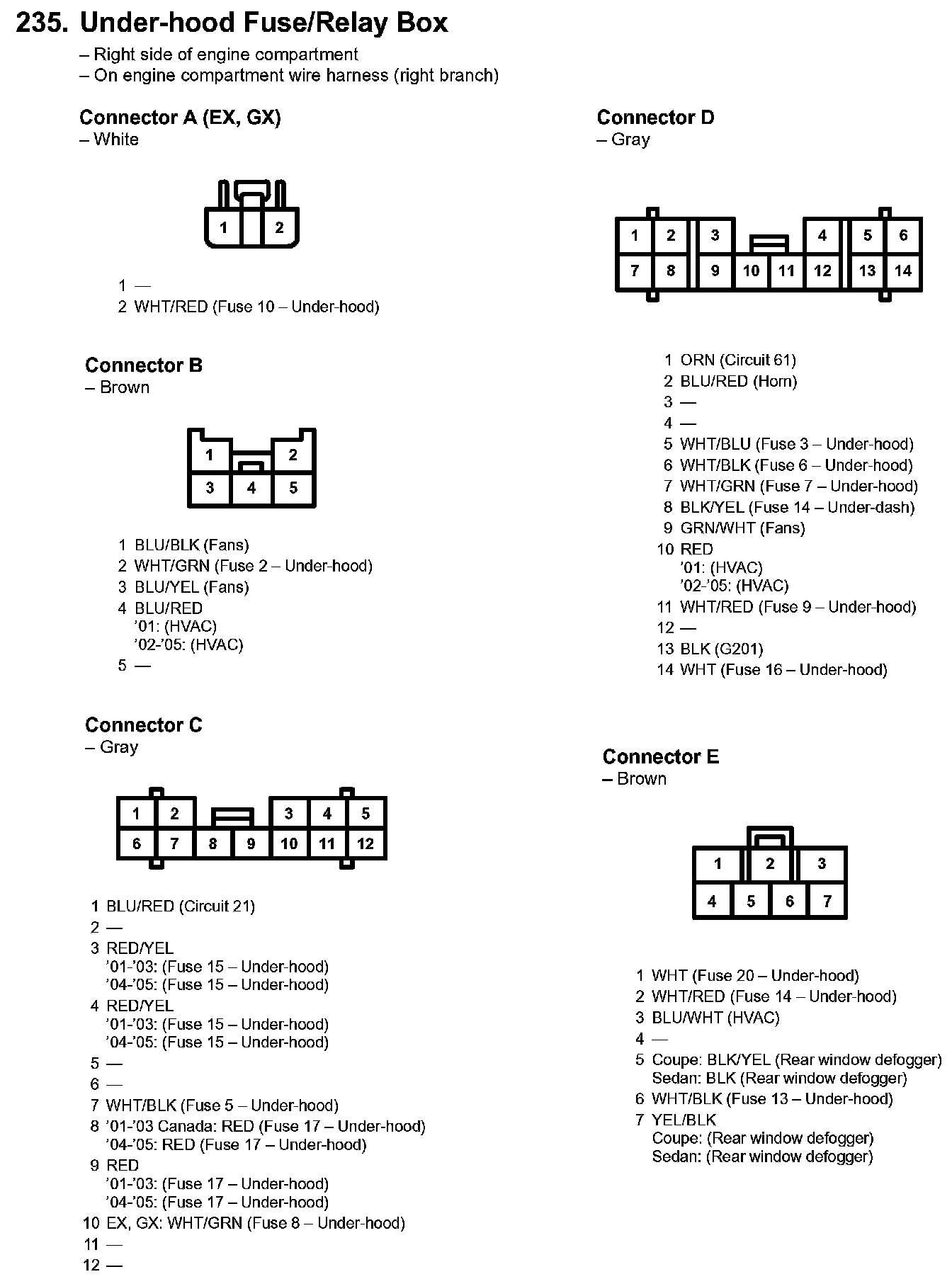

235. Under-dash Fuse/Relay Box Part 8:
