Body Control Systems: Locations

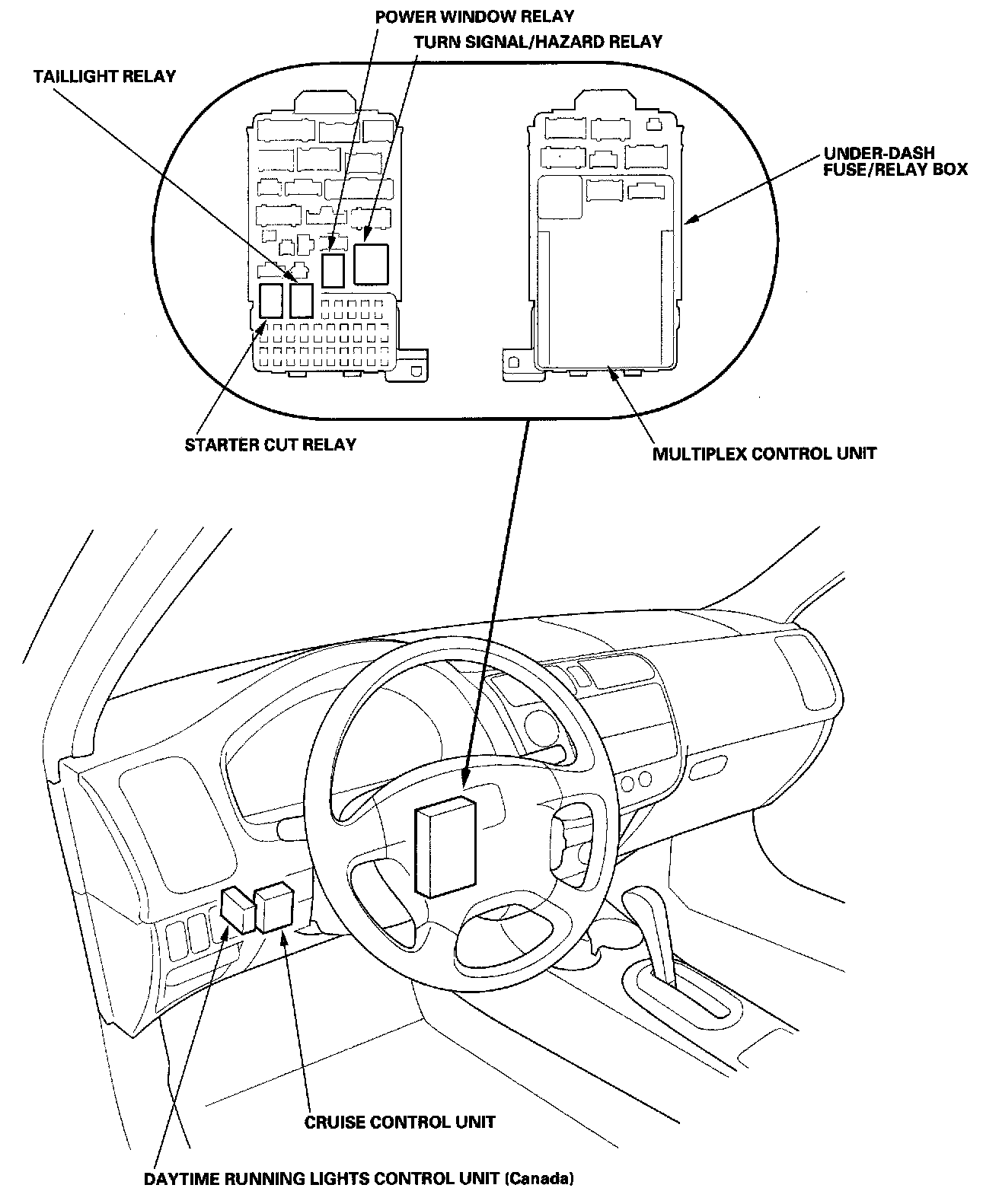

Relay And Control Unit Locations - Dashboard:

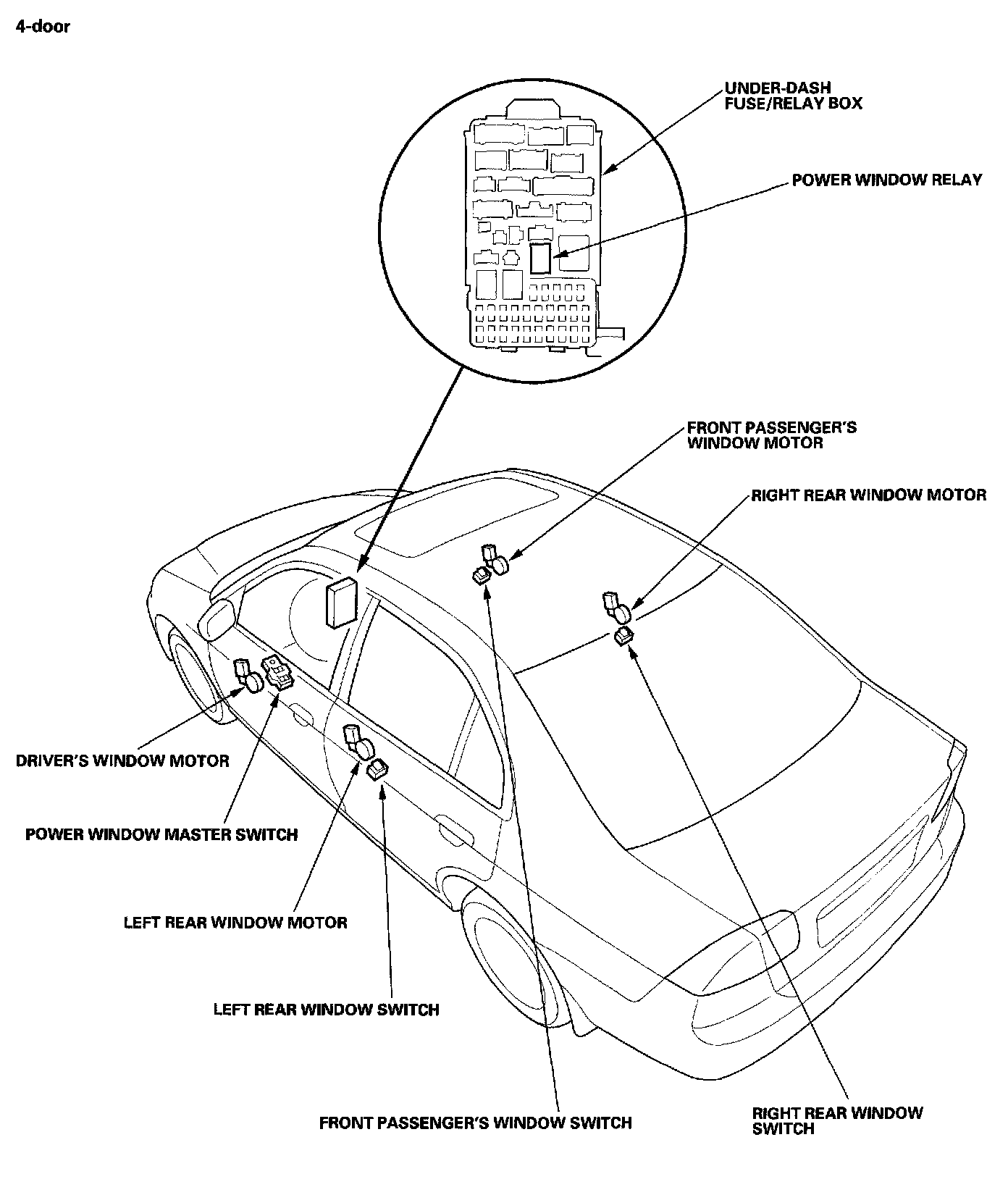

Power Windows Component Location Index:

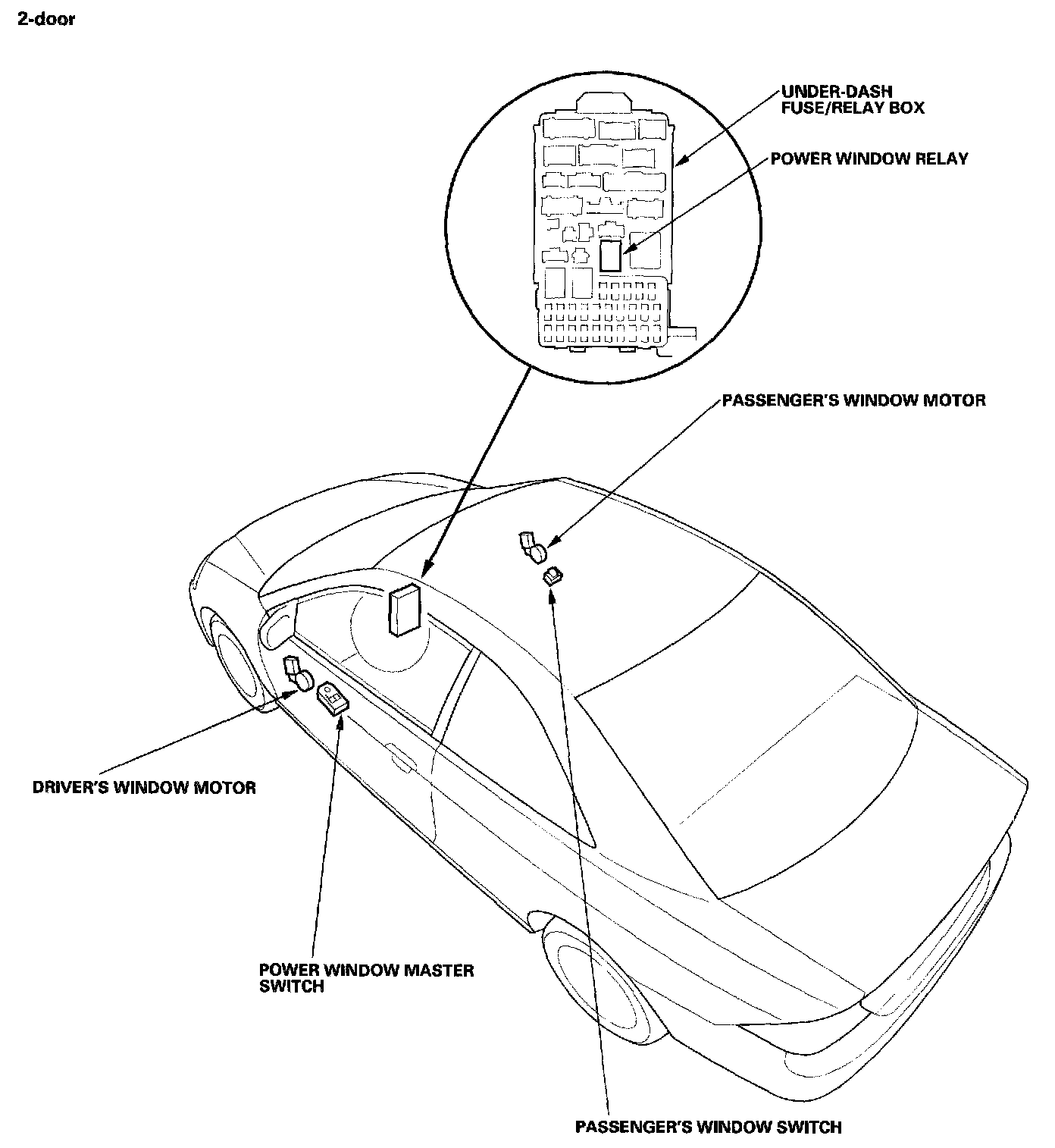

Power Windows Component Location Index:

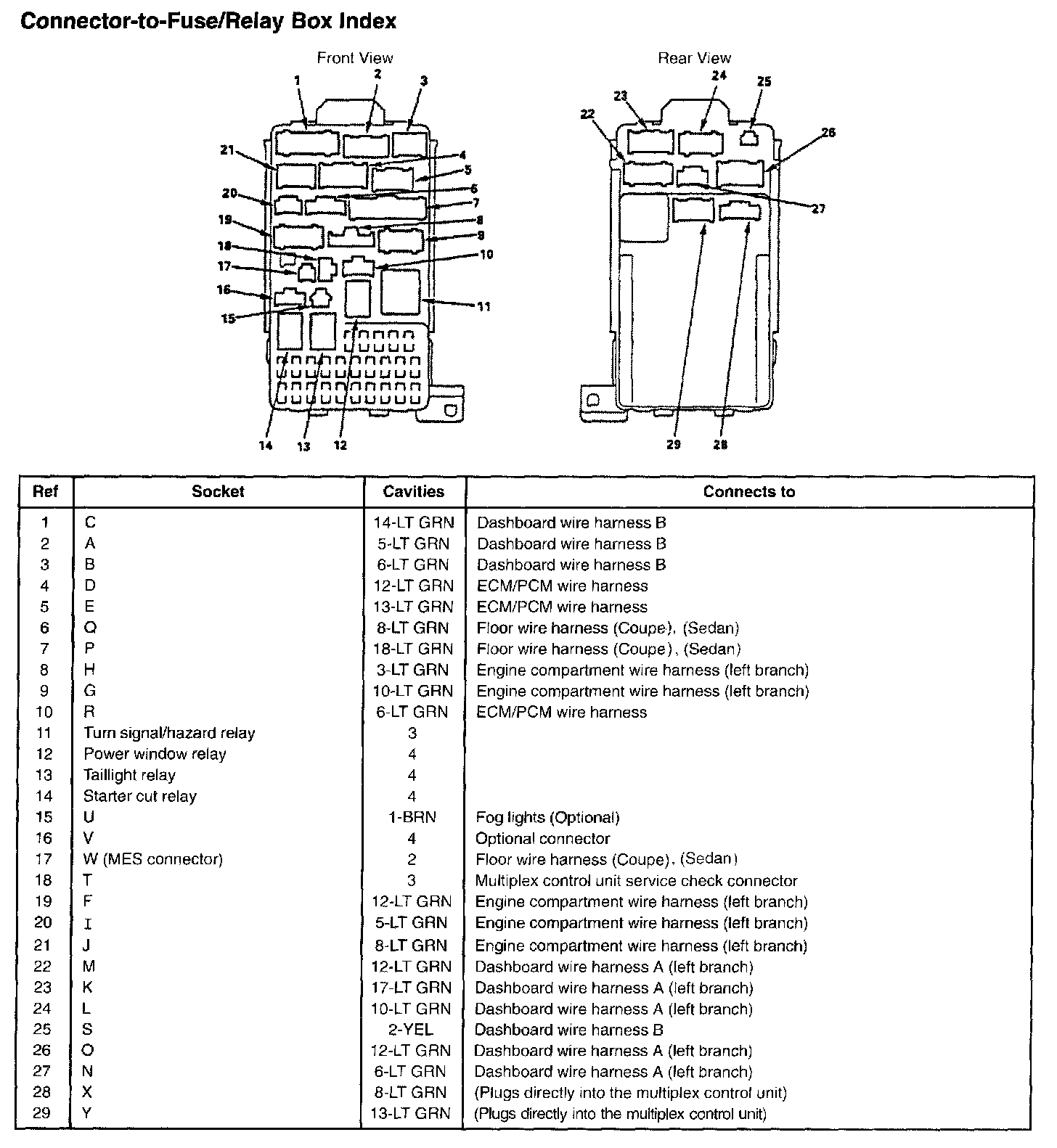

Under-dash Fuse/Relay Box:
