ECM/PCM Circuit Diagram

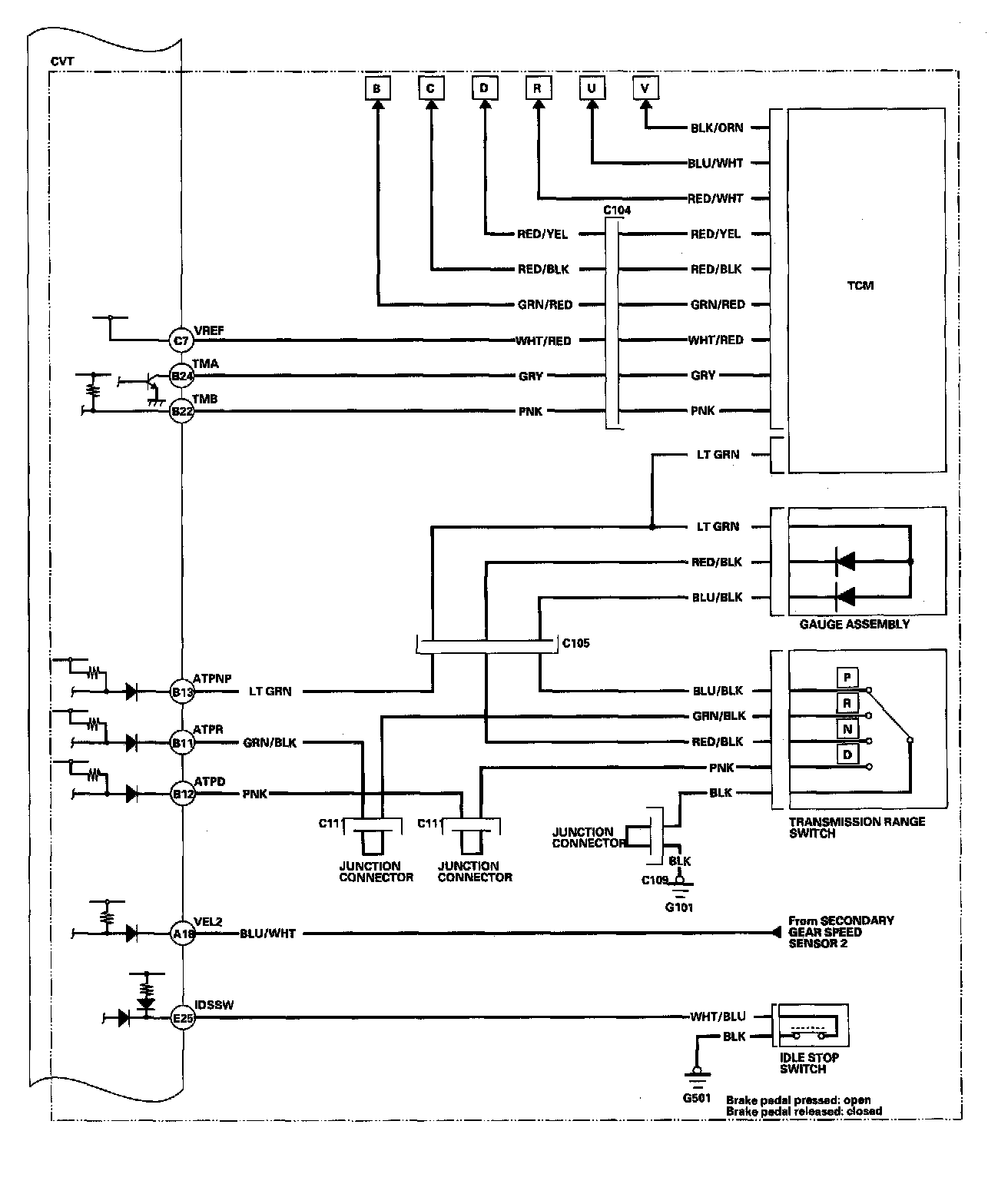

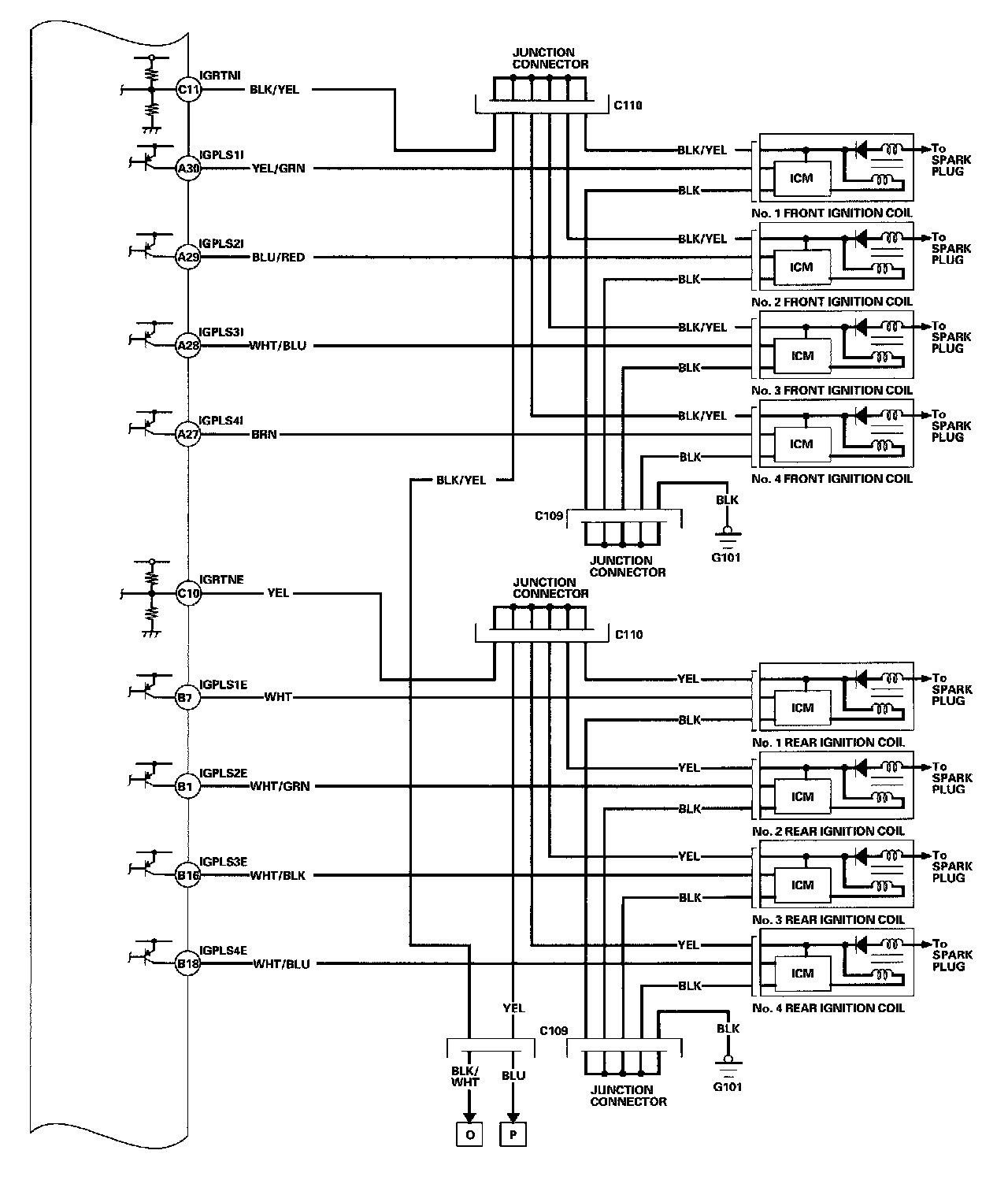

ECM Circuit Diagram 11-44:

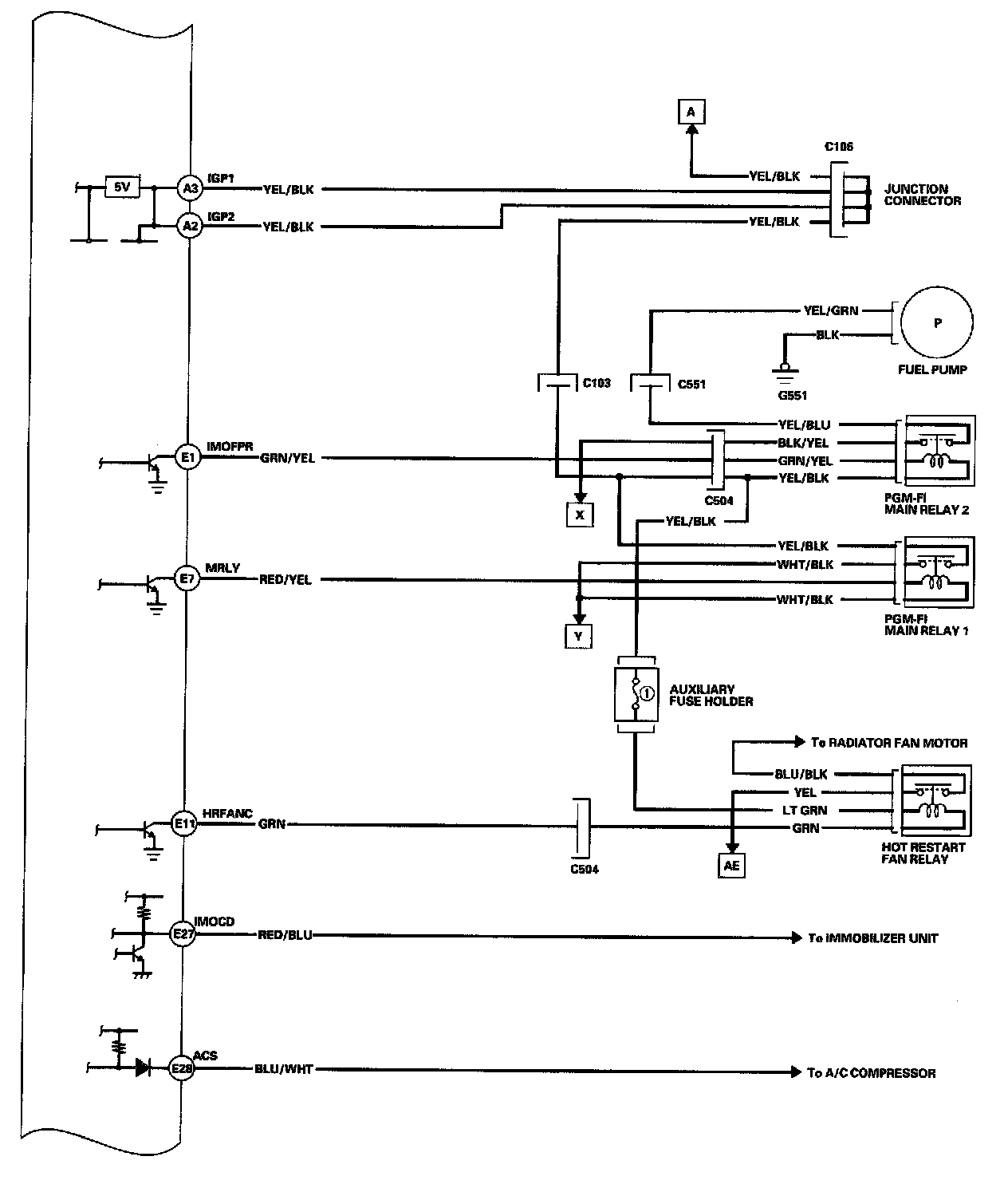

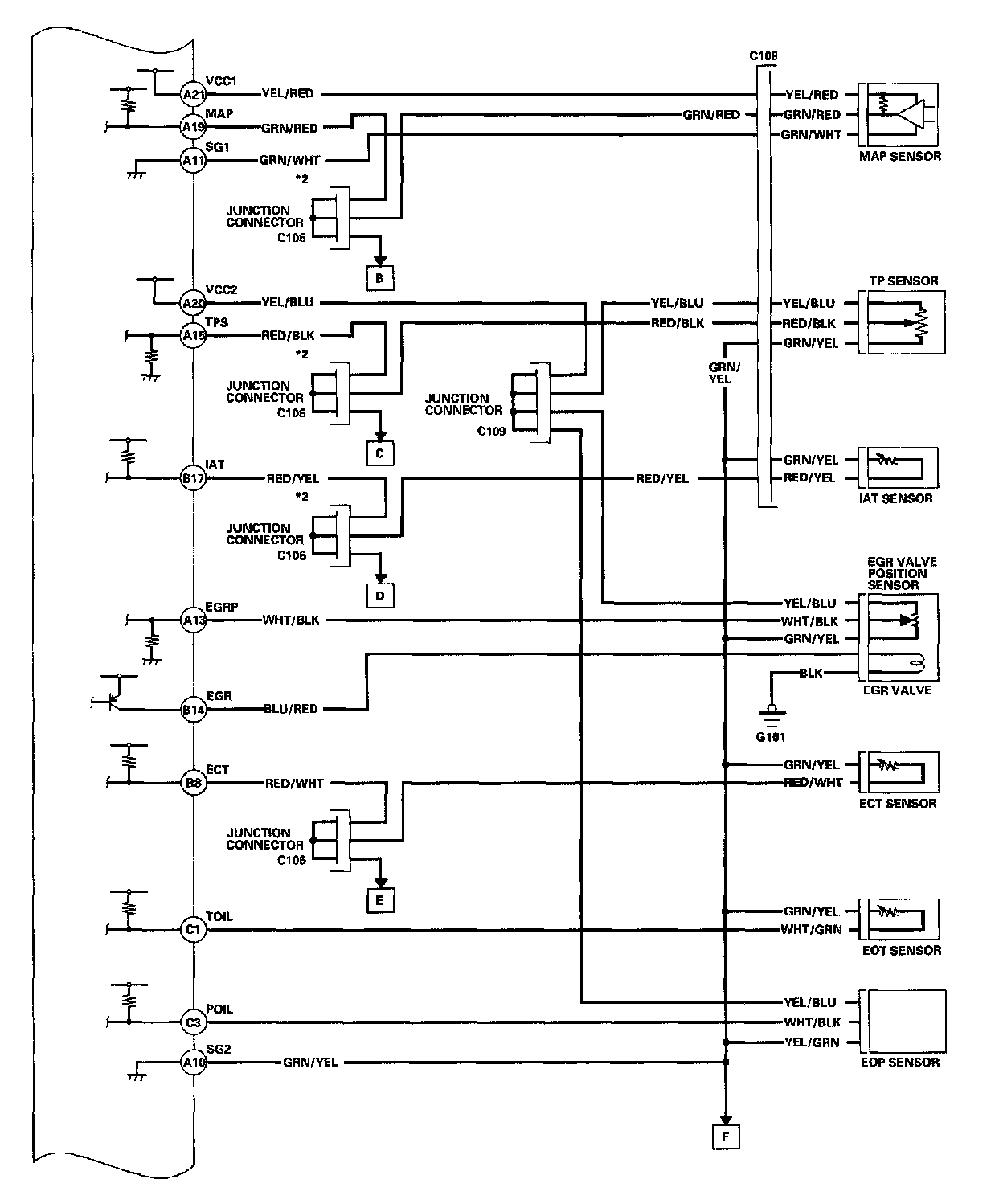

ECM Circuit Diagram 11-45:

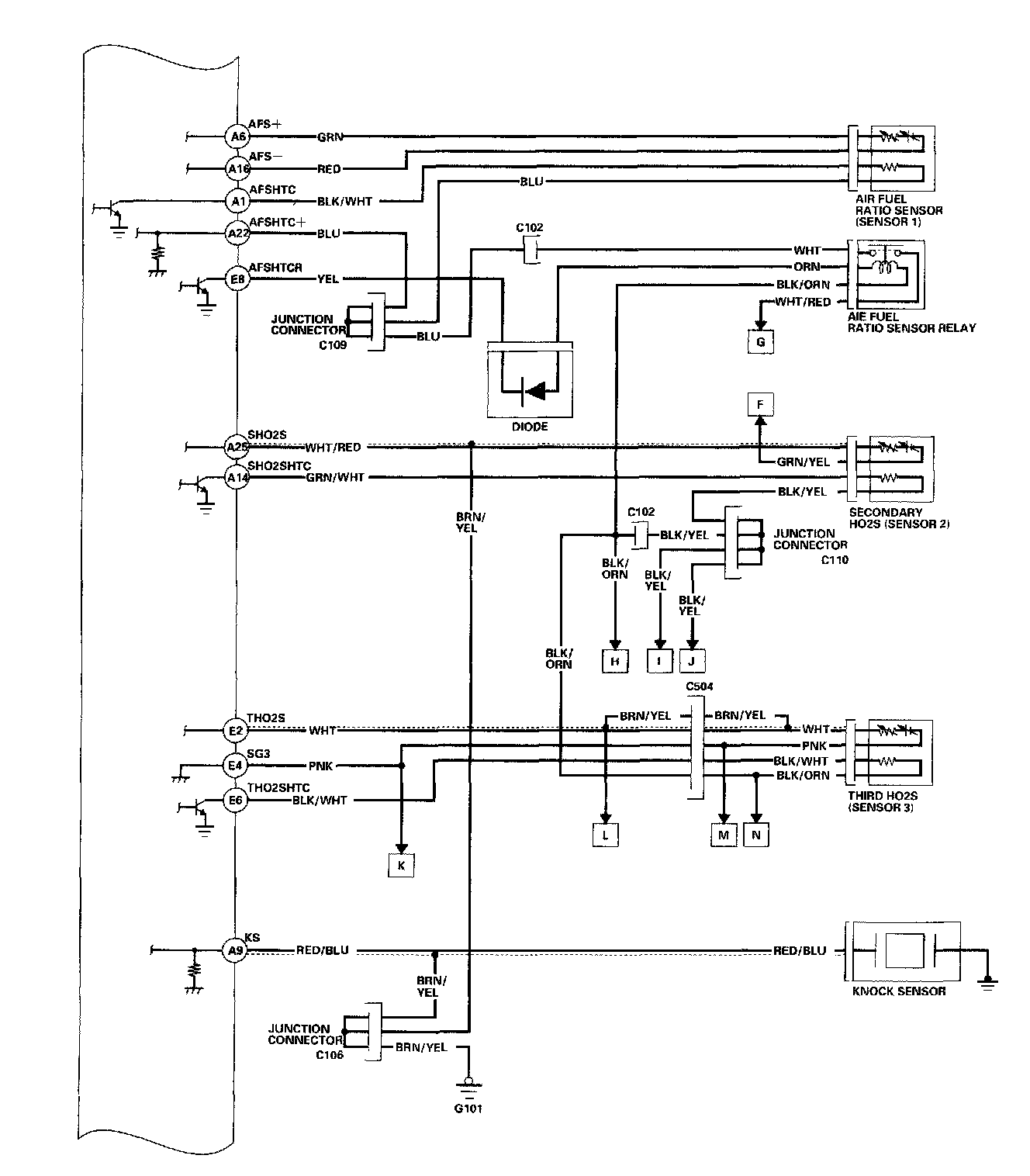

ECM Circuit Diagram 11-46:

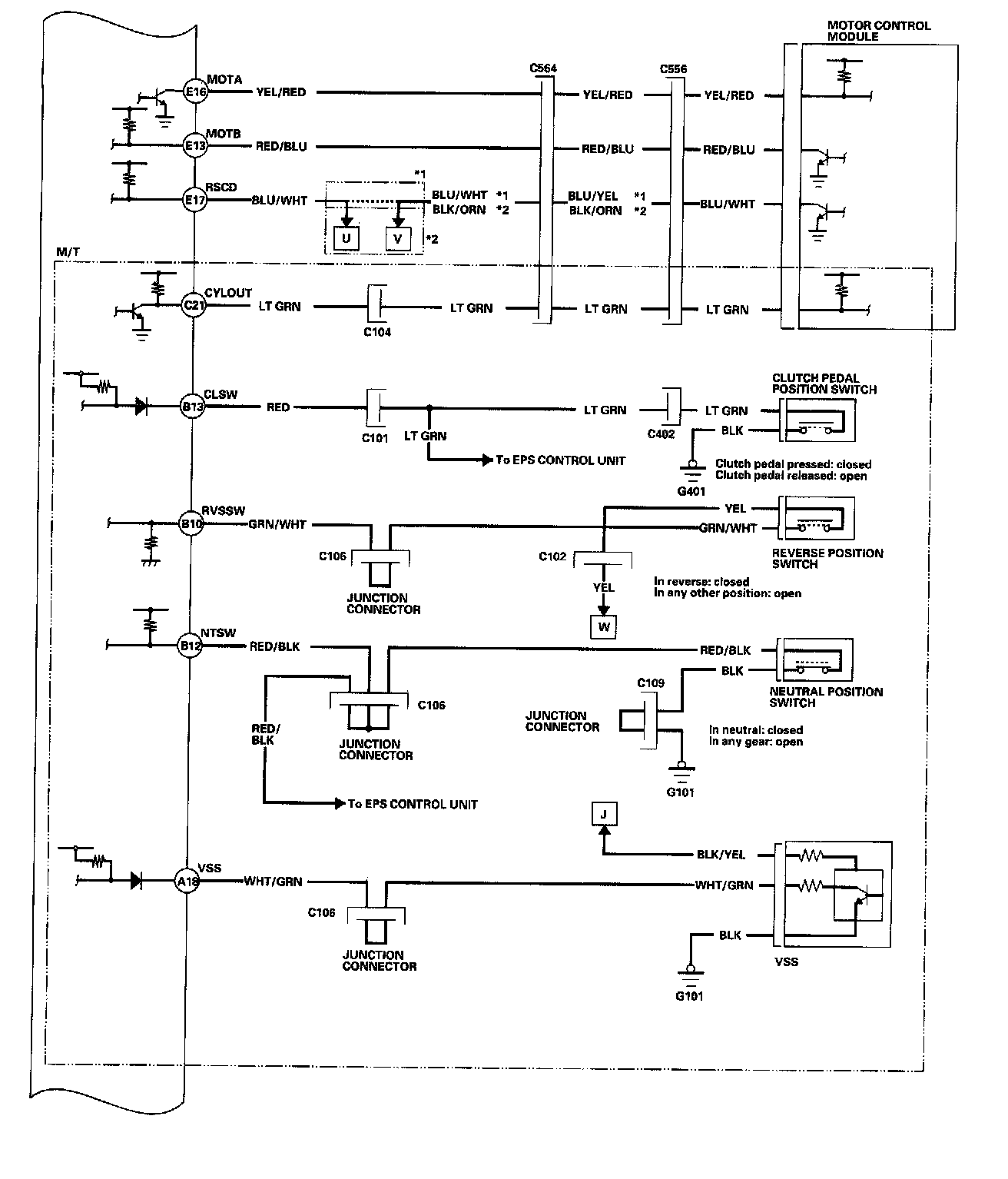

ECM Circuit Diagram 11-47:

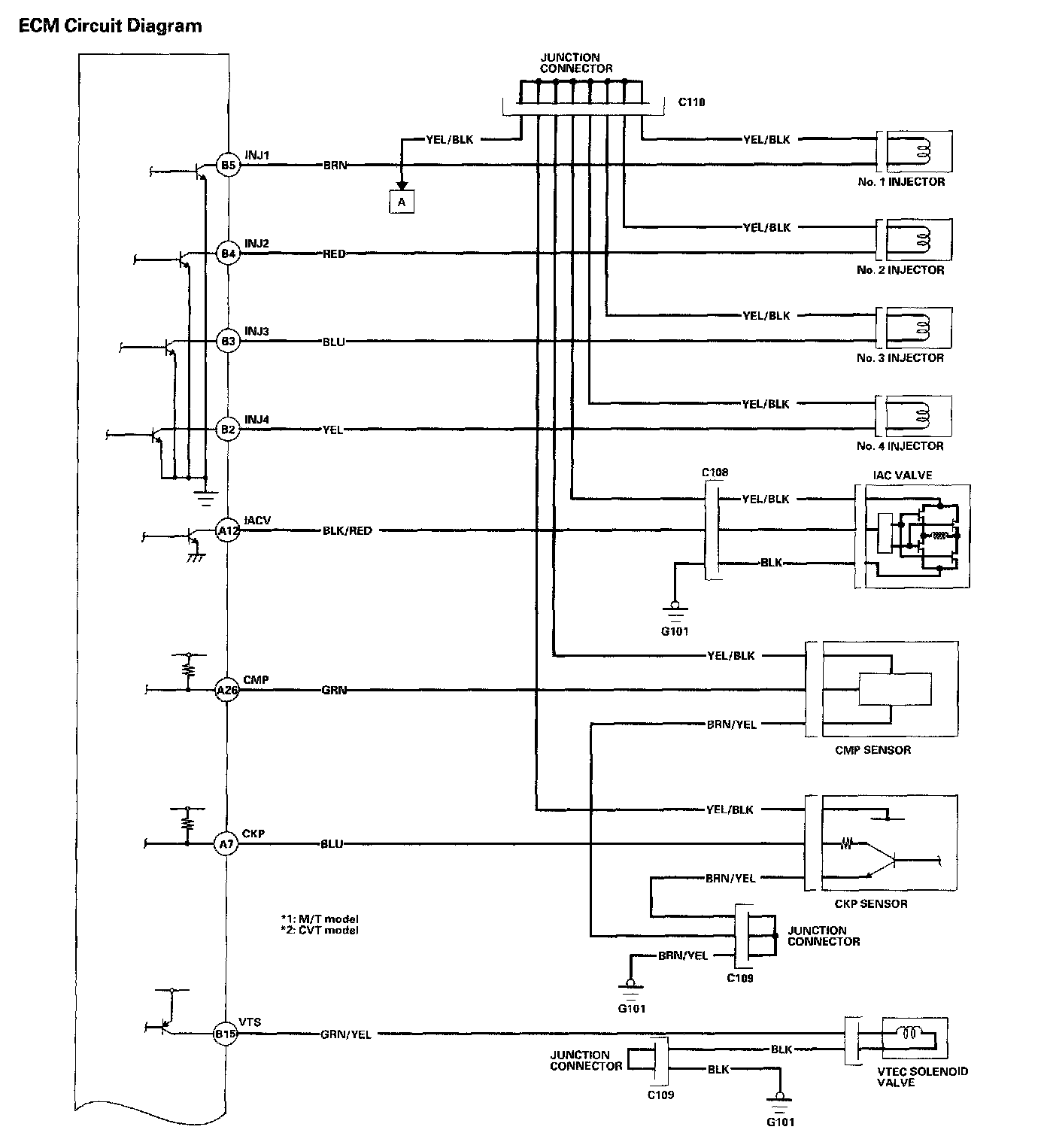

ECM Circuit Diagram 11-48:

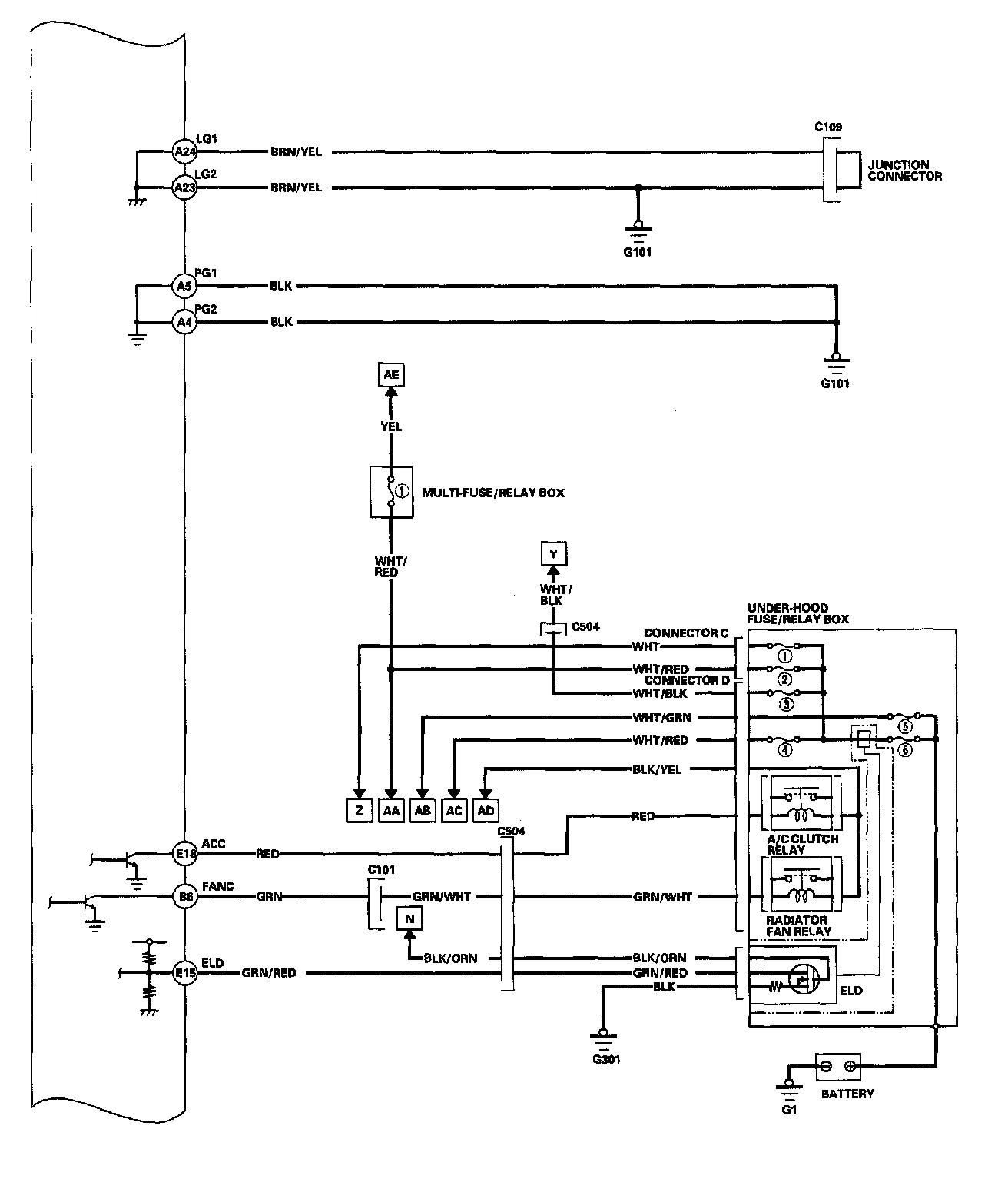

ECM Circuit Diagram 11-49:

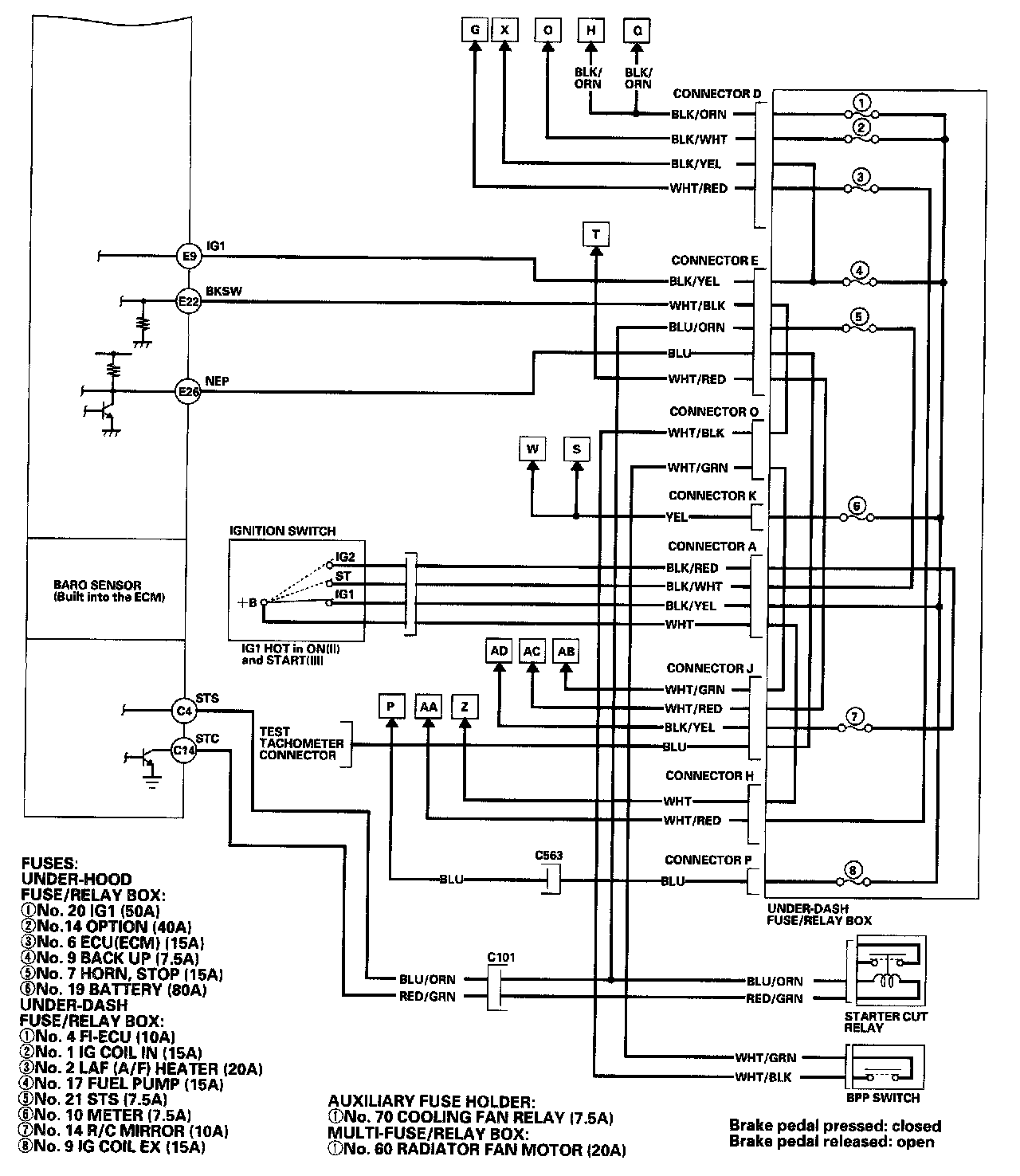

ECM Circuit Diagram 11-50:

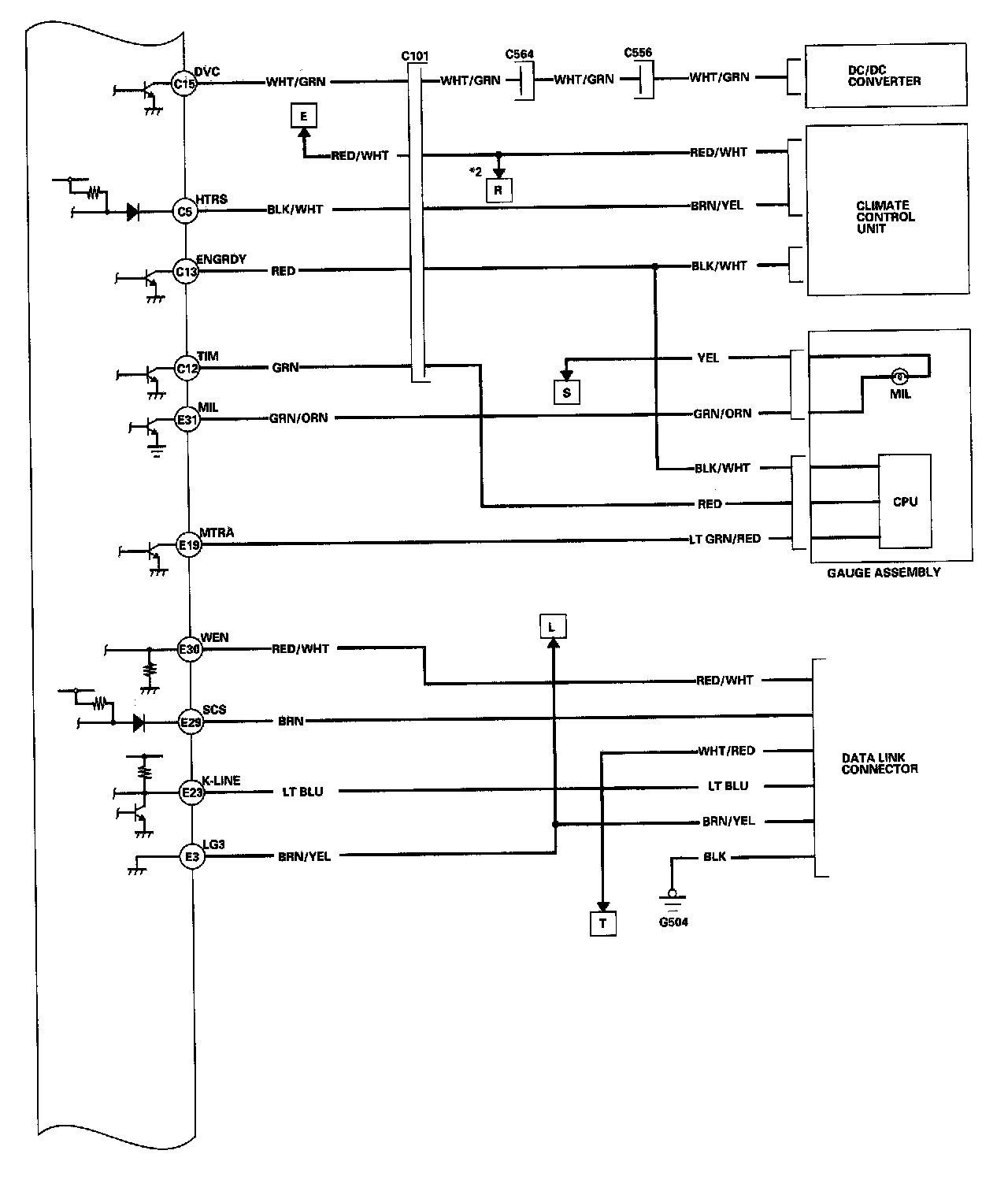

ECM Circuit Diagram 11-51:




ECM Circuit Diagram 11-52:




ECM Circuit Diagram 11-53:




ECM Circuit Diagram 11-54:
