Information Bus: Locations

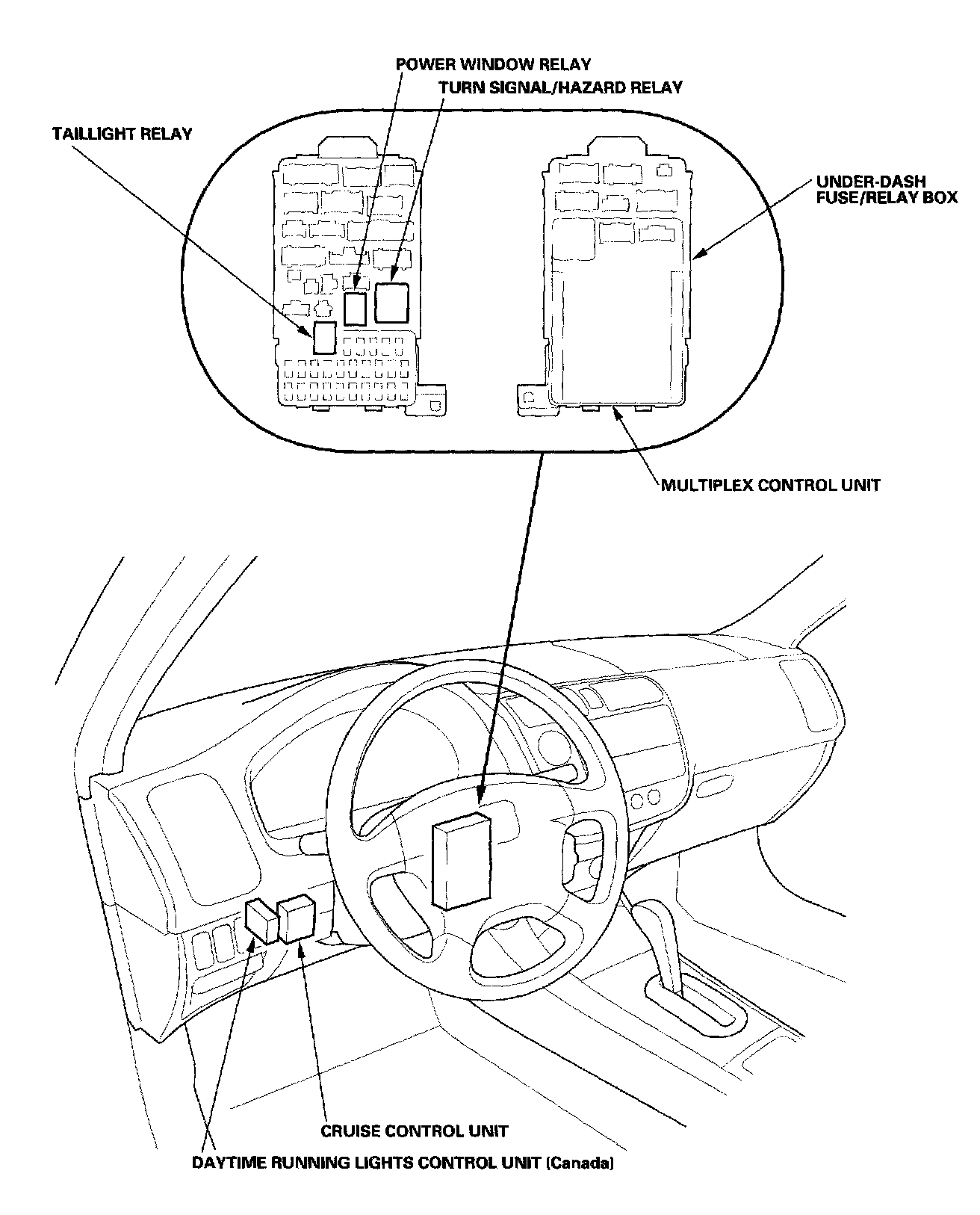

Relay And Control Unit Locations - Dashboard:



Multiplex Control System - Component Location System:

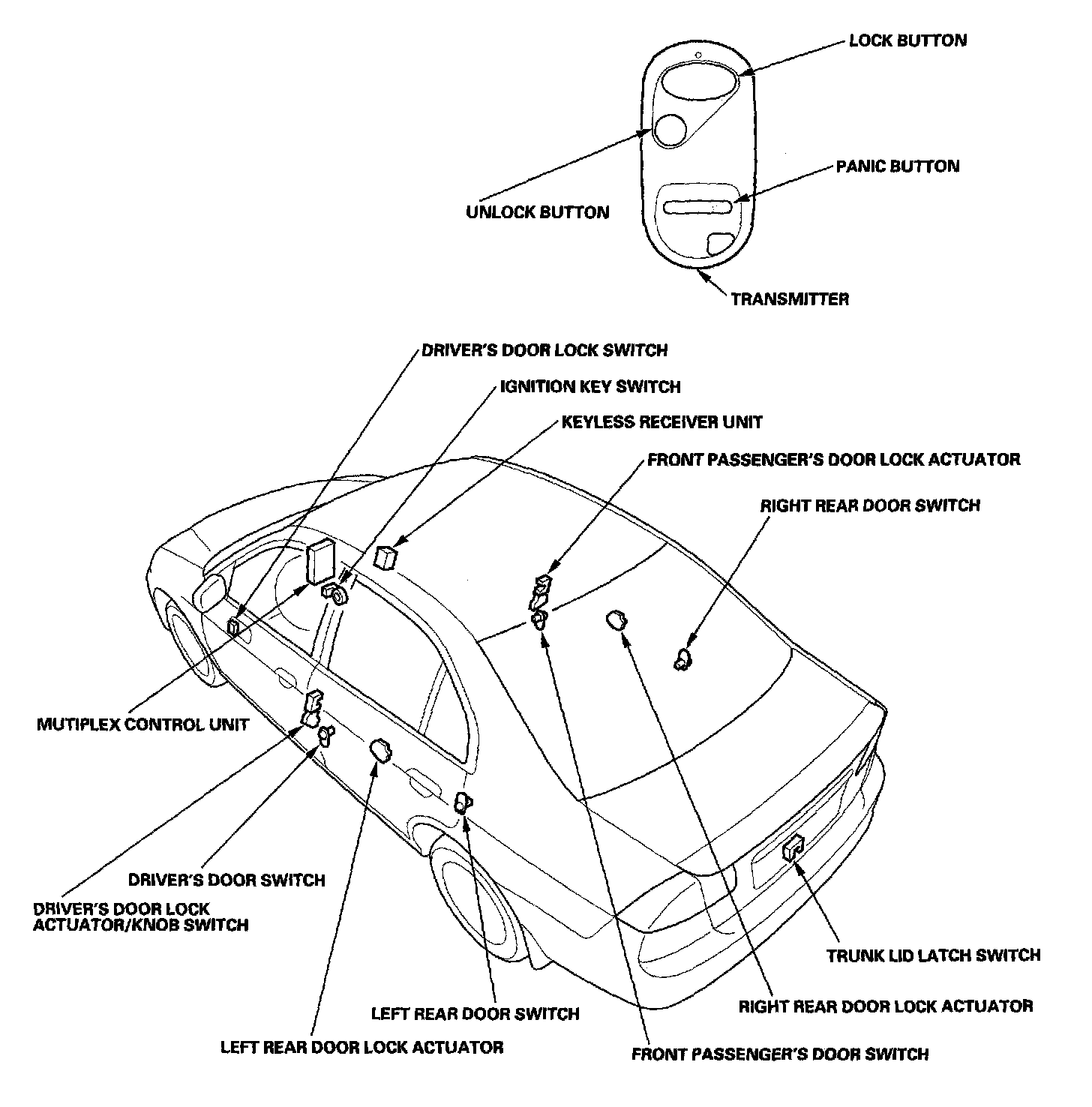

Keyless/Power Door Lock System - Component Location Index:
