Fluid Leakage Inspection

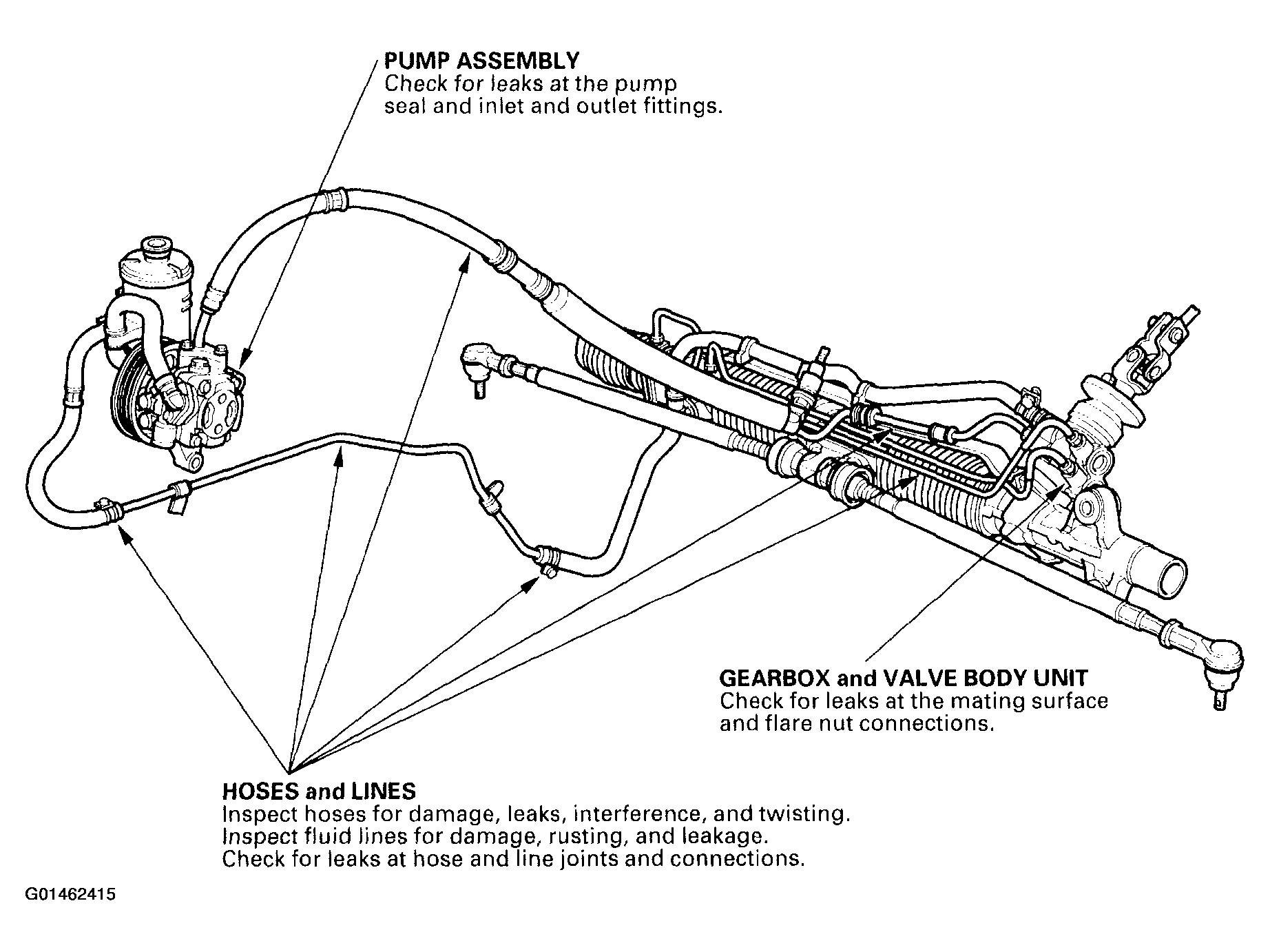

Fig 1: Identifying Fluid Leakage Components

G01462415

Courtesy of AMERICAN HONDA MOTOR CO., INC.
