Engine Compartment

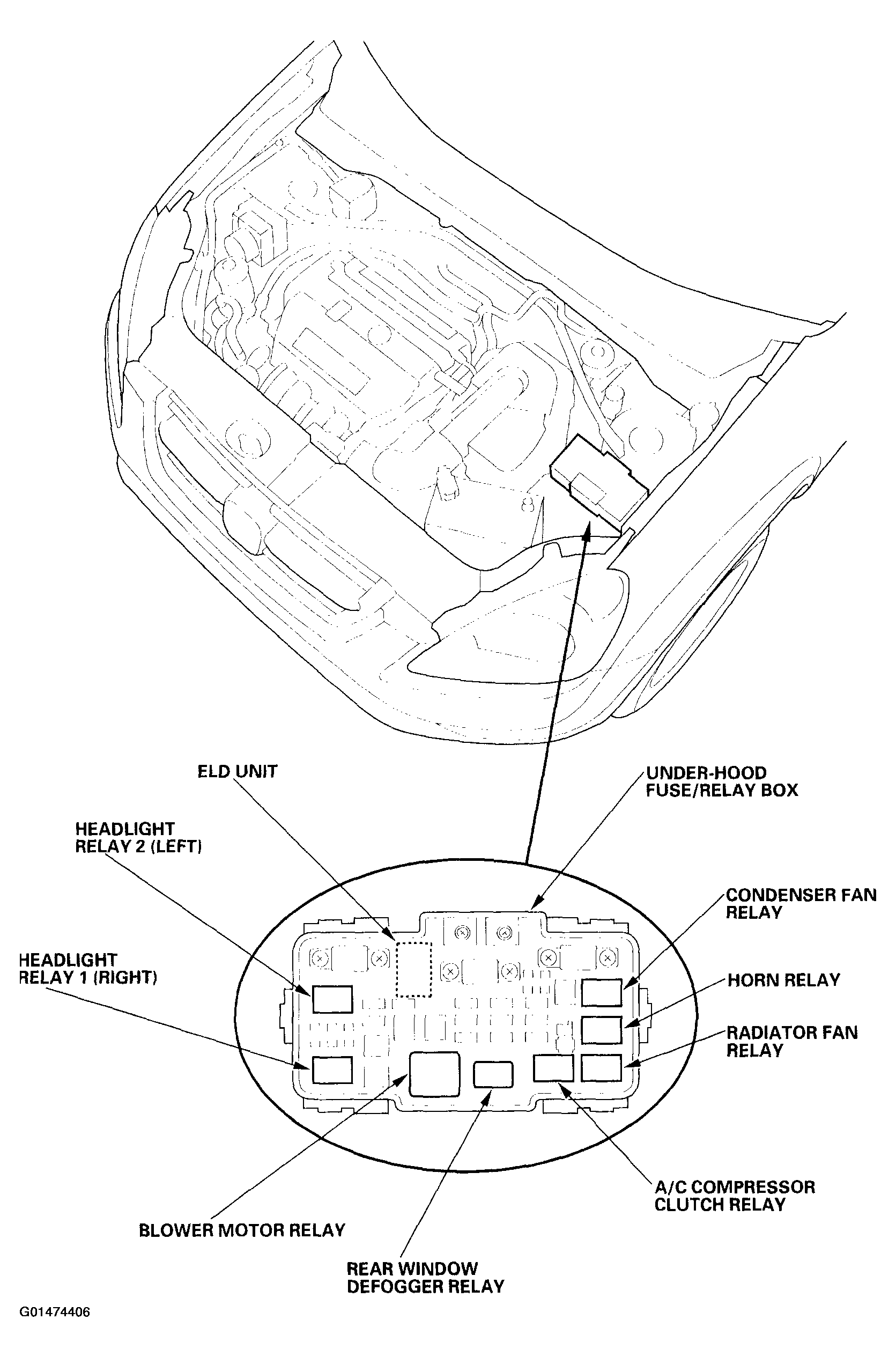

Fig 1: Identifying Engine Compartment Relay & Control Unit Harnesses
G01474406Courtesy of AMERICAN HONDA MOTOR CO., INC.
