Audio Unit Connector Inputs and Outputs

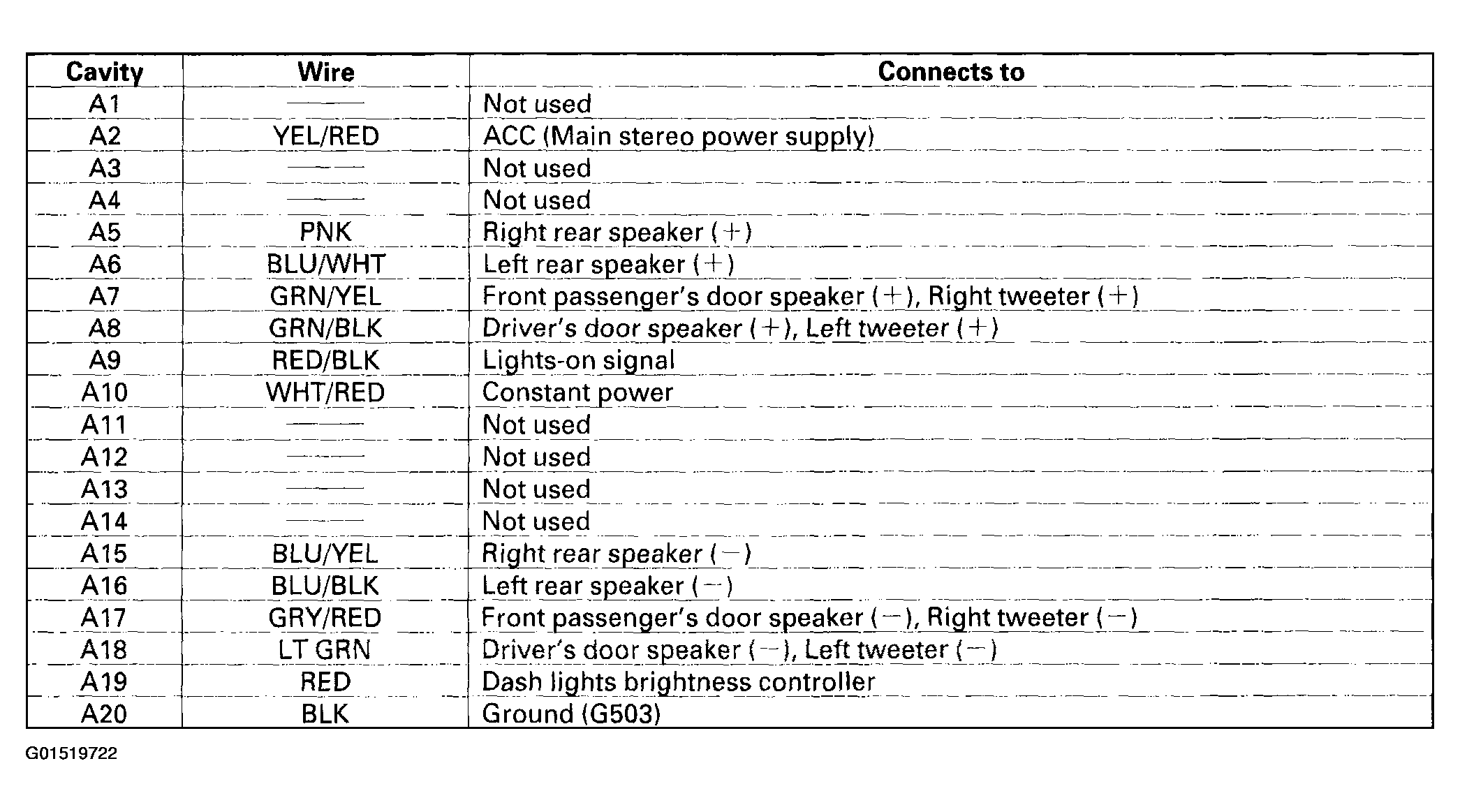

Fig 1: Audio Unit Connector Inputs & Outputs Chart
G01519722Courtesy of AMERICAN HONDA MOTOR CO., INC.

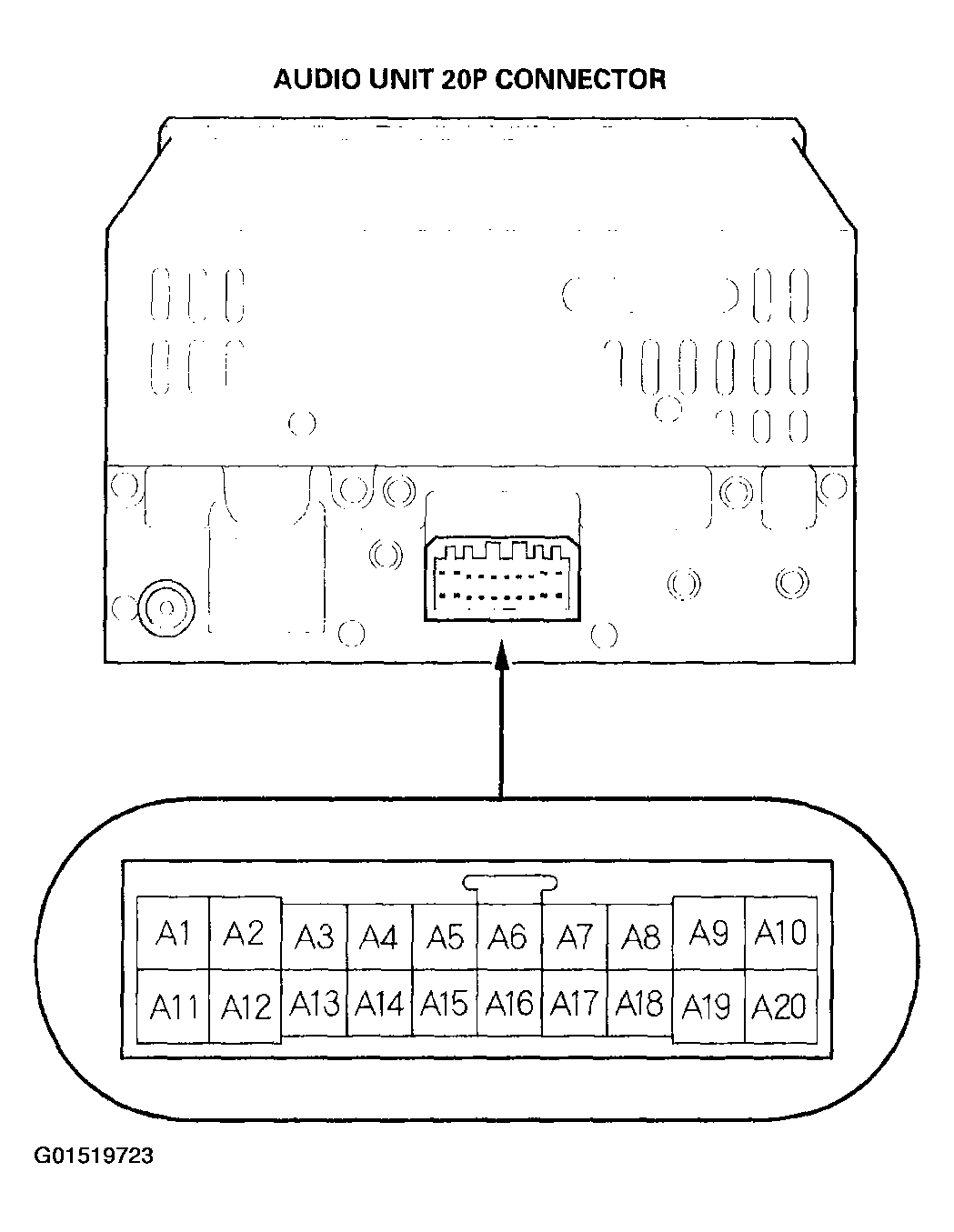

Fig 2: Identifying Audio Unit Connector Inputs & Outputs
G01519723Courtesy of AMERICAN HONDA MOTOR CO., INC.
