Audio Unit Removal/Installation
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.
- Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
- Remove the dashboard center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).

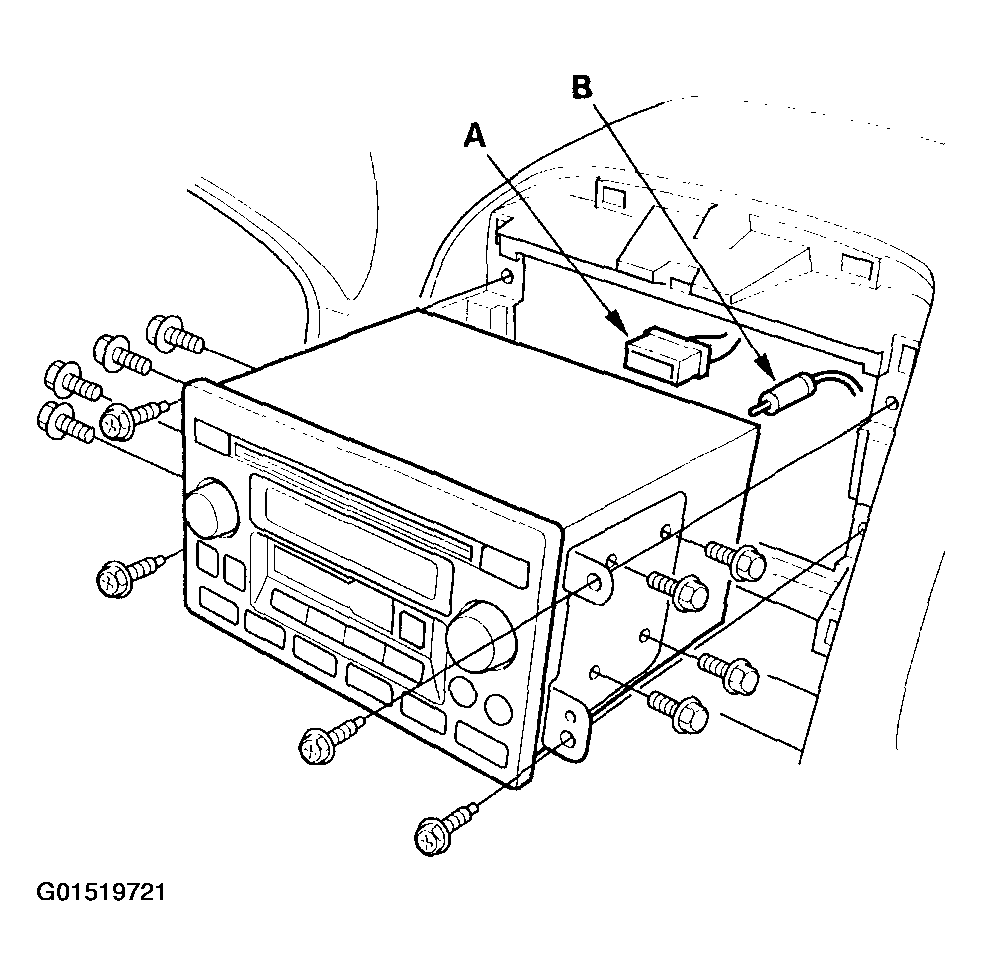

- Remove the four mounting bolts, then remove the audio unit.
- Disconnect the audio connector (A) and antenna lead (B).
- Remove the eight mounting bolts securing the audio unit to the audio unit bracket.
- Install the audio unit in the reverse order of removal, and note these items:
- Make sure the audio unit connector is plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
