Component Location Index

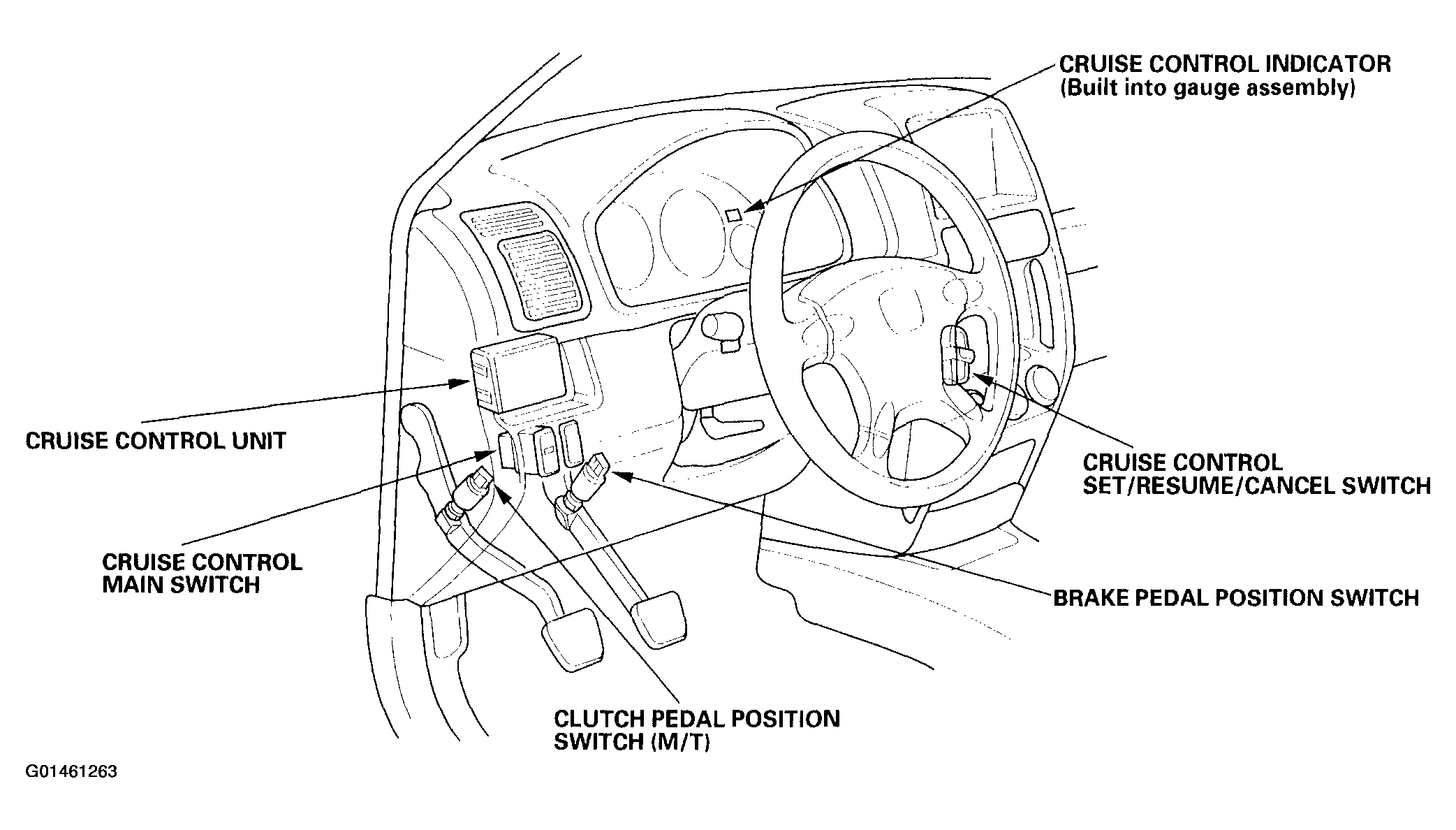

Fig 1: Identifying Cruise Control Component Locations (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

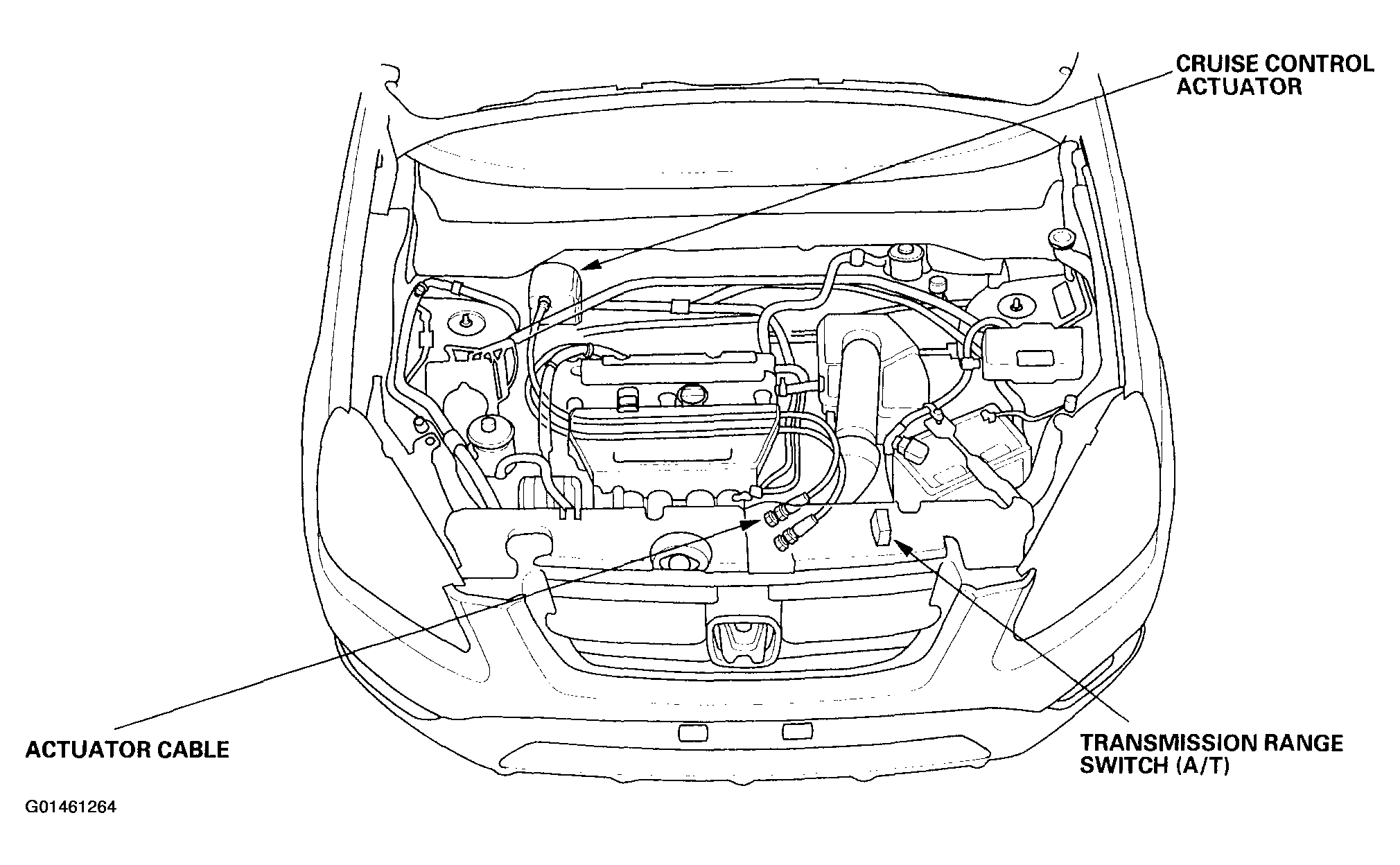

Fig 2: Identifying Cruise Control Component Locations (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
