Circuit Diagram

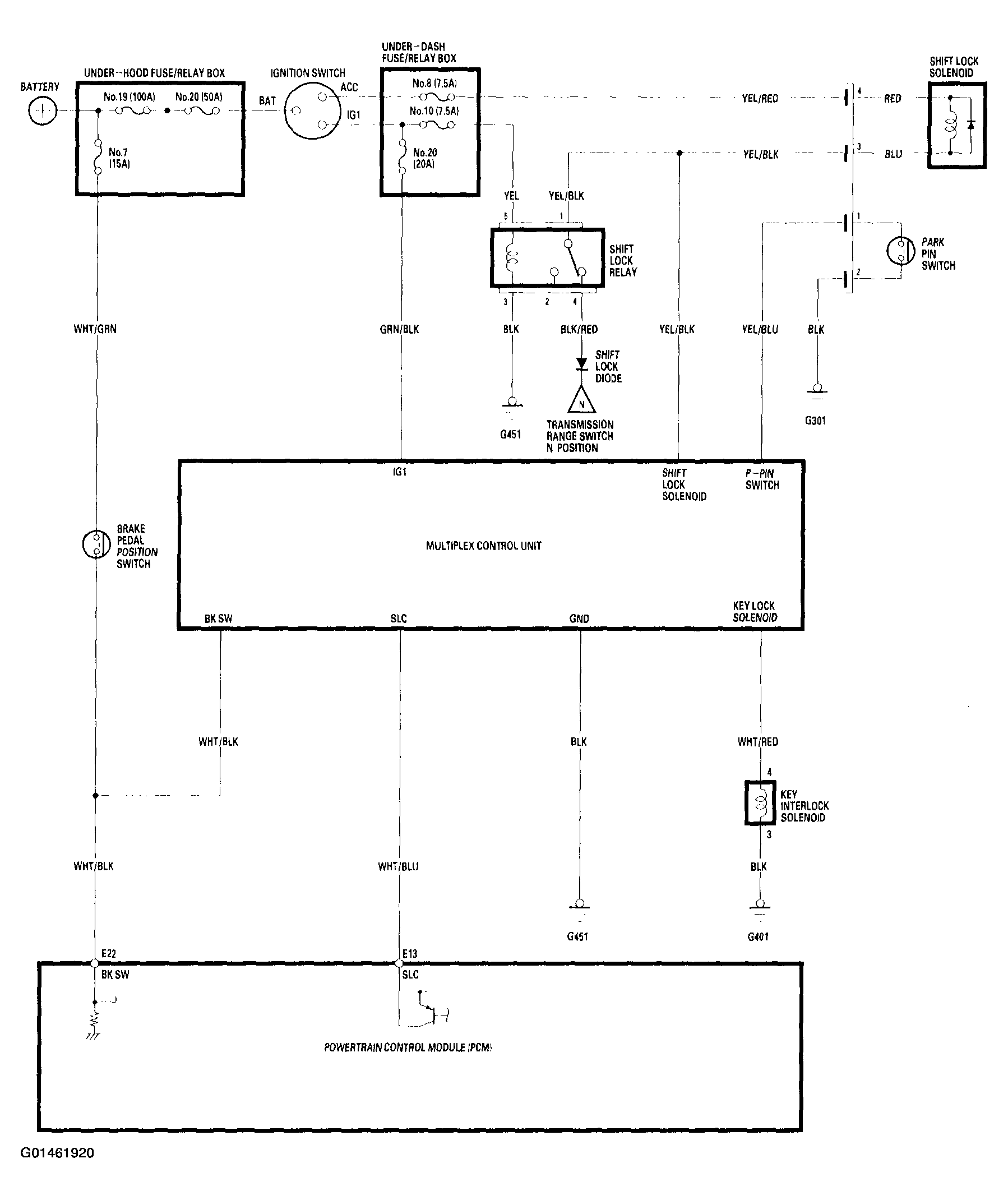

Fig 1: A/T Interlock System Circuit Diagram

G01461920

Courtesy of AMERICAN HONDA MOTOR CO., INC.
