ECT Sensor Replacement

  1. Remove the air cleaner (see AIR CLEANER ELEMENT REPLACEMENT ).
  2. Disconnect the ECT sensor 2P connector.
  3. Remove the ECT sensor (A).

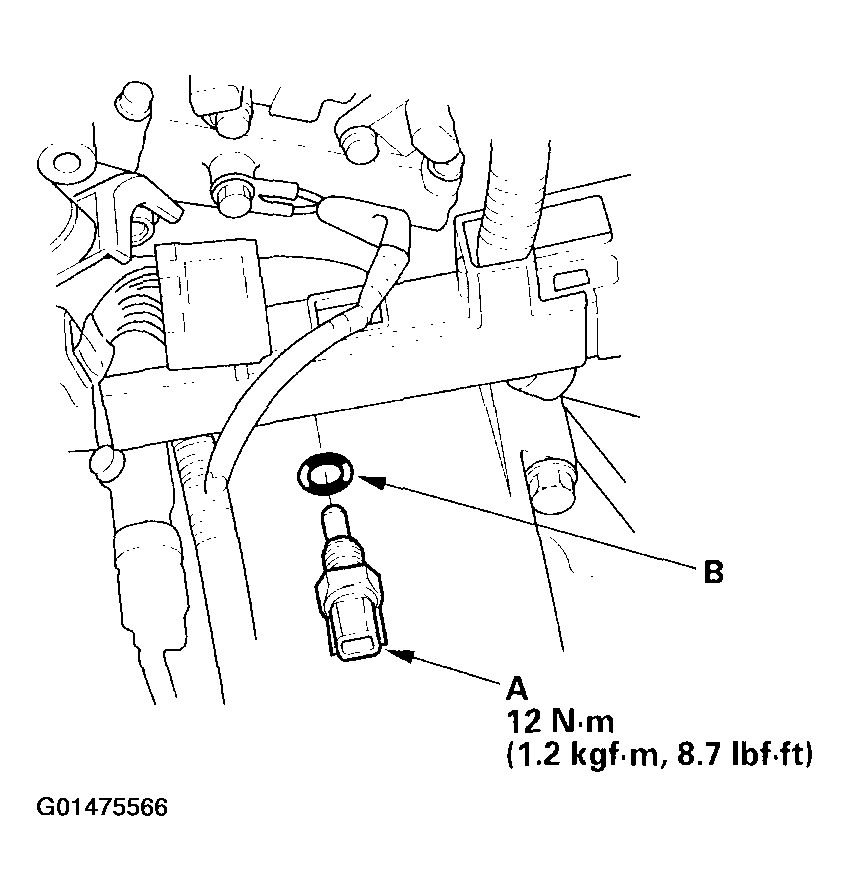

    Fig 1: Removing ECT Sensor
    G01475566Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the sensor in the reverse order of removal with a new O-ring (B).
