Air Cleaner Removal/Installation

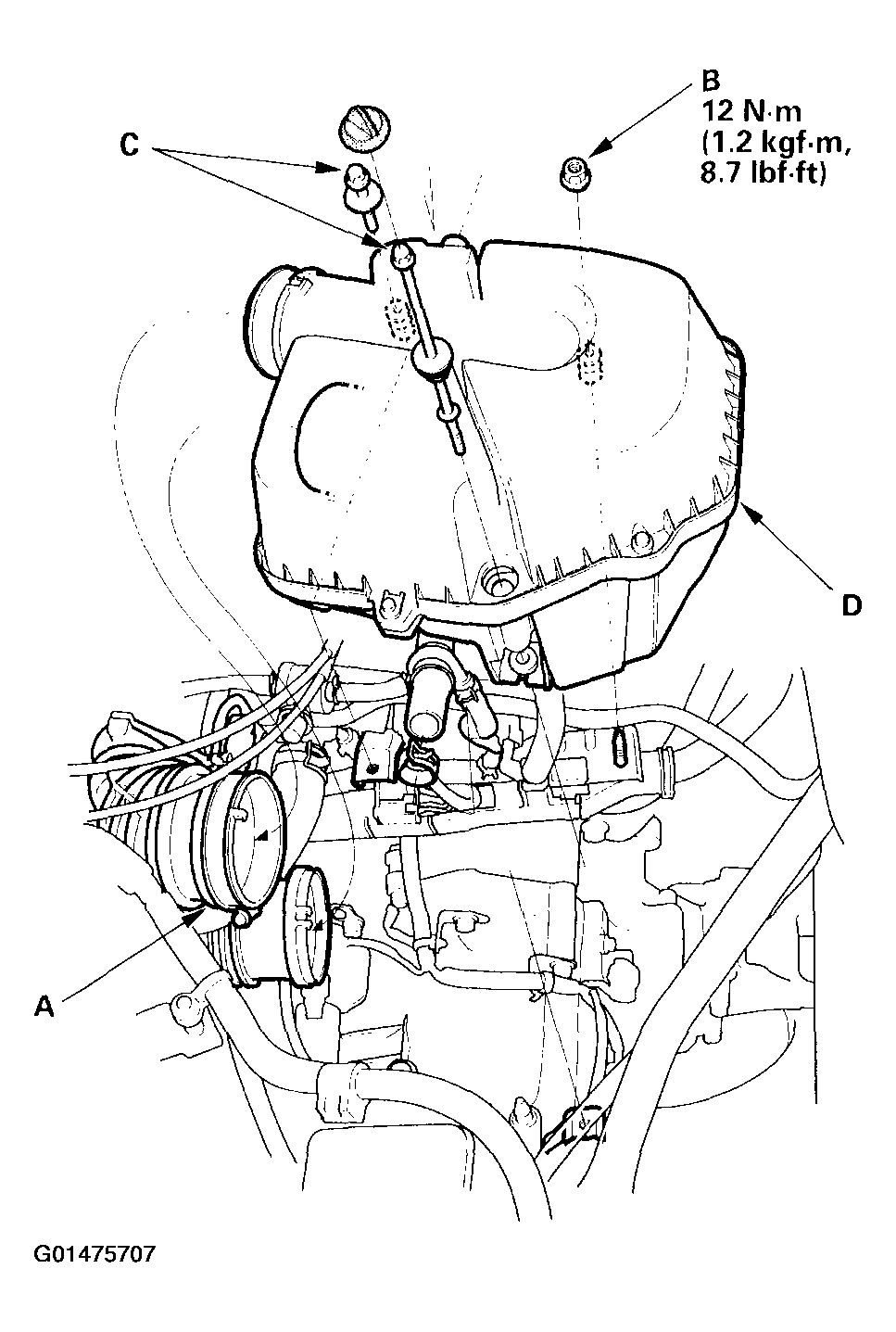

- Remove the clamp (A), the nut (B), and the bolts (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the air cleaner (D).
- Install in the reverse order of removal.
