Air Cleaner Element Replacement

  1. Remove the PCV hose (A). Open the air cleaner housing cover (B).

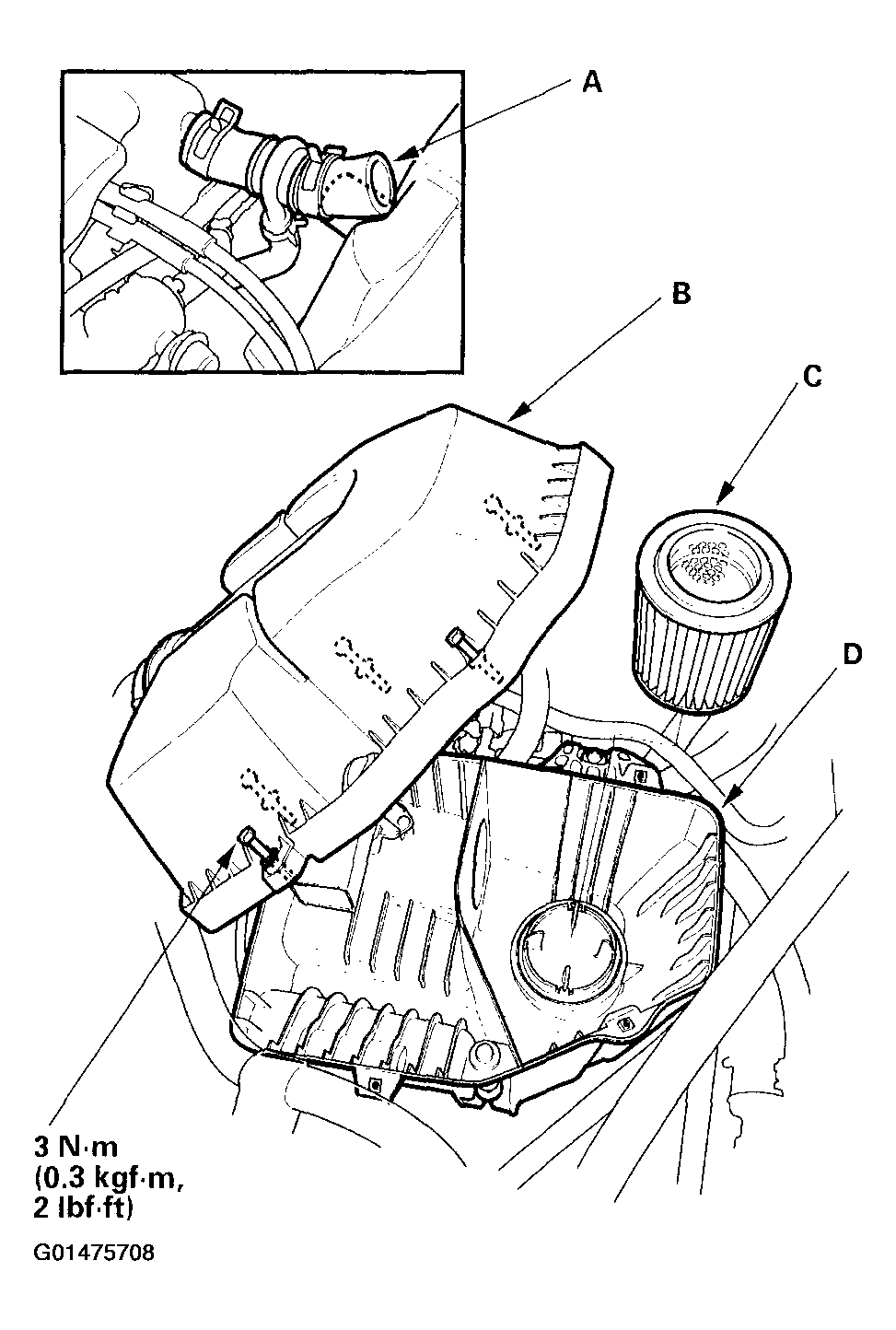

    Fig 1: Removing PCV Hose & Opening Air Cleaner Housing Cover
    G01475708Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (C) from the air cleaner housing (D).
  3. Install in the reverse order of removal.
