Connector Locations

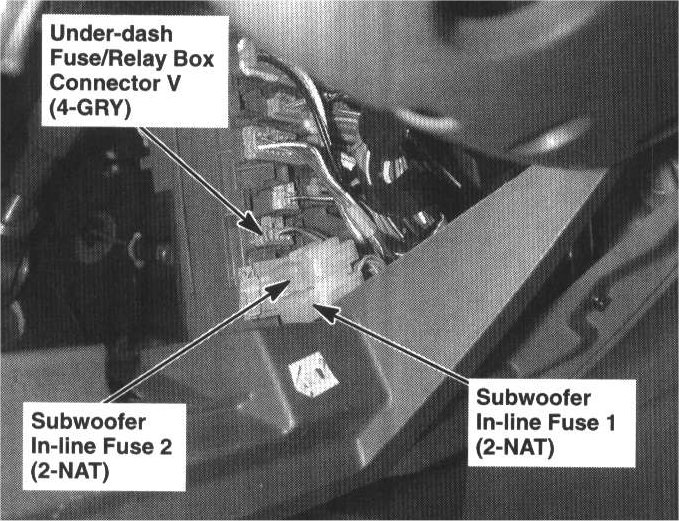

49. Under Left Side of Dash (Honda Accessory):

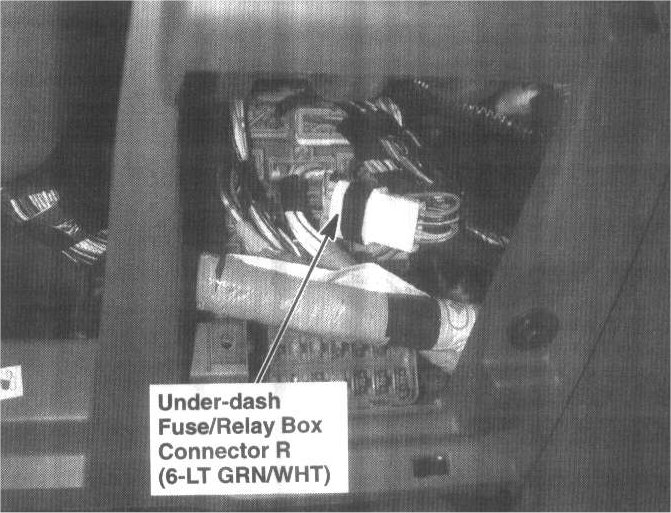

54. Under Left Side of Dash (A/T: Honda Accessory):

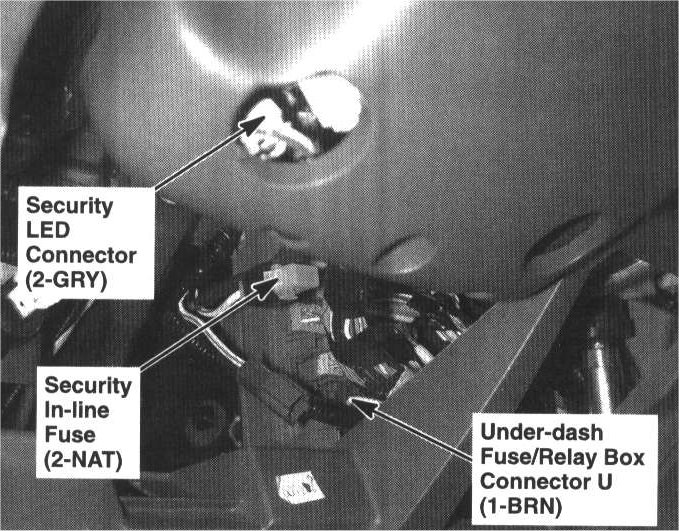

55. Under Left Side of Dash (Honda Accessory):

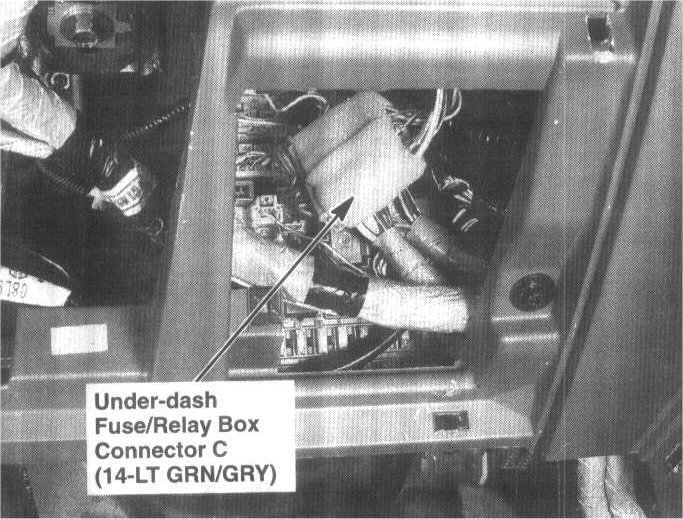

56. Under Left Side of Dash (Honda Accessory):

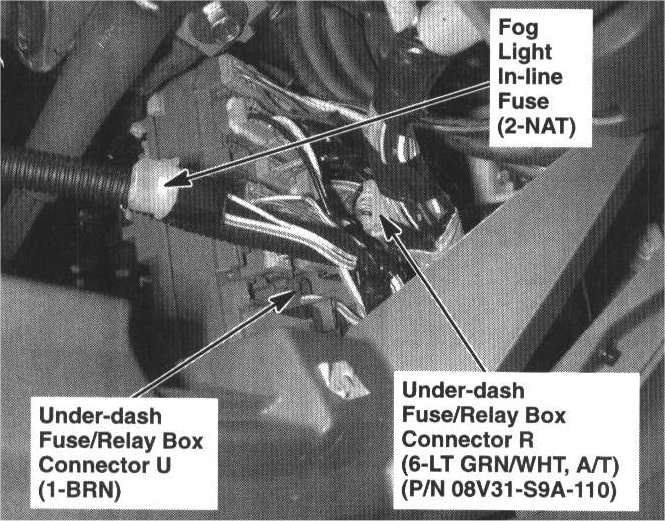

57. Under Left Side of Dash (USA: Honda Accessory):
