Home >> Honda >> 2003 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cooling System >> Thermostat, Engine Cooling

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

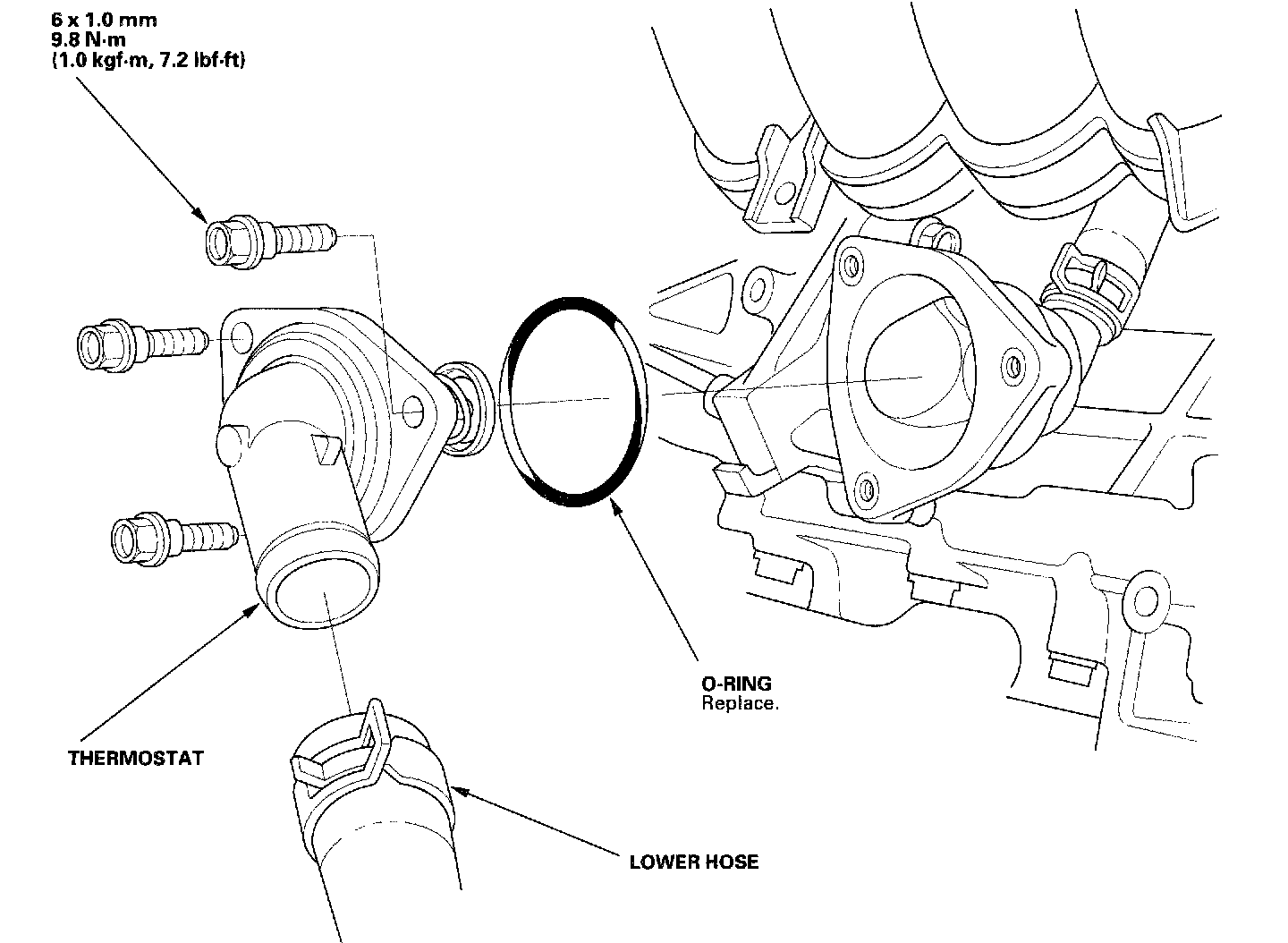

Thermostat, Engine Cooling
