Navigation Module

184. Navigation Sub Display Unit (EX-L: Navigation):

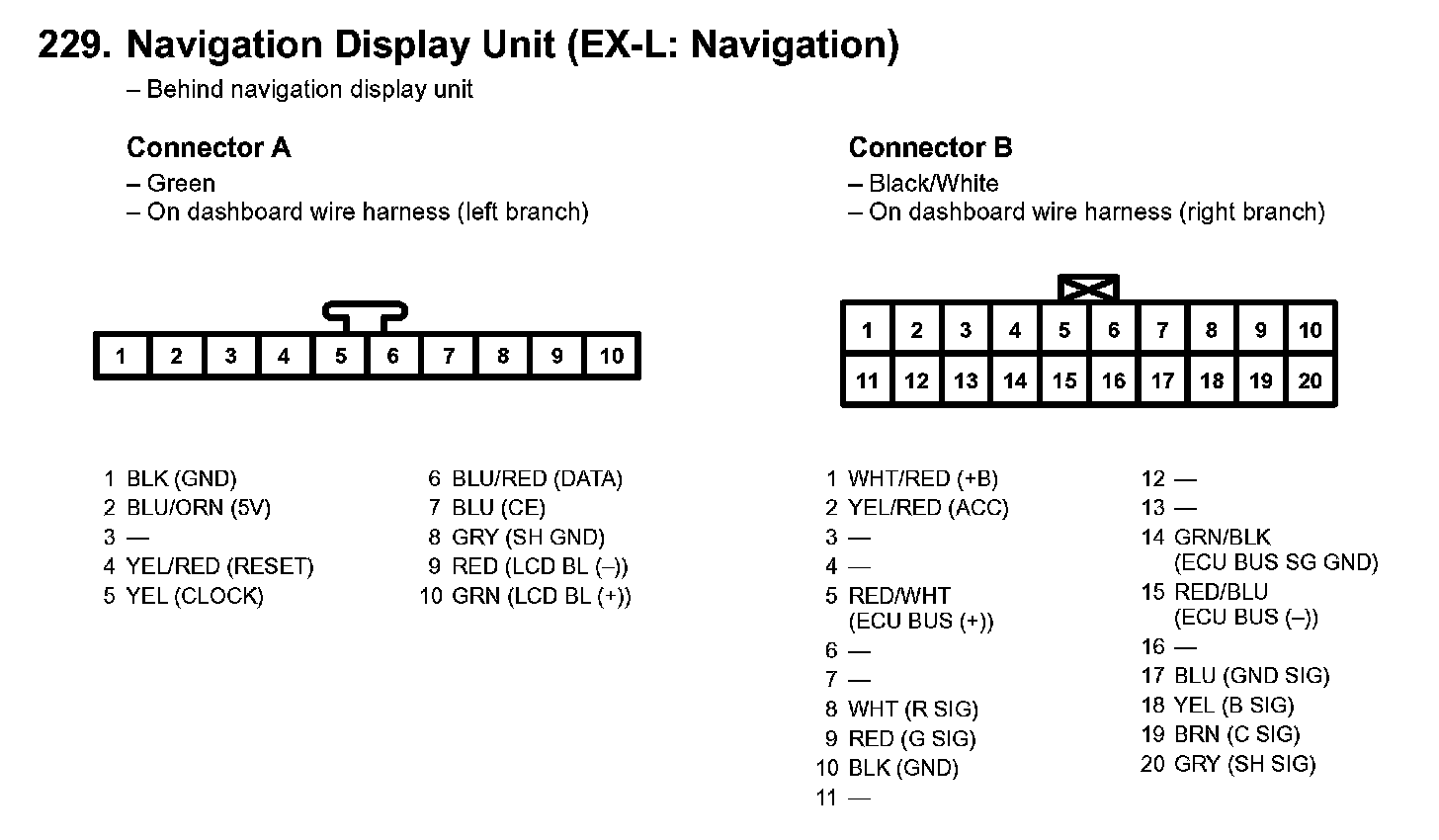

229. Navigation Display Unit (EX-L: Navigation):

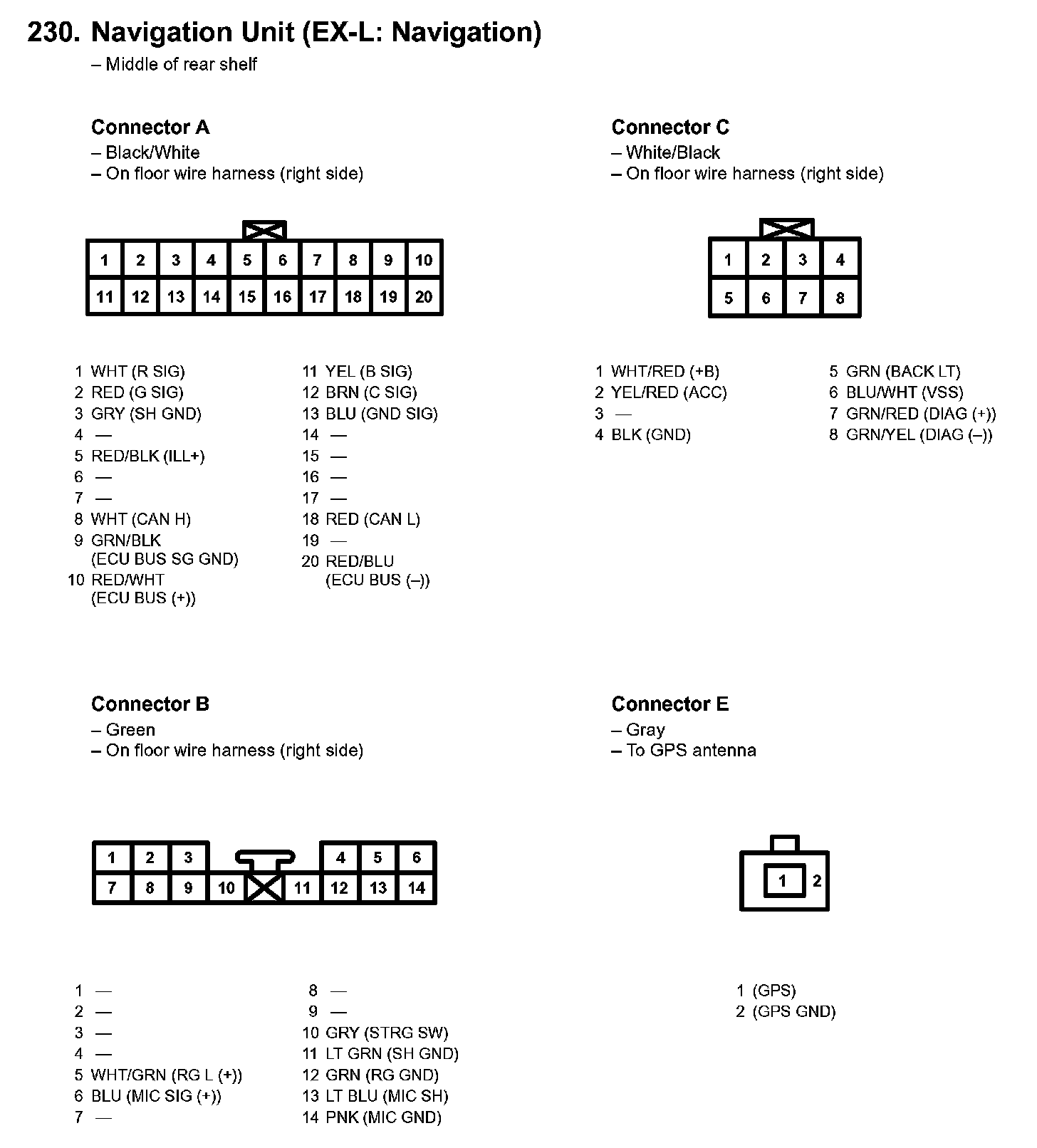

230. Navigation Unit (EX-L: Navigation):
