Power Mirror/Manual Mirror Replacement

Power Mirror/Manual Mirror Replacement

NOTE: The 4-door model is shown, the 2-door model is similar.

1. Lower the door glass fully.

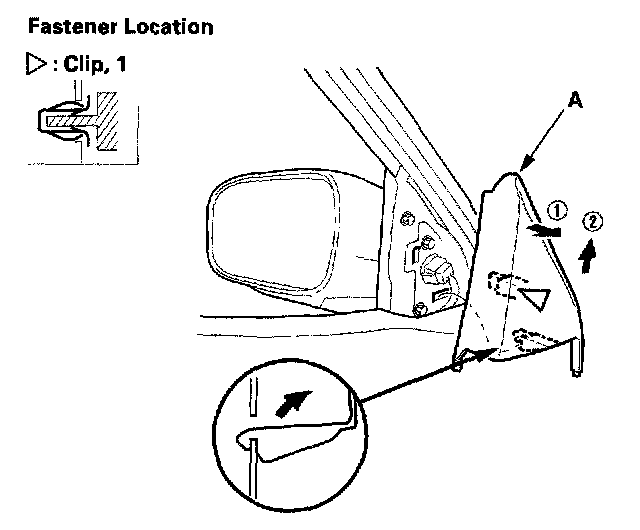

2. Carefully pry out the mirror mount cover (A) by hand in the sequence shown.

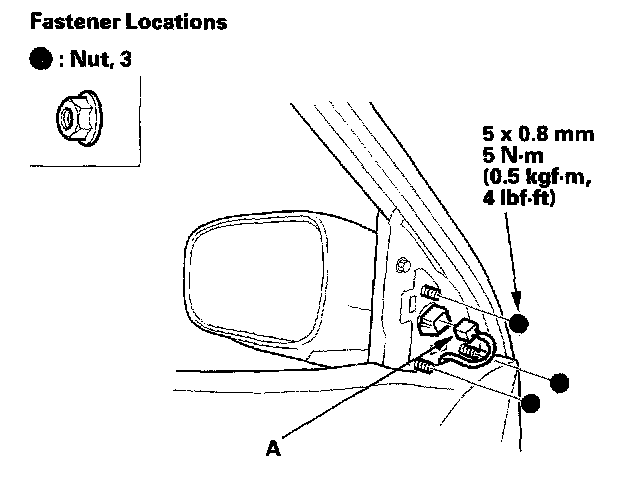

3. On power mirror model. Disconnect the connector (A).
4. While holding the mirror, remove the nuts securing the mirror, and remove the mirror (manual mirror model).

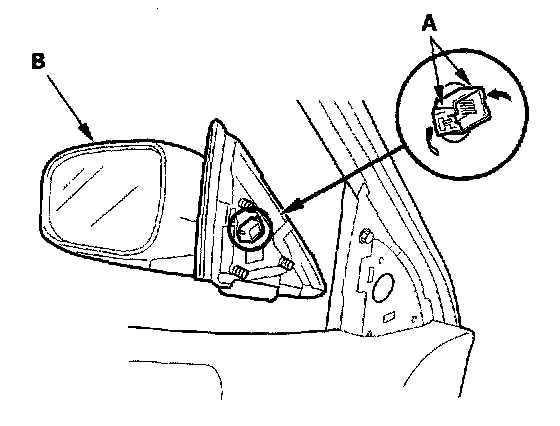

5. On power mirror model: While holding the mirror, push in on the connector clip (A), then push out to remove the mirror (B). Take care not to scratch the door.
6. Install the mirror in the reverse order of removal, and make sure the connector is plugged in properly (power mirror model).
