Diagnostic Trouble Codes Troubleshooting Index

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

To retrieve the DTC, you must run the self-diagnosis function (see General Troubleshooting Information  ). In the case of multiple problems, the respective Indicator segments will come on. If Indicator segments A, C, E, G, I, and L come on at the same time, there may be an open circuit in the common ground wire of the sensors.

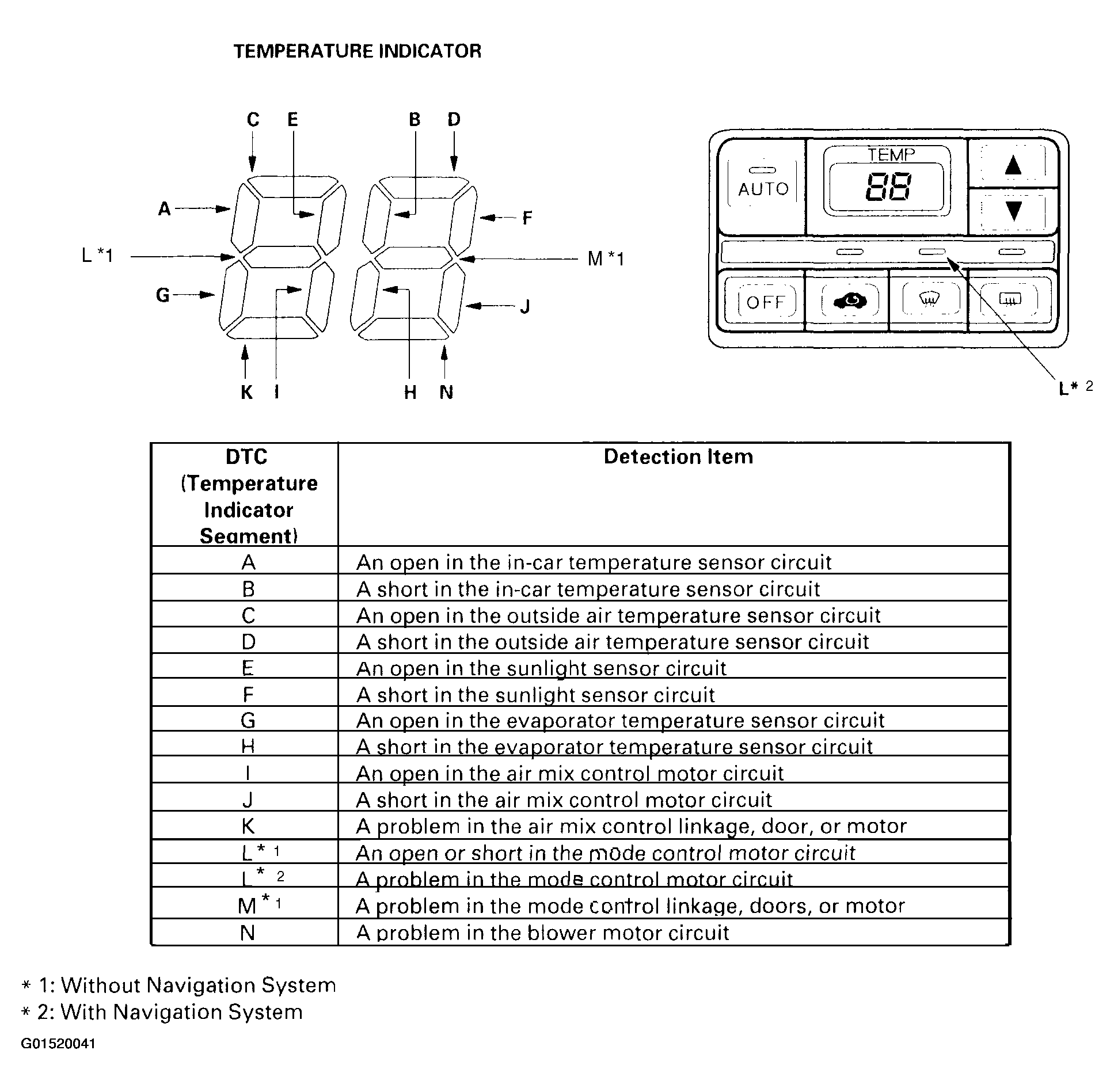

Fig 1: DTC Troubleshooting Chart
G01520041Courtesy of AMERICAN HONDA MOTOR CO., INC.
