Honda
>>
2002
>>
CR-V LX, 2.4 RD6
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition System
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

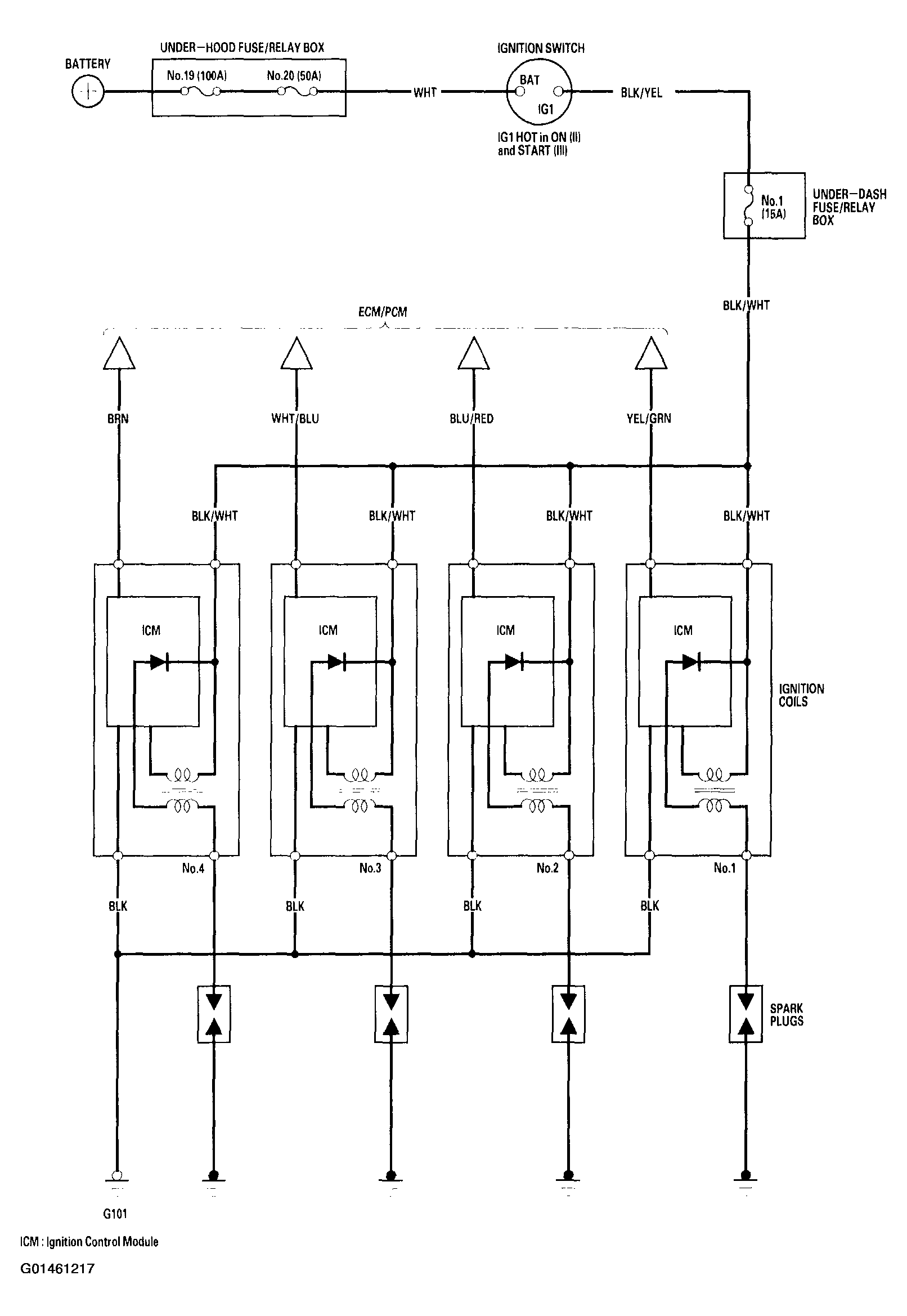

Fig 1: Ignition System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
