Servo Body: Notes

CAUTION: When disassembling valve body, place components in order and mark spring locations for reassembly reference.

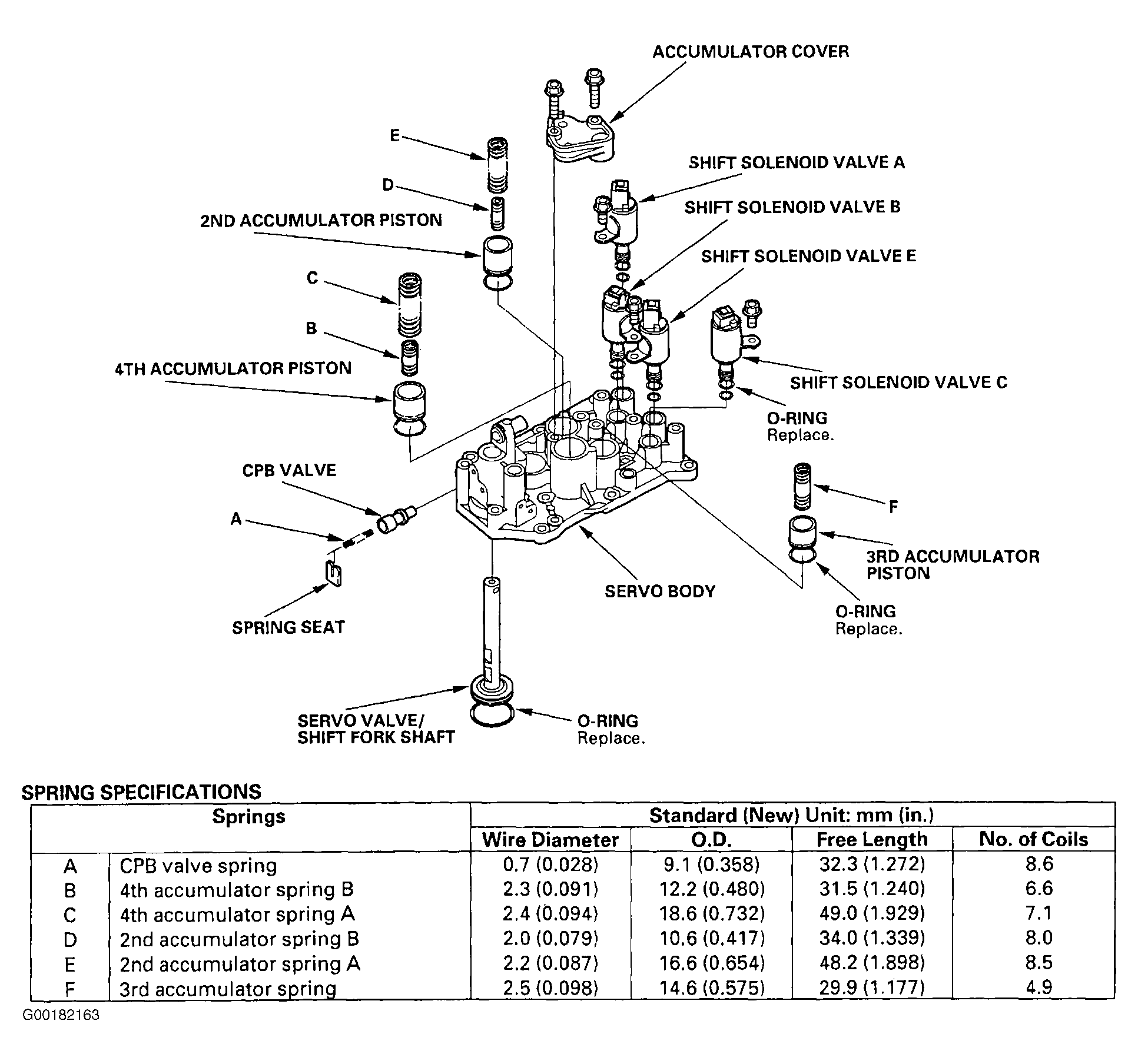

NOTE: To assist in disassembly of component, see Figure .
