Main Valve Body: Notes
CAUTION:
When disassembling main valve body, place main valve body components in order and mark spring locations for reassembly reference. Note direction of valve cap installation before removing from main valve body.
NOTE:

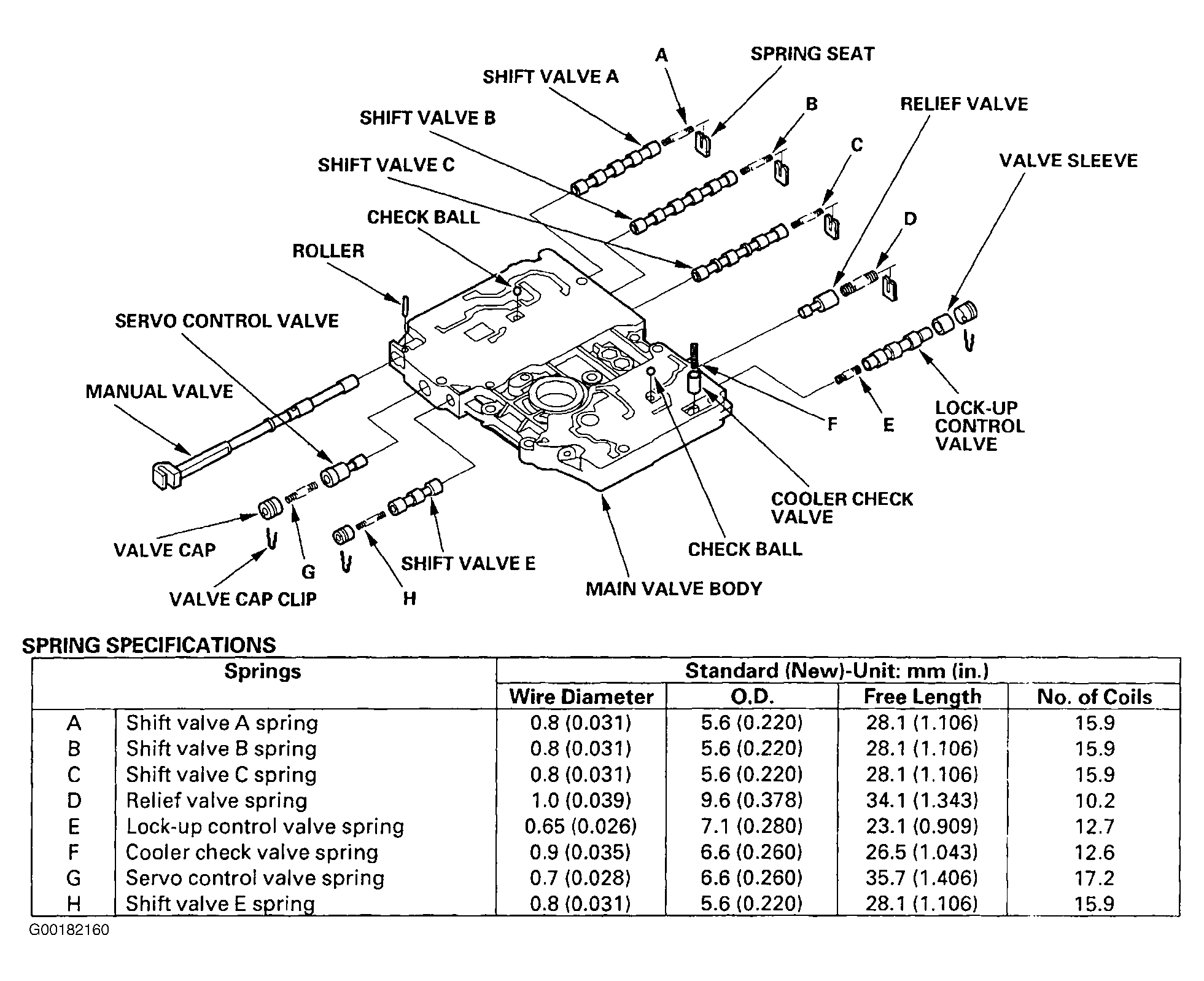

To assist in disassembly of component, see Figure
.
