Abs Indicator Circuit
See
Fig 1
and
Fig 2
for trouble shooting flow charts.

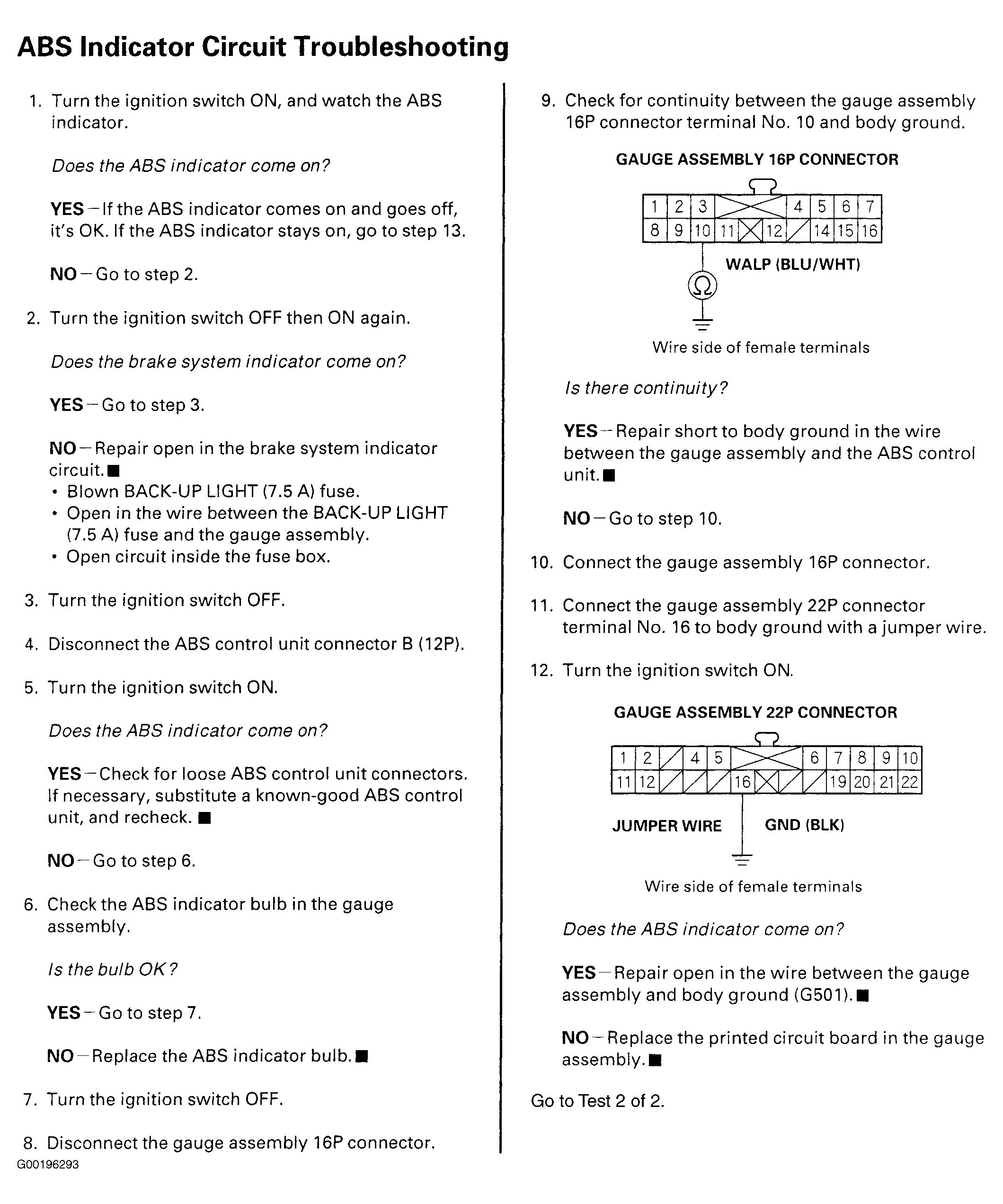

Fig 1: ABS Indicator Circuit Trouble Shooting Flow Chart (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

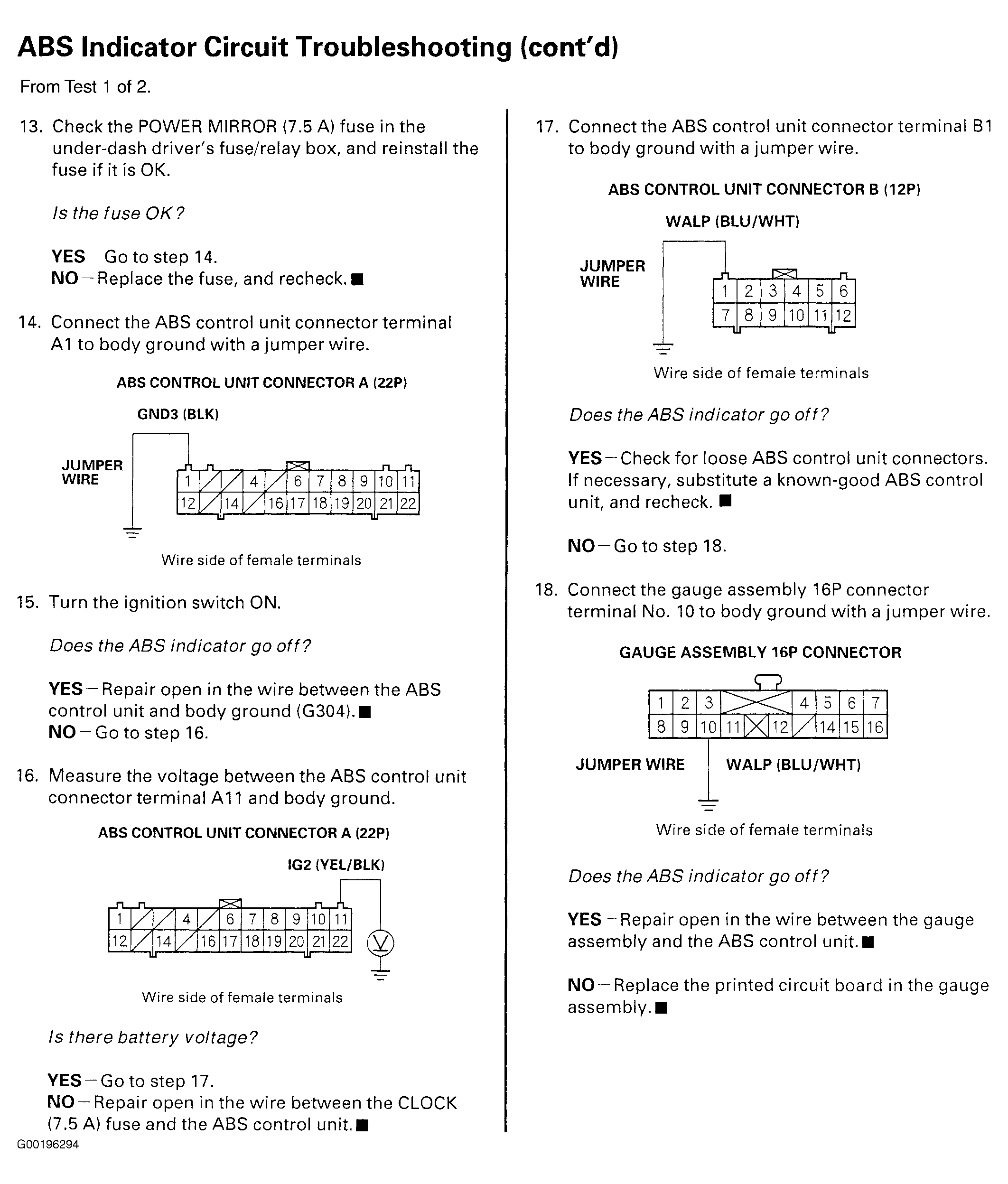

Fig 2: ABS Indicator Circuit Trouble Shooting Flow Chart (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
