Map Light: Service and Repair

Ceiling Light/Spotlights Test/Replacement

1. Turn the ceiling light/spotlights switches OFF.

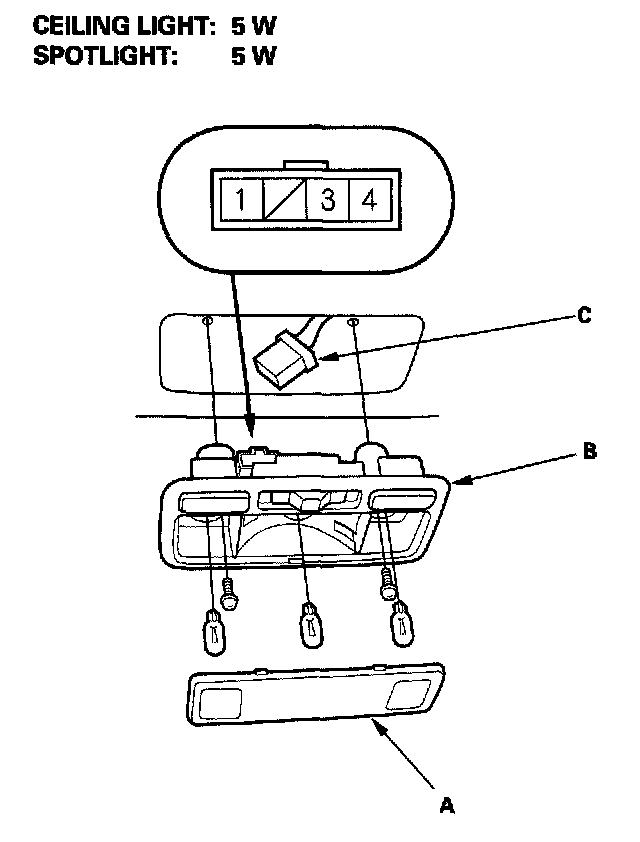

2. Carefully pry off the lens (A) with a small screwdriver.
3. Remove the two screws and the housing (B).
4. Disconnect the 4P connector (C) from the housing.

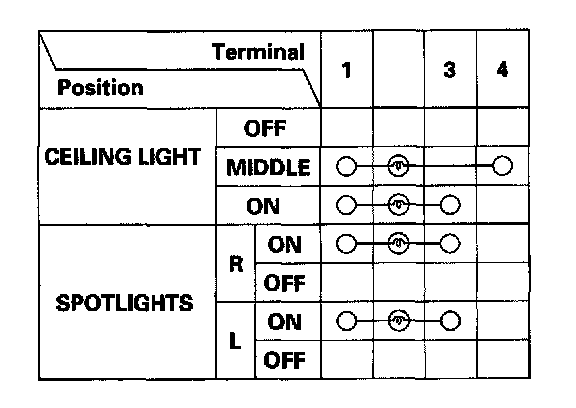

5. Check for continuity between the terminals in each switch position according to the table.
6. If the continuity is not as specified, check the bulbs. If the bulbs are OK, replace the light.
7. When installing the ceiling/spotlights housing, if the thread in the ET screw is worn out, use an oversized ET screw made specifically for this application.
