A/C Line Replacement

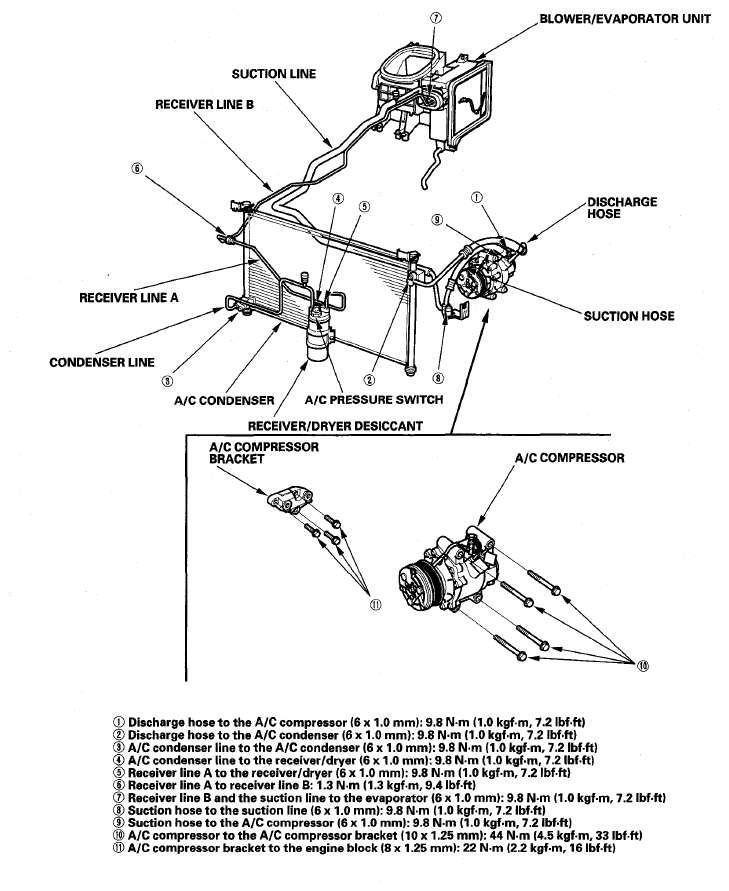

Fig 1: A/C Line Replacement Components With Torque Specifications
G06232215Courtesy of AMERICAN HONDA MOTOR CO., INC.
