ECM Inputs and Outputs at Connector C (31P)

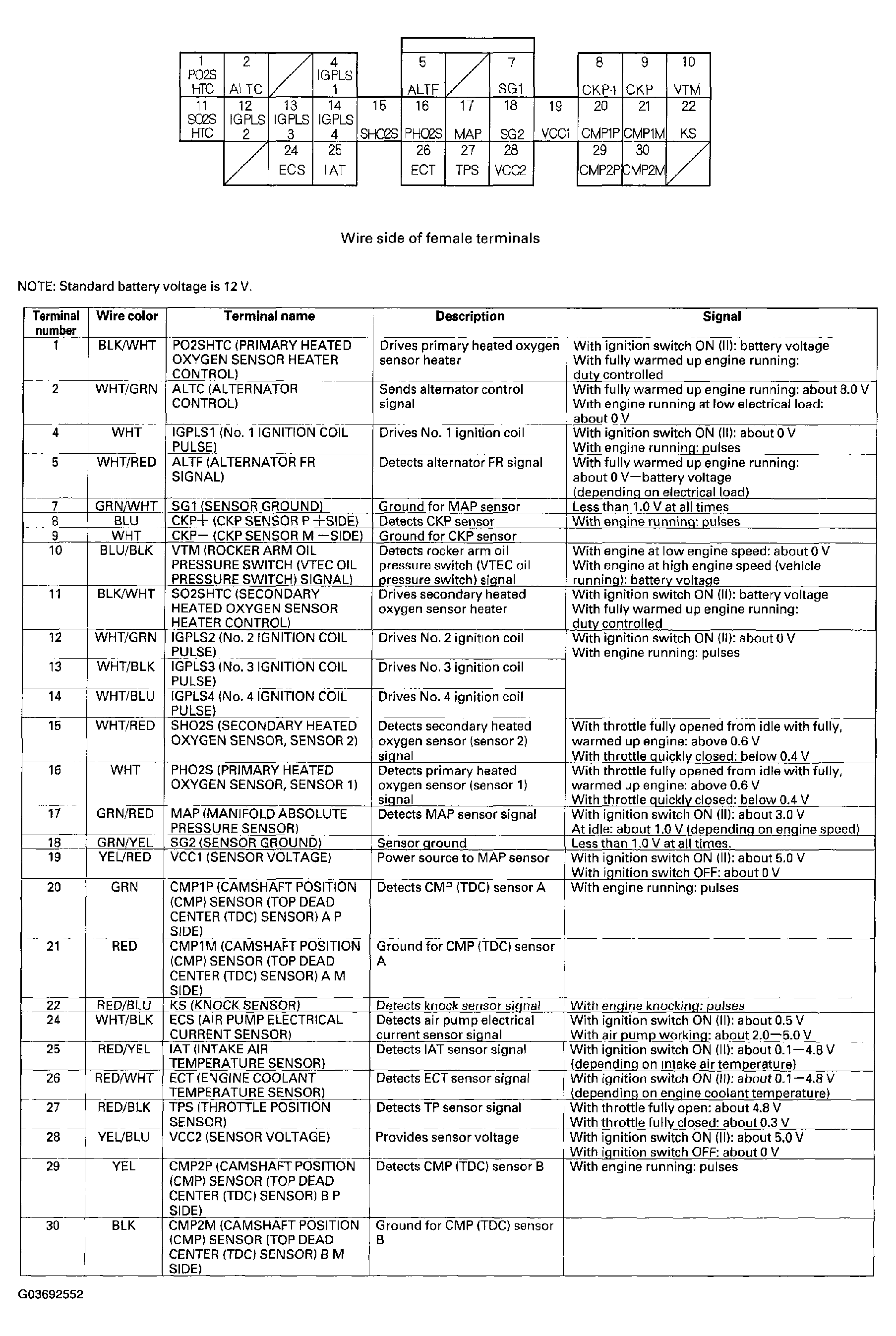

Fig 1: Identifying ECM Inputs And Outputs At Connector C (31P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
