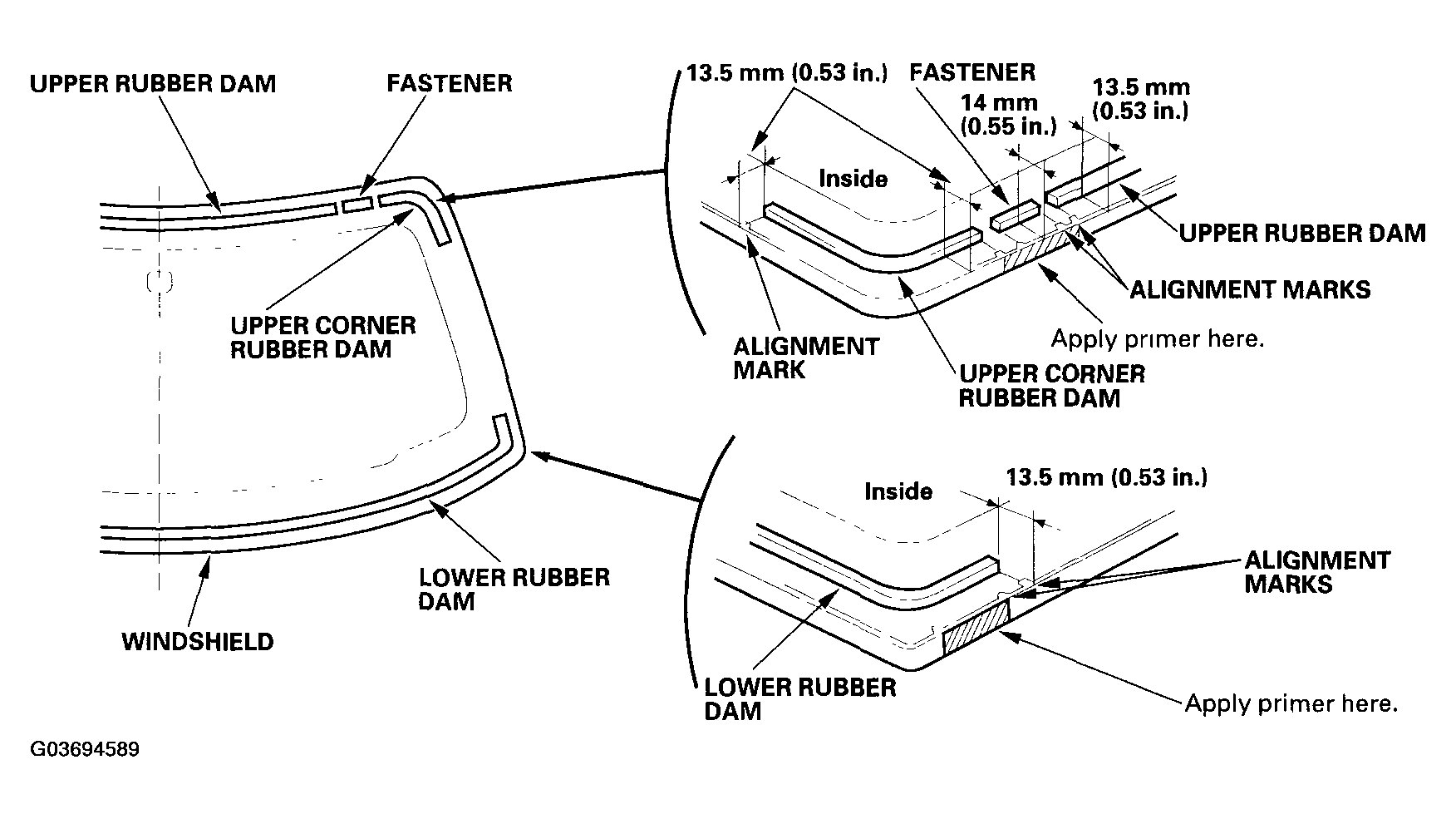

Rubber Dams and Fastener Installation, and Primer Application
- Be sure the rubber dams and fasteners line up with the alignment marks.
- Attach the rubber dams and fasteners with adhesive tape.
- To attach the molding, apply primer to the areas between the alignment marks of the windshield.
Rubber dam adhesive tape: Thickness 0.16 mm (0.006 in.)
Fastener adhesive tape: Thickness 0.4 mm (0.016 in.)
